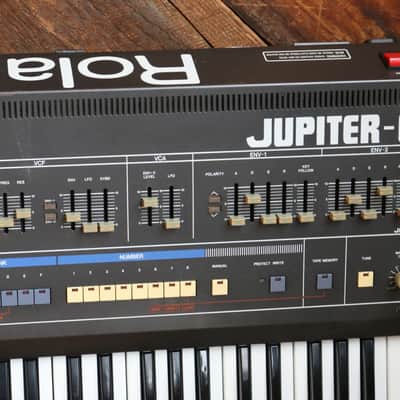

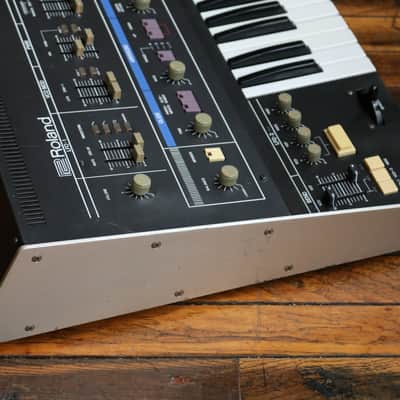

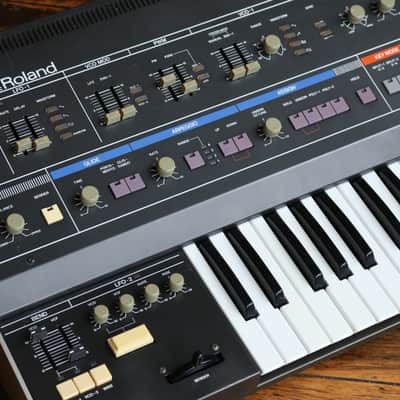

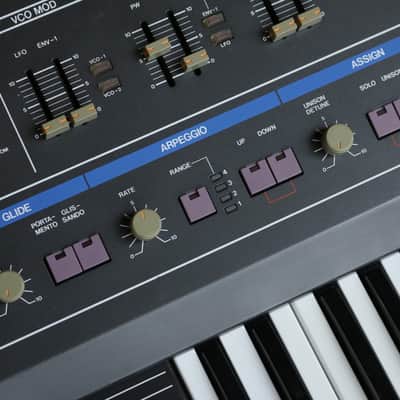

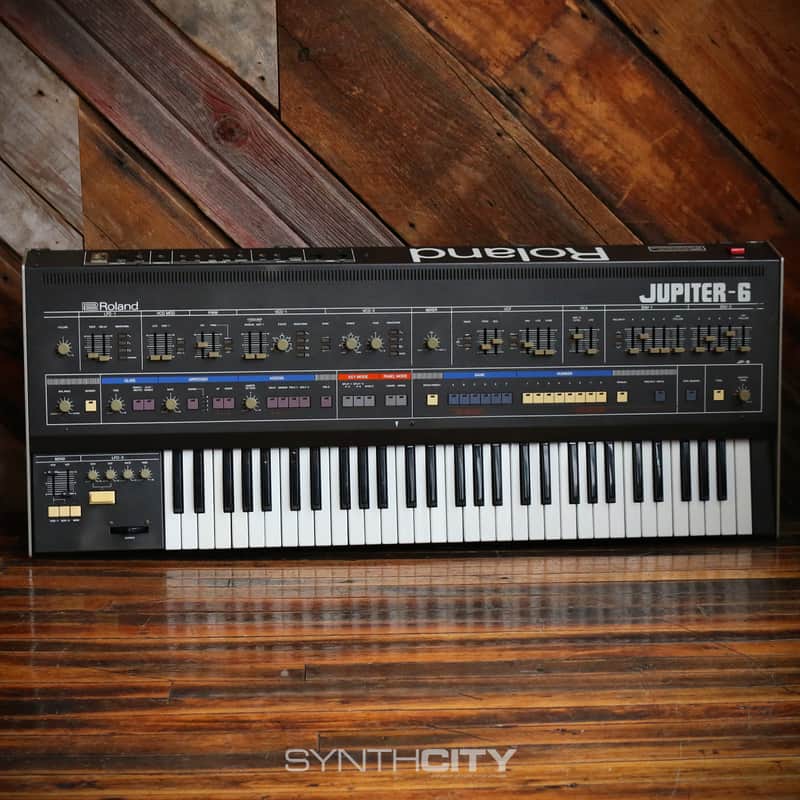

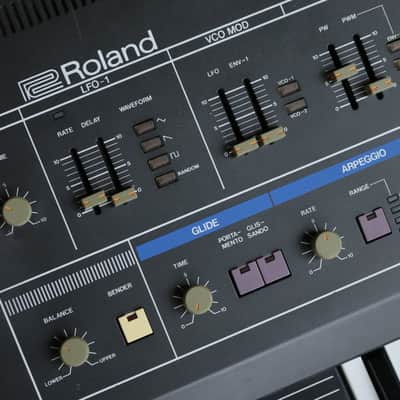

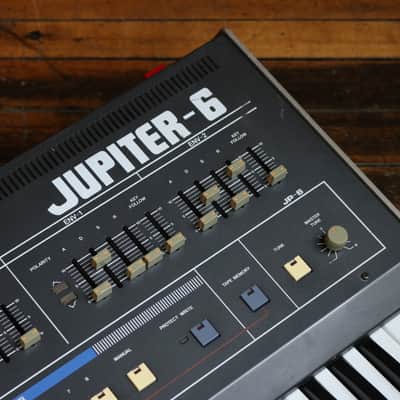

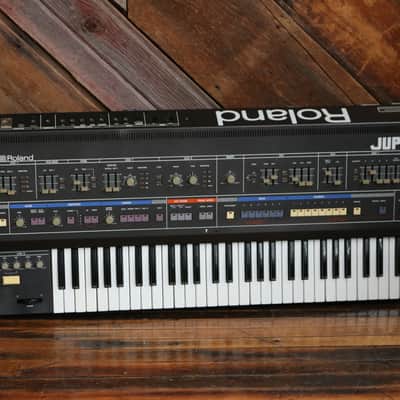

1983 Roland Jupiter 6 (Serial No. 322327)

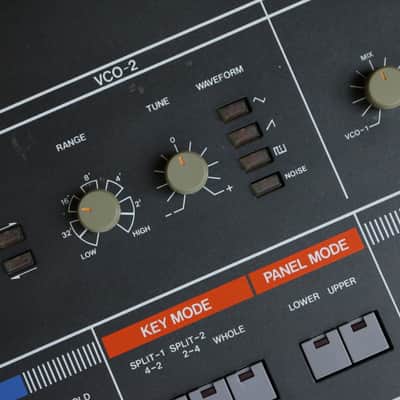

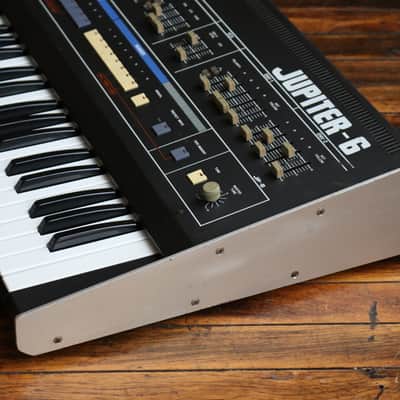

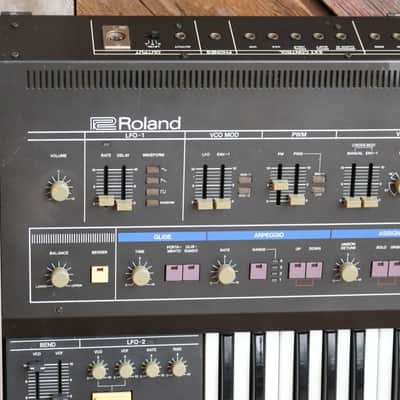

The Jupiter 6 is a fantastic analog polysynth that's a little bit of an underdog compared to its siblings the 4 and the 8! However, it is very powerful and is likely overlooked due to the immense fame of the others. Its a dual VCO 6 voice with cross mod capabilities, sync, and triangle, square and saw waveforms. The filter section includes standard low pass but also band pass and high pass operation. The filter envelope routing is not preset so envelope 1, 2, or both can be assigned to control the it! The LFO section is fully featured including a random output and onset delay. Of course there is full preset saving and plenty of performance oriented controls. The one downside is that it does not include chorus or ensemble like many of the other Roland polys! It does have the coolest color scheme and those futuristic aluminum sides though. The external analog ins include arpeggiator clock in, patch shift, pedal hold and CV for the VCA and VCF. Of course it has MIDI as well so there is tons of interfacing available.

This synth is in great working condition and was just serviced by our in house technician.

Service notes:

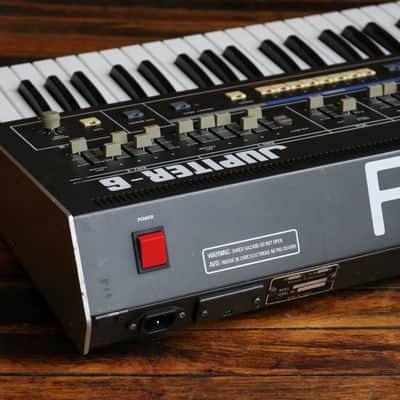

Power Supply: Refurbished power supply and replaced electrolytic capacitors on power supply pcb, Replaced 2-pole AC input with IEC connector, calibrated.

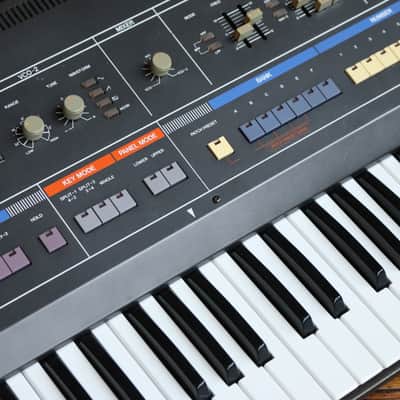

Panel: Removed panel PCBs and cleaned all controls and switches, replaced panel pcb dust covers, Cleaned chassis and knobs.

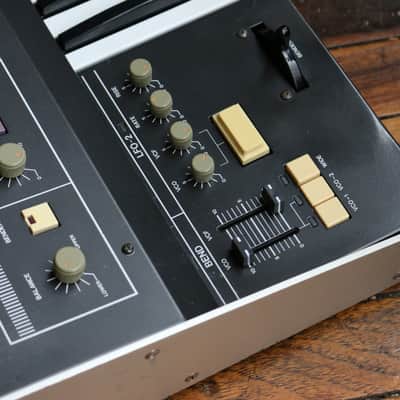

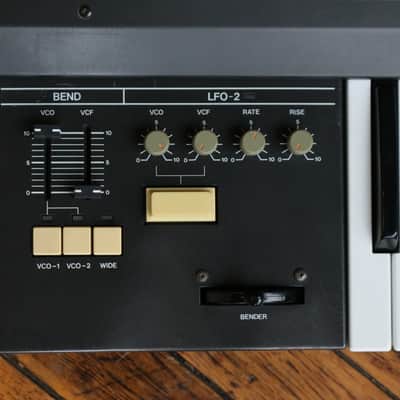

Bend Assembly: Removed bend PCB and cleaned all pots and faders, disassembled and cleaned modulation tact switch, replaced fader dust panels. Replaced bender rest and stop gromets, cleaned chassis and knobs.

Keybed: Cleaned buss bars and key contacts, cleaned all keys, removed and replaced key contact grease, replaced (9) keys that were cracked at pivot point.

CPU board: replaced internal memory battery and reloaded presets, cleaned pin headers.

Module boards: Cleaned pin headers, calibrated module PCBs

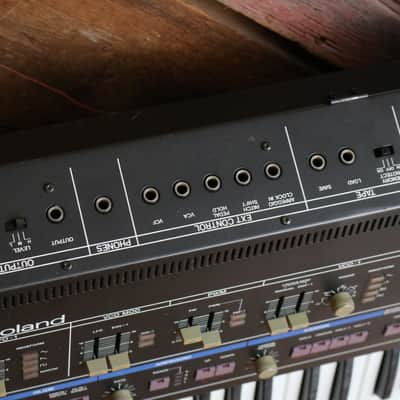

Interface: Cleaned level and memory protect switches, re-soldered output and interface connectors

Testing: After several hours bench testing rechecked and fine tuned all calibration.

Note: Firmware version "A-6", (2) fader knobs on bender assembly are from a JUNO-106, one of the screws on side panels are not original.
