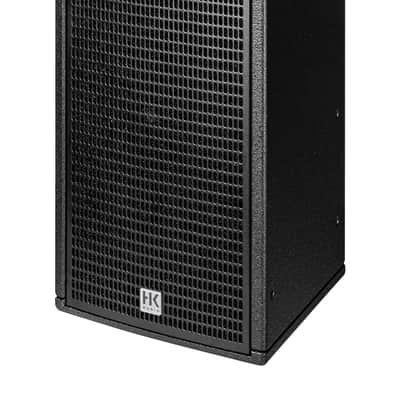

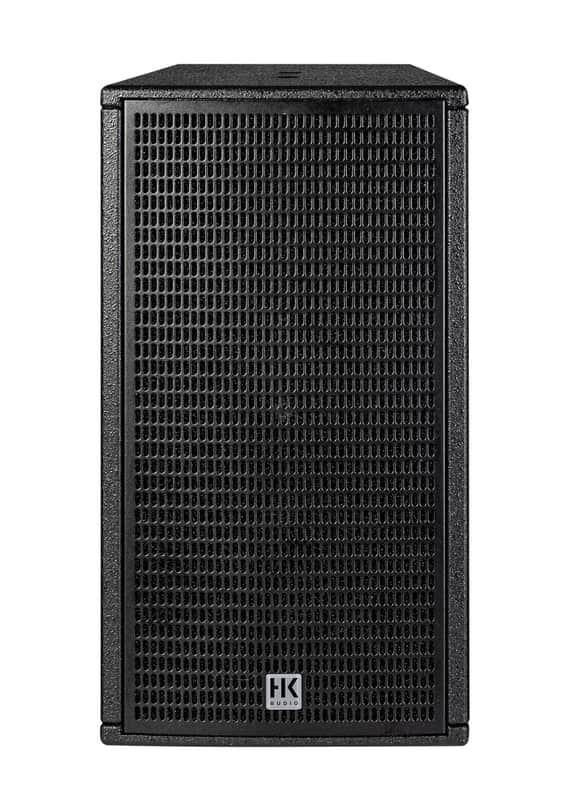

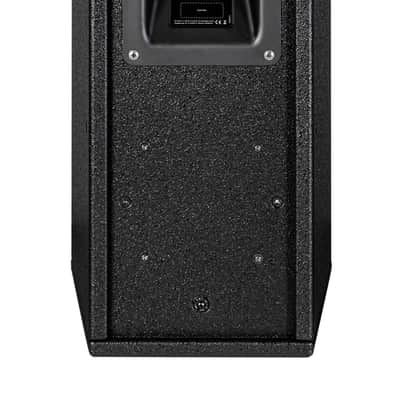

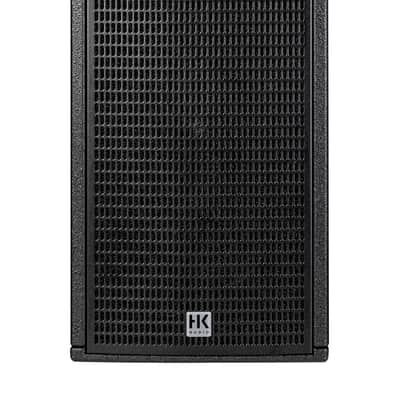

HK Audio HK FINEO-FO-8-BLK 400 Watt 8" Install Speaker. Black

LIMITED QUANTITY

Prices and availability subject to change without notice.

The compact FINEO FO?8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet. With its 8? cone speaker with 1.75? voice coil, the FO?8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers. The BEM-optimized constant directivity horn with the powerful 1? compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings. The horn can be rotated, meaning that the FO?8 can be used upright, on its side or with altered horizontal and vertical dispersion. The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.

Concept: Passive 2-way mid/high unit

Cabinet principle: Bass reflex

Power handling RMS: 200 W

Power handling program: 400 W

Power handling peak: 800 W

Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms

Max. SPL average (1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space): 116 dB

Max. SPL peak (1 m, 10 % THD @ 3.3 kHz, full space: 119 dB

Sensitivity 1 W/1 m (80 Hz - 20 kHz, full space): 91 dB

Crossover frequency: 3.2 kHz

Frequency range -6 dB: 72 Hz - 20 kHz

Frequency range -10 dB: 69 Hz - 20 kHz

Dispersion angle -6 dB (horizontal x vertical): 80° x 60°

Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)

IP protection class (EN 60529): not specified

Low-/mid frequency: 1x 8" Sica cone speaker with ferrite magnet and 1.75" voice coil

High frequency: 1 x 1" Sica compression driver with ferrite magnet and 1" voice coil

Crossover: High pass: 18 dB/octave, low pass: 18 dB/octave

High frequency protection circuit: Self-healing PTC fuse

Horn: BEM-optimized constant directivity horn, rotatable

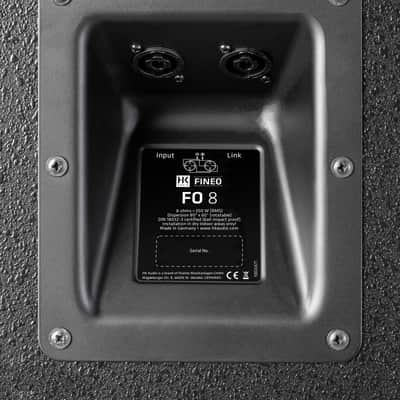

Input : 1 x NL4 Speakon

Output/parallel output: 1 x NL4 Speakon

Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)

Lab.Gruppen: IPX

LEA Professional: Sharkware

Filter specifications in tabular form for frequency response equalization Without limiter specifications: BiampTesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix

Mounting points: 2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M4 rear

Cabinet material: MDF

Cabinet surface: 1-component acrylic enamel

Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

Front grille: Steel front grille with anticorrosive coating, backed acoustic foam

Optional accessories: U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size S for VESA MIS-D, 100 x 100 mm), AP-8

Rear hole pattern: VESA MIS-D (100 x 100 mm
