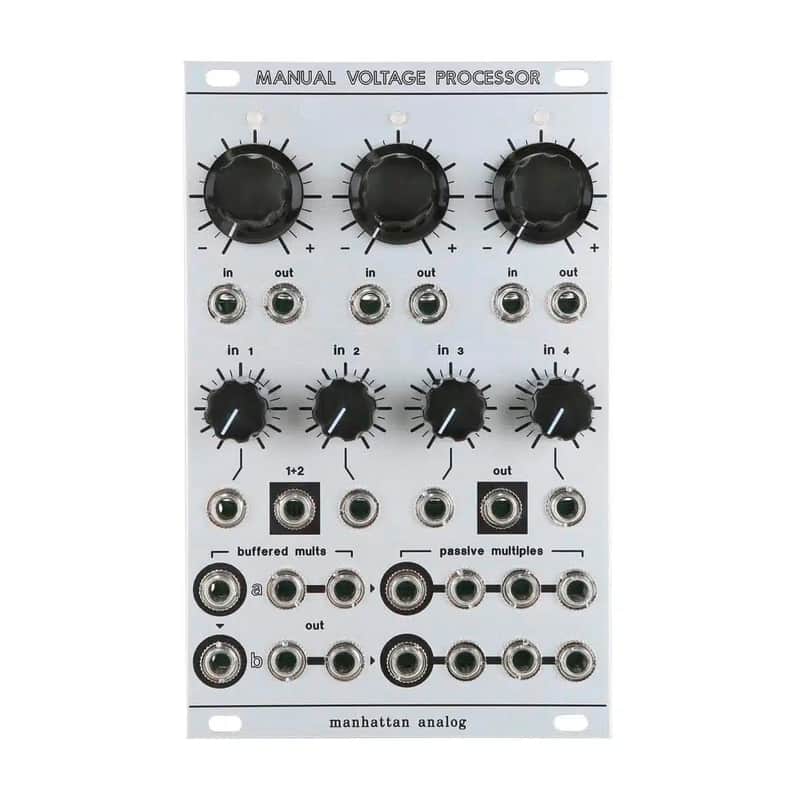

Manhattan Analog MVP (Ex-Demo)

Manual Voltage Processor

• 3 Bi-polar Attenuverter/Offsets
• 4 Input Mixer or Two Independent 2 Input Mixers
• Two Buffered Multiples
• Two Passive Multiples

Manual Voltage Processor is a multifunctional module for treating voltages. It contains 3 polarizers, a 4 channel mixer, 2 bufferend multiples and finally 2 passive multiples. - Polarizer: each channel has one input, one output, a control for scaling/inverting voltages and a LED to display the voltage. Each channel can be used as as offset generator, too. - Mixer: four channels. Due to two outputs it can be used as a 2:1 or a 4:1 mixer. - two buffered multiples: one input, two outputs. Input of mulitple A is normalized to input of multiple B. - two passive four-way multiples. Each one is normalized to an output of a buffered multiple.
