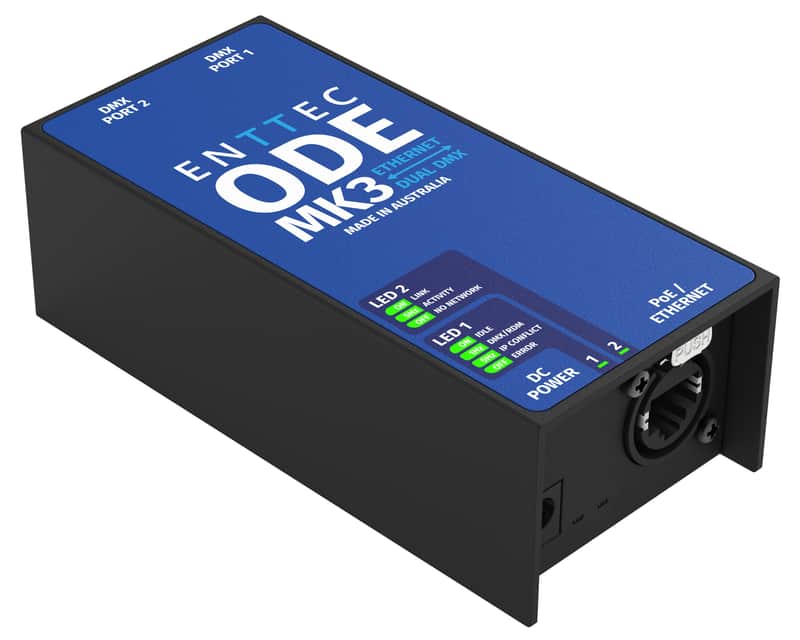

Mint Enttec 70407 USB DMX Interface

Enttec ODE MK3 Includes:

Enttec ODE MK3 Features:

Two bi-directional female 5-pin DMX ports with optional RDM (E1.20) support
IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input
Support for Art-Net 4, sACN and ESP to DMX conversion
Support for DMX ->Art-Net (Broadcast or Unicast) / DMX ->sACN (Multicast or Unicast)
Intuitive device configuration and updates through the inbuilt localhost web interface
10/100 Mbps network speed
‘Current Port Buffer’ allows live DMX values to be viewed in the web UI
Configurable DMX output refresh rate

Enttec ODE MK3 Specifications:

Connectors:
- 1 EtherCon Port (RJ45)
- 2 Bi-directional DMX (Female XLR5)
- 1 Power Input (DC Jack)
IP rating: IP20
LED indicators:
- Status indicator
- Network Link / Activity indicators
eDMX protocols:
- Art-Net: Art-RDM
- sACN: ESP
DMX protocols:
- USITT DMX512-A
- ANSI E1.20 RDM
DMX & RDM timings:
- Break time: 300ms
- Mark after Break (MAB): 15ms
Max. channels: 2 Universes (1024ch)
Max. refresh rate: 44FPS
Art-Net merging: 2 Sources
Configuration software: Web Browser
Firmware updates: Web Browser
Input voltage: 12V to 24V DC
Max. current craw: 580mA
Max. power draw: 7W
Power over Ethernet (PoE): IEEE 802.3af
Environmental operating temperature: 32°-122°F (0°-50°C)
Environmental operating humidity: 5 - 95% (non-condensing)
Body material: ABS Plastic
Unit dimensions: 129 x 58 x 40 mm
Unit weight: 0.22lbs (0.10kg)
Shipping dimensions: 235 x 159 x 69 mm
Shipping weight: 0.99lbs (0.45kg)
Warranty: 3-year return to base manufacturer warranty

Promoted similar listings

Condition	Mint (Used) Mint items are in essentially new original condition but have been opened or played.Learn more
Brand	Enttec
Model	70407
