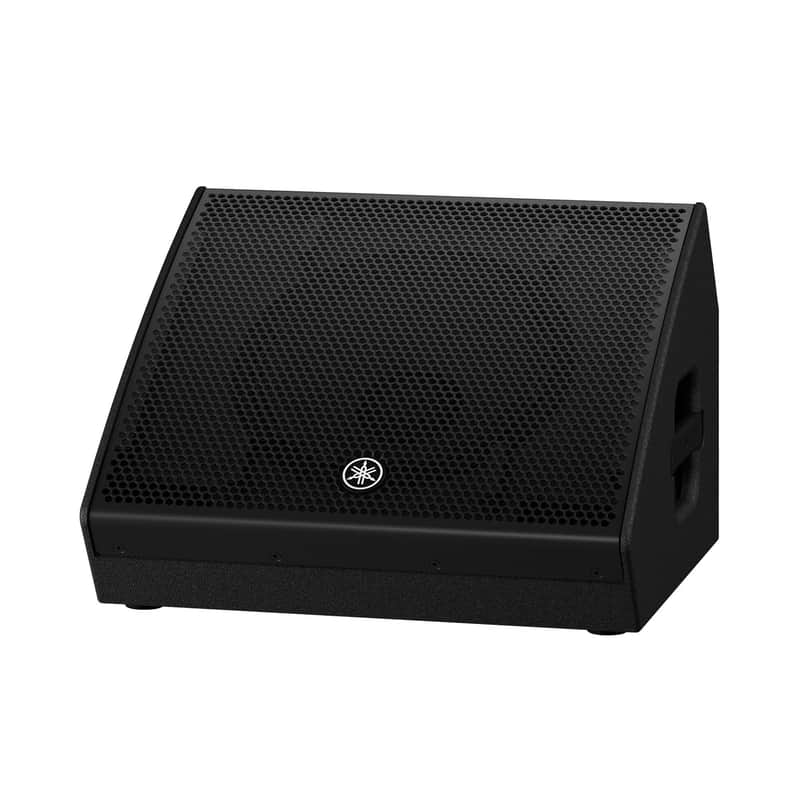

The DHR series delivers Legendary Yamaha audio performance and professional-grade features in a highly affordable loudspeaker. The 12-inch 2-way 1000W powered DHR12M features a coaxial design in a wedged enclosure, making it ideal for use as a floor monitor. It comes with a socket for pole mounting in situations with limited stage space.

The cabinet's bass-reflex design produces tight, powerful bass that belies its compact stature and is perfectly complemented by a custom-selected 1.75" high-frequency driver for impressive full-range coverage. And there's no external amp required because the DHR10 has an integrated 1000W Class-D amplifier to deliver all the power needed to make it sing.

With plywood construction similar to the high-end CZR series, the DHR12M produces powerful, clear audio with minimal vibrations. What comes out is what you put in. The cabinet's coaxial configuration yields ideal frequency and phase response for critical monitoring applications. Plus, the rugged polyurea finish will keep your cabinet looking good night after night.

Designed for performance, the CHR12M.

Yamaha DHR12M Applications:

• On stage performance monitoring

Yamaha DHR12M Features:

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Yamaha DHR12M Specifications:

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 55 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m): 129 dB SPL
• Components
  • LF: Diameter: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
  • HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
• Amplifier class: Class-D
• Power rating
  • Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
  • Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 74 W (1/8power), 18 W (Idle)
• Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Side x 1
• Pole socket: Φ35 mm x1 (Bottom)
• Rigging: N/A
• Floor Monitor Angle: 57°
• Dimensions
  • W: 500 mm (19.7")
  • H: 343 mm (13.5") (with rubber feet)
  • D: 454 mm (17.9")
• Net weight: 16.5 kg (36.4 lbs)
