Mint JBL CSA2300Z 2x 300W 2U Full-Rack Drivecore Amplifier, 70V/100V

Years of innovation, insight and invention from HARMAN brands have all combined to bring about the JBL® Commercial Series Amplifiers (CSA). Simple to configure, the CSA 2300Z amp delivers a DriveCore-based sound solution, replacing up to 500 parts with a single small chip, thus significantly reducing the part count while increasing reliability, and maintaining superb performance.

Crown DriveCore™ Technology

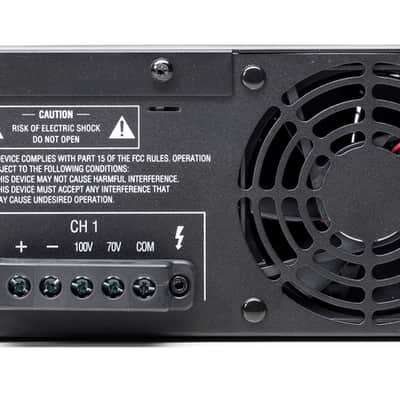

Going well beyond the expected in generating powerful sound, the performance efficiency of Crown’s DriveCore Technology continues to set the bar in commercial power amplifier technology. Supporting 70 V and 100 V installations right out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls (sold separately). And with HARMAN’s GreenEdge™ environmental initiative, this series of amps quickly pay for themselves in energy savings.

• Energy-efficient, Space-saving 2U design
• (2) output channels x 300 W output

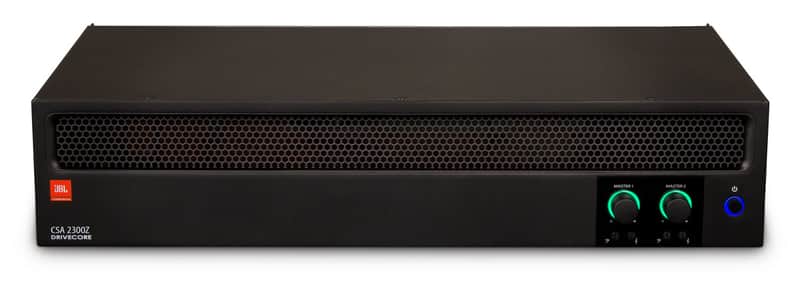

• Sleek industrial look with illuminated knob rings
• Supports JBL CSR-V wall controller (sold separately) via CAT5 cable with RJ45 connectors

• Rated Power: 300 W
• Number of Output Channels: 2
• Insertion Loss: 1 dB maximum
• Frequency Response: +/- 1/0 dB
• Total Harmonic Distortion:< 0.5%
• Signal-to-Noise Ratio: >97 dB
• Max Input Level: + 22 dBu (Nominal)
• Crosstalk:< -70 dB
• Operating Temperature/Humidity: 0 °C to 35 °C @ 95% R.H
• Storage Temperature: -20 °C to 85 °C
• Dimensions (W x D x H): 17.0" x 10.8" x 3.5" (432 x 274 x 89mm)
• Shipping Weight: 20.6 lbs.
• Note: further specifications and information can be found within the items located under the "Documentation" tab above.
