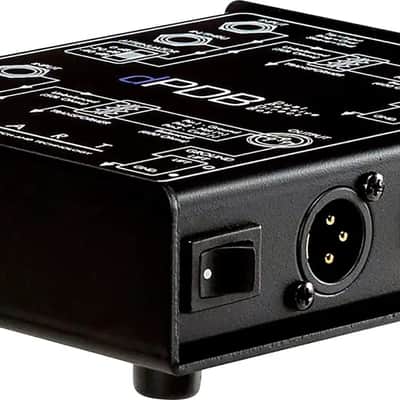

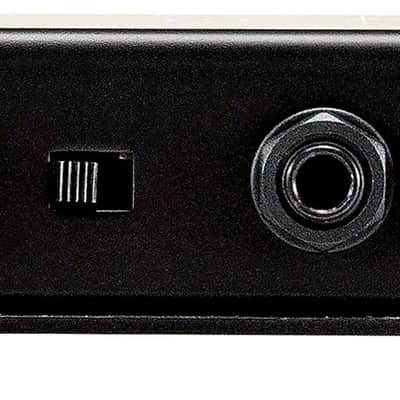

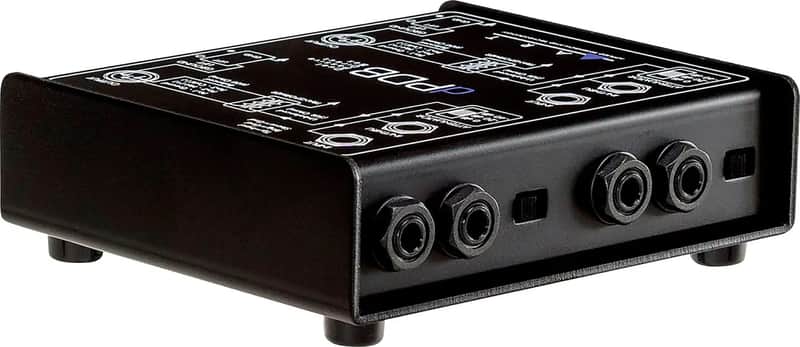

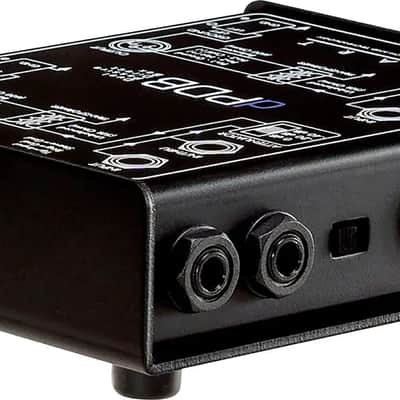

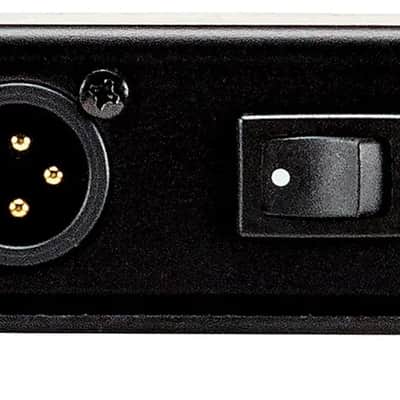

ART DPDB Dual Passive Direct Box
Free Shipping
from Grandville, MI
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

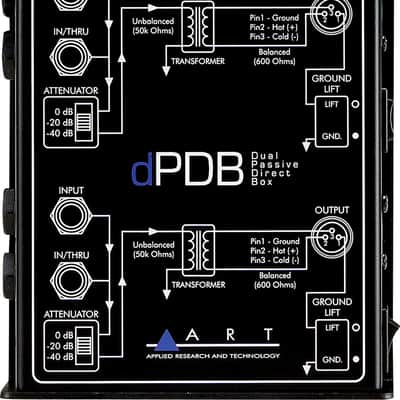

The dPDB is a two-channel passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs. Each input signal is sent to a balanced, transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage. Both channels feature ground lift switches to help eliminate hum, and up to 40 dB of attenuation. As a fully passive design, the dPDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps. The dPDB provides a high-fidelity connection to a mixer, PA system, or audio interface, and offers two independent channels in a stage-proof steel enclosure.
Product Features
- 2 Independent Channels
- 1/4" TRS Inputs and Thru Connectors
- Balanced XLR Outputs
- Switchable Attenuation (-20 dB, -40 dB) per Channel
- Switchable Ground Lift per Channel
- Passive Design - No Power Required
- Rugged Steel Case
Technical Specifications
- Features: Ground Lift
- Active/Passive: Passive
- # of Channels: 2
- Dimensions: 2" H x 5" W x 5.75" D
- Inputs: 4 x 1/4" TRS Balanced/Unbalanced
- Outputs: 2 x XLR 3-Pin Balanced
- dB Pad: -20 / -40 dB
