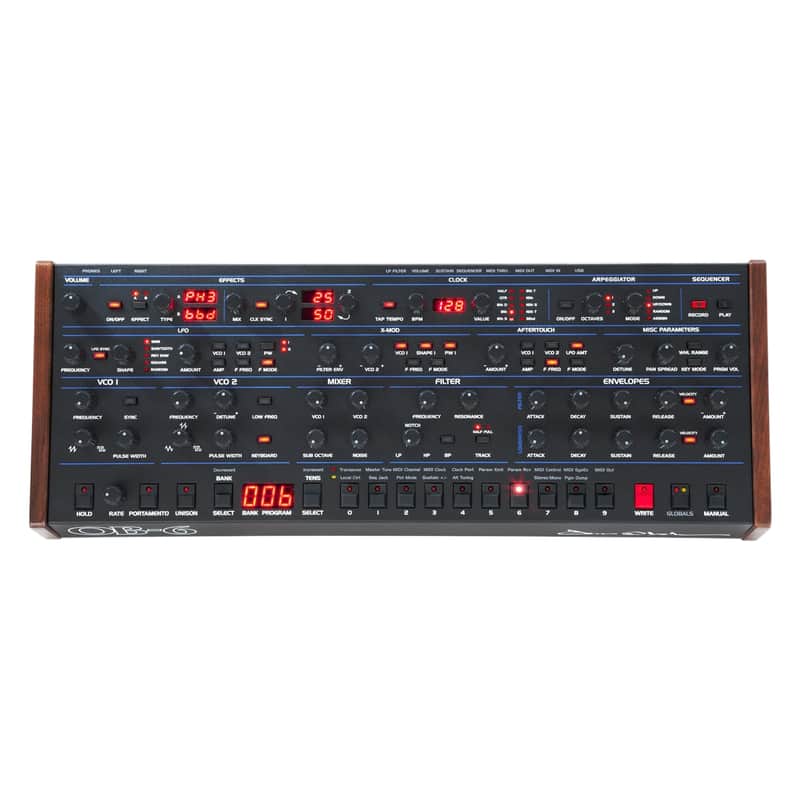

Get Classic Oberheim Sound Made Portable with the Sequential OB-6 Desktop Polyphonic Analog Synthesizer

The OB-6 desktop module is just as powerful and easy to use as its counterpart, the OB-6 Keyboard. The module has all of the same controls as the keyboard version and provides the same immediacy and ease of use. As with the OB-6 Keyboard, all parameters are at your fingertips, with full-sized knobs and switches and a comfortable, intuitive layout.

This desktop module delivers the same massive sound, classic Oberheim analog signal path, high-quality digital effects, and even a poly chain feature that pairs two OB-6s for twelve-voice polyphony.

Two Legends. One Instrument.

A collaboration between designers Dave Smith and Tom Oberheim, the OB-6 combines the bold, vintage Oberheim sound with modern enhancements, such as studio-quality effects, a polyphonic step sequencer, and an arpeggiator.

Vintage SEM Tone

The OB-6 sound engine is inspired by the original SEM, featuring two discrete voltage-controlled oscillators per voice, a classic 2-pole state-variable filter, and voltage-controlled amplifiers, creating an authentic Oberheim tone.

Dual Effects

The effects section offers studio-quality reverbs, delays, chorus, flangers, and recreations of Tom’s original phase shifter and ring modulator. True bypass keeps the analog signal path intact when effects are off.

X-Mod and Poly Step Sequencing

With X-Mod and a polyphonic step sequencer, the OB-6 offers expanded tonal options and the ability to create sequences of up to 64 steps. The arpeggiator also syncs to an external MIDI clock for versatile control.

Easy to Program and Play

The knob-per-function layout and live panel mode make programming straightforward, while its compact design is perfect for studios or on-the-go musicians.

Specifications

Oscillators

• Two discrete VCOs per voice with continuously variable wave shape
• Square wave sub-octave generator per voice
• Low-frequency mode (oscillator 2)

Mixer

• Controls for oscillator 1, sub-octave, oscillator 2, and white noise amounts

State-Variable Filter

• Two-pole, resonant filter with low-pass, high-pass, band-pass, and notch functions
• Bi-polar filter envelope modulation

Envelopes

• Four-stage (ADSR) envelope generators for filter and amplifier
• Velocity modulation of envelope amount

Low Frequency Oscillator

• Five wave shapes with clock sync
• Mod destinations include oscillator and filter parameters

X-Mod

• Sources: filter envelope and oscillator 2
• Destinations include oscillator 1 and filter parameters

Additional Features

• Arpeggiator with multiple note values and ranges
• Polyphonic step sequencer with up to 64 steps

Effects

• Analog distortion and digital effects, including reverb, delay, chorus, and flanger
• True bypass maintains analog signal path

Performance Controls

• Semi-weighted 4-octave keyboard with velocity and aftertouch
• Transpose and hold functions, polyphonic portamento

Patch Memory

• 500 user and 500 factory programs

In/Out Connections

• Left/mono and right audio outputs
• Headphone output
• MIDI in, out, and thru, USB for MIDI

Power

• IEC AC power inlet, worldwide voltage compatibility

Physical Specs

• Dimensions: 20.75” L x 7.8” W x 4.4″ H
• Weight: 13.0 lbs
• Walnut end panels

Manufacturer: Oberheim
Model: DSI-1700
SKU: I436087-O-0-WHXX
UPC: 855346000746
