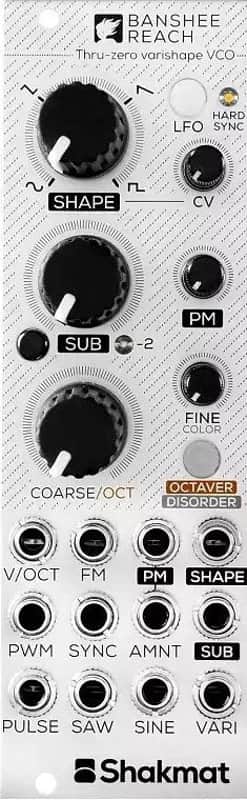

SHAKMAT MODULAR BANSHEE REACH : BRAND NEW : [DETROIT MODULAR]

Banshee Reach is Shakmat Modular’s first sound generator. It has 8HP and is a full analog triangle core VCO with a continuously variable waveshape. With the shape knob, you can morph from a sine into a sine, a triangle, a saw, and lastly in a square. Plus they are crossfaded with a sub-octave generator with -1/-2 octaves. The shaping knob can also be modulated with the shape CV input that gives you very unique waveforms.

Then, you get thru zero FM/PM capabilities selectable on the module. The sound source also offers fine and coarse settings. The inputs and outputs are located in the lower area. You get individual waveform outputs, additional shaping options (PWM, sync), a V/oct input, and more. Banshee Set proves to be a great companion for your FM duties as a carrier or as a modulator thanks to its thru zero FM / PM input and soft sync capabilities. It also serves as a flexible modulation source as it can also easily go into LFO range.

Dimensions 8 HP
Current Draw 120 mA +12V 70 mA -12V
