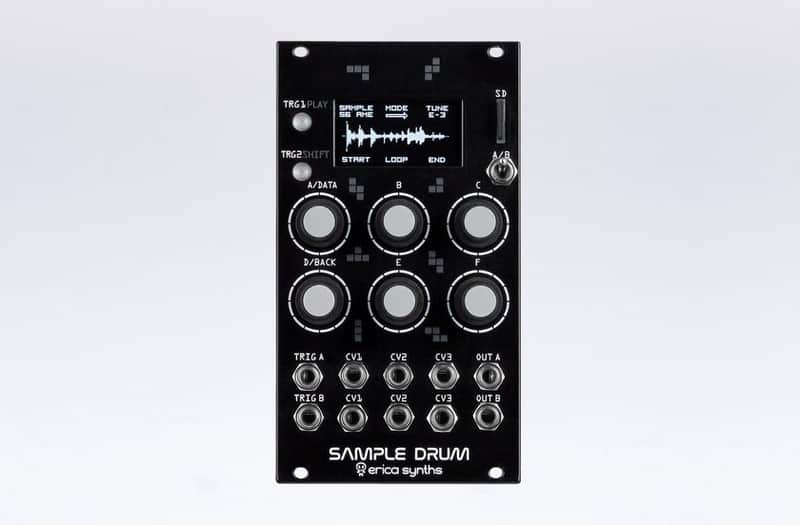

ERICA SYNTHS SAMPLE DRUM : BRAND NEW : [DETROIT MODULAR]

Sample Drum is 14HP eurorack sample player module with straight-forward, intuitive interface, functionality and great sound quality, designed with live performance use in mind. Features

• Sample playback with fast trigger response (~1ms)
• Various effects for real time sample processing
• Sample recording functionality
• Manual and automatic sample slicing
• Cue point loading from WAV files
• 1V/Oct tracking
• 3 assignable CV inputs per channel
• Preset memory
• User-friendly interface
• Performance mode
• 16 GB SD card with factory preset samples included

The Sample Drum is composed of two identical parts and allows you to play back, record and slice up samples or loops directly in your modular system. For processing there are different play modes, tuning functions (including 1 V/Oct pitch tracking), virtual VCAs plus AD envelopes and realtime effects. Three freely assignable CV inputs per channel guarantee a lot of expression during performance. 16bit mono wav samples are loaded into RAM (32MB / ~ 5 minutes of sampling time) from SD card (16 GB SD card with factory preset samples comes with the module) for instantaneous playback response. All settings can be saved and recalled during live performance.

The Sample Drum comes with free factory preset sample pack developed by producers Pitch Black, Nero Bellum, T.Raumschmiere, Otto von Schirach, Raitis AG. If you use your own samples in the Sample Drum, you take all responsibility on complying with copyright laws. Please read the End User Agreement below!

Audio output amplitude 10Vptp Octave range C0 – C8 RAM size 32Mb, 5 minutes of samples Sample rate 48kHz, 16bit Sample recording rate 48kHz, 12bit CV input range (configurable)  5V - +5V Panel width 14HP Panel width 30mm Power consumption 65mA@+12V, 2mA@-12V
