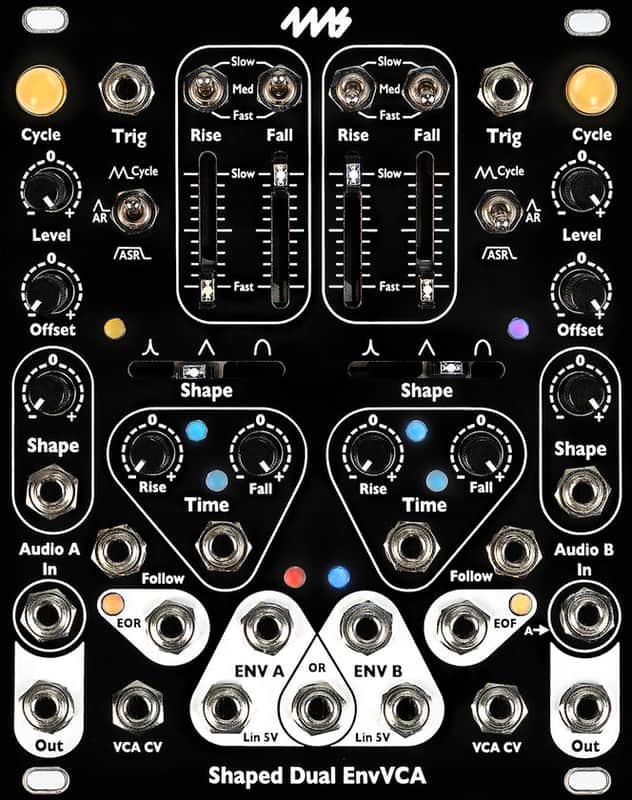

4MS SHAPED DUAL ENVVCA : BRAND NEW : [DETROIT MODULAR]

• Versatile linear, exponential, and logarithmic envelope generator/LFO
• Low-noise, low-distortion, DC-coupled linear VCAs
• 100% analog
• Shape Slider, CV Jack and Attenuverters for fading between Exponential, Linear and Logarithmic envelope shapes without changing the envelope timing
• Sliders and Range switches control Rise and Fall times from ~2ms to > 2 min.
• Time CV jack extends time range: ~400µs (2.5kHz) to ~1 hour
• Independent attenuverters for Rise and Fall time
• Blue/Red LEDs indicate strength and polarity
• Cycle buttons for looping envelopes (LFO)
• Trigger input jack and switch for toggling between AR, ASR, and Cycle modes of triggering
• EOR/F (End of Rise/Fall) gate outputs can be used to chain and sequence events
• Env Level and Offset knobs scale and shift Env Out without changing VCA volume
• Audio In and Out jacks for passing audio or CV through the VCA
• VCA CV inputs to use VCAs independently from the envelopes:
  • VCA gain internally connected to envelope output when VCA CV jack is left unpatched
• Follow input jacks allow for slew limiting, ADSRs, and exotic filtering effects
• Re-trig jumpers allow for re-triggering during rise phase

Shaped Dual EnvVCA

• 20HP Eurorack format module
  • 0.95” (24mm) maximum depth (includes power cable)
  • 10-pin Eurorack power header
• Power consumption
  • +12V: 255mA
  • -12V: 230mA
• Audio/VCA
  • 100k input impedance, 1k output impedance, DC-coupled
  • VCA gain range: -90dB to +2.0dB, linear response to CV from 0V to 5V
  • VCA unity gain: 4.4V CV
  • DC to 20kHz, +/-0.1dB
• Envelope Times
  • Minimum rise or fall time: ~200us per segment (2.5kHz max frequency)
  • Maximum rise time: >20 minutes (typically > 40 minutes)
  • Maximum fall time: >12 minutes (typically > 20 minutes)
• Jacks:
  • Env jack: Min = -10.2V, Max = +10.1V
, maximum amplitude 9.3Vpp

  • Trigger jack: rising edge threshold = 1.25V
  • Follow jack: active range = 0V to +5V
  • EO* jacks:
    • EOR (channel A): <80mV low to >4.50V high gate output
    • EOF (channel B): <80mV low to >4.95V high gate output
    • Minimum stable pulse width: 1ms. Shorter than this may produce extra 50µs pulses
  • Audio In/Out jacks: -10V to +10V maximum range without clipping
