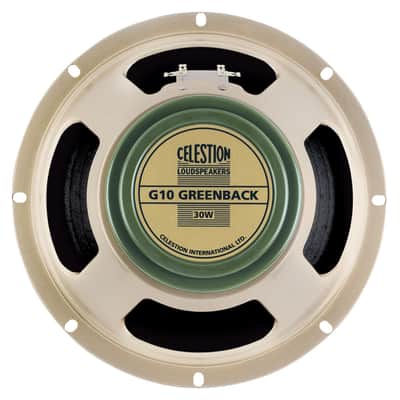

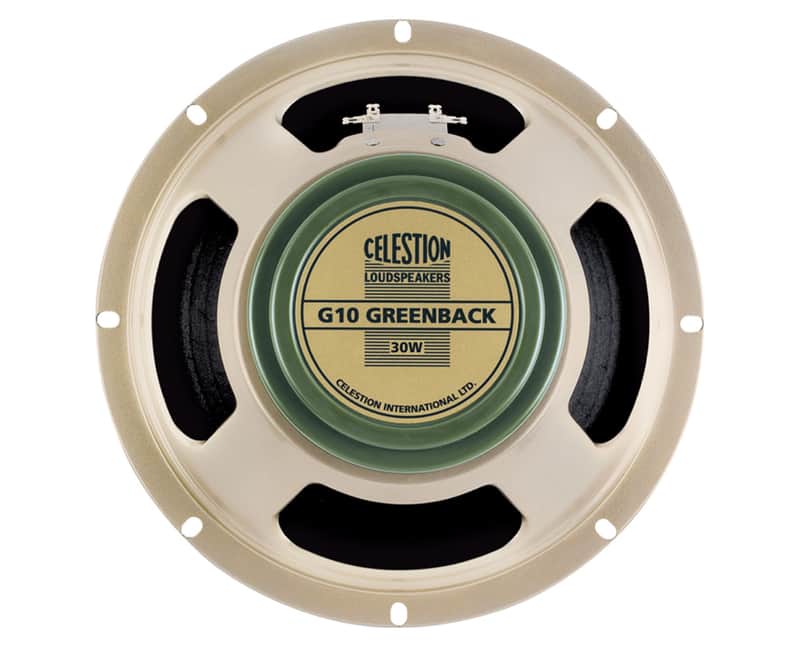

10-inch steel-chassis guitar speaker
This guitar speaker was developed to recapture the legendary sound of Celestion’s 1970s 10s – a 10 speaker with a surprisingly meaty tone. Low in output but with the weighty low-end balance of a 12-inch speaker, the G10 Greenback features a complex mid-range and smooth vintage top-end. In small combos this speaker adds real class and when combined in a 4×10 gives rise to a raunchy full-bodied tone rich in low-end thump.
Features
- Nominal diameter : 254mm / 10in
- Power rating : 30W
- Rated impedance : 8O
- Sensitivity : 95dB
- Chassis type : Pressed steel
- Magnet type : Ceramic
- Voice coil diameter : 1.75in / 44mm
- Voice coil material : Round copper
- Frequency range : 95-5500Hz
- Resonance frequency, Fs : 98Hz
- DC resistance, Re : 6.4O or 12.05O
Mounting Information
- Cut-out diameter : 229mm / 9in
- Diameter : 254mm / 10in
- Magnet structure diameter : 124mm / 4.9in
- Mounting hole dimensions : 6.5x8.9mm / 0.25x0.35in
- Mounting hole PCD : 245mm / 9.6in
- Number of mounting holes : 8
- Chassis depth (inc gasket) : 72mm / 2.83in
- Magnet depth : 30mm / 1.17in
- Overall depth : 102mm / 4.0in
