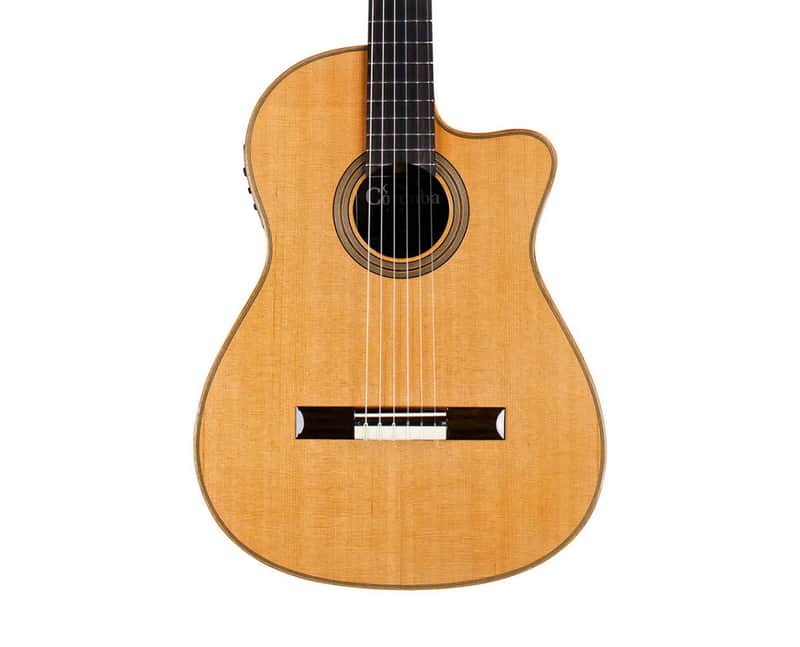

Cordoba Fusion Orchestra CE Cutaway Acoustic Electric Nylon String Guitar

The Orchestra CE is one of our best-selling Fusion guitars. Available with a solid Canadian cedar top and rosewood back and sides, this model's main feature is its slim neck profile (48mm Nut width and 16" radius fingerboard) and only 12 frets to the body, which maximizes the amount of resonance and vibration across the soundboard. It's the perfect blend of classic Spanish designs with modern aesthetics—a hand-inlaid wooden rosette, elegant mahogany binding, and a high gloss PU finish. Ready to plug in and play, the Orchestra CE comes equipped with the Fishman Presys Blend preamp.

Features

Key Features

• Construction : Solid Top
• Family : Cutaway & Electric
• Style ;  Fusion

Material

• Bridge Material : Rosewood
• Fingerboard Material : Ebony
• Neck Material : Mahogany
• Nut Material : Bone
• Saddle Material : Bone

Body

• Back and Sides Wood : Rosewood
• Back Binding : Mahogany
• Back Center Strip : Mahogany
• Back Purfling Inlay : Maple and Black
• Body Top : Solid Western Red Cedar
• Build : Fusion
• Color : Natural (NAT)
• Finish : Gloss Polyurethane
• Frets to Body : 12
• Neck Joint : Dovetail
• Neck Shape : Crossover C Shape
• Top Bracing Pattern : Fan
• Waist Width : 235mm (9 1/4")

Electronics

• Electronics : Fishman Presys Blend
• Tuning Machine Buttons : Black
• Tuning Machine Ratio : 14:1

Dimensions & Weight

• Body Depth Lower Bout : 100mm (4")
• Body Depth Upper Bout : 95mm (3 3/4")
• Body Length : 483mm (19")
• Fret Dimensions : 2.0mm (W) x 1.1mm (H)
• Lower Bout Width : 368mm (14 1/2")
• Master Carton Dimensions : 112x58x69 (cm) - Cordoba Triangle Master Carton (6 Pack)
• Neck Thickness 1st Fret : 21mm
• Neck Thickness 9th Fret : 24mm
• Nut Width : 48mm (1 7/8")
• Overall Length : 978mm (38 1/2")
• Scale Length : 650mm (25.6")
• Soundhole Diameter : 84mm (3.3")
• Upper Bout Width : 279mm (11")

Other

• Does it contain shell? : Yes - MOP
• Electronics Vendor & Model : Fishman OEM-PSY-B03
• Exclusive : No
• Frets Total : 19
• Headplate : Rosewood
• Headstock Logo : Cordoba Arches Logo - Mother-of-Pearl
• Included Case : Case Sold Separately
• Item Number : 05410
• Number of Strings : 6
• Nut String Spacing : 40mm
• pcid : 1
• Pickup Type : Undersaddle Piezo, Onboard Tuner
• psid : 4
• Rosette : Maple and Black Rings
• Side Purfling Inlay : Maple and Black
• Strings : Savarez Alliance /Cantiga High Tension 510AJ
• Tail Strip : Mahogany
• Top Binding : Mahogany
• Top Purfling Inlay : Maple and Black
• Truss Rod : Dual Action
• Truss Rod Wrench : 4mm Allen Key
• Tuning : E-A-D-G-B-E
• Tuning Machines : Cordoba Silver with Black Buttons
• Tuning Machines Vendor & Model : Der Jung DJ206CK-P12 (S3)
