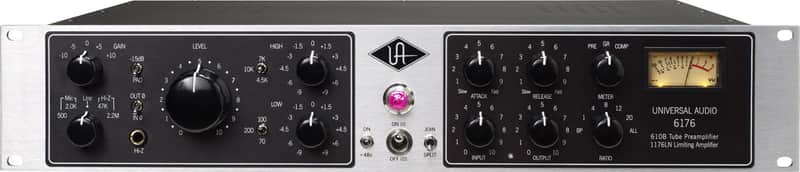

Universal Audio UA 6176 Vintage Channel Strip

LIMITED QUANTITY - PRICE AND AVAILABILITY SUBJECT TO CHANGE WITHOUT NOTICE.

All-tube mic preamp section derived from legendary Bill Putnam-designed 610 modular console
Signature 1176LN Class A FET compressor section — heard on countless hit records for more than 40 years
"Split" or "Join" switch allows separate or series operation of the preamp and compressor
High and Low frequency shelving EQ
Variable impedance Input, Gain, and Output levels
Mic, balanced Line, and Hi-Z inputs
Ultra-quiet operation
Stereo interconnection via 1176-SA
Hand-built in USA; backed by 1-Year limited warranty

Parameters

Preamp:

Microphone Input Impedance: Selectable, 500 Ω(ohms) or 2k
Balanced Line Input Impedance: 20k Ω
Hi-Z Input Impedance: Selectable between 2.2 M Ω or 47 k Ω
Maximum Microphone Input Level: +18 dBu (2k input impedance and 15 dB Pad in)
Maximum Output Level: +20 dBm
Internal Output Impedance: 80 Ω
Recommended Minimum Load: 600 Ω
Frequency Response: 20 Hz to 20 kHz +0, -1 dB
Maximum Gain: 65 dB (500 Ω input impedance)
Signal-to-Noise Ratio > 90 dB (@ maximum gain)

Limiting Amplifier:

Input Impedance: Selectable, 15k Ω (ohms) or 600 Ω
Output Load: Impedance 600 Ω (floating)
Frequency Response: 20 Hz to 20 kHz ± 1 dB
Gain: 40 dB, ± 1 dB
Distortion: > 0.5% T.H.D. from 50 Hz – 15 kHz with limiting, at 1.1 seconds release setting. Output of +22 dBm with no greater than 0.5% T.H.D.
Signal-to-Noise Ratio: > 75 dB
Attack Time: Adjustable, from 20 to 800 microseconds
Release Time: Adjustable, from 50 milliseconds to 1.1 seconds
Stereo Interconnection: Optional, using 1176SA stereo interconnect accessory

General:

Tube Complement: (1) 12AX7A, (1) 12AT7A
Power Requirements: 115V/230V

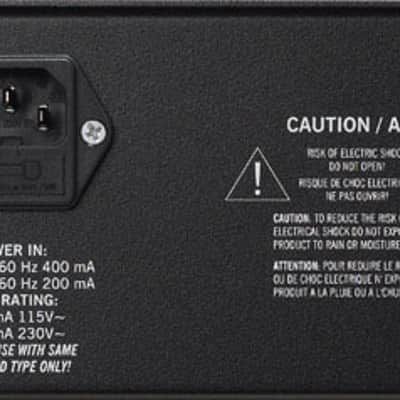

Power Connector: Detachable IEC power cable.
Fuse: 400 mA time delay (slow blow) / 115 V200 mA time delay (slow blow) / 230 V
Power Indicator Light: 28 V bulb (type 1819)
Dimensions 1: 9" W x 3.5" H x 12.25" D (two rack unit)
Weight: 12 lb.
