The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
Meranti Neck
Nandu Wood Fretboard
The Nandu Wood fretboard provides a rich and warm tone.
Meranti Top
Meranti top provide a warm and balanced tone.
Meranti Back And Sides
Meranti back and sides provide a warm and balanced tone.
Nandu Wood Bridge
The Nandu Wood bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Ibanez Undersaddle Pickup
The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.
Ibanez AEQ-2T Preamp W/Onboard Tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.
Ibanez Advantage Bridge Pins
These pins really are an advantage over old-fashioned pins. Advantage pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage the pin and string stay put.
Features
- Body Shape : Cutaway Grand Concert body
- Top : Meranti top
- Back & Sides : Meranti back & Meranti sides
- Neck : PCMeranti neck

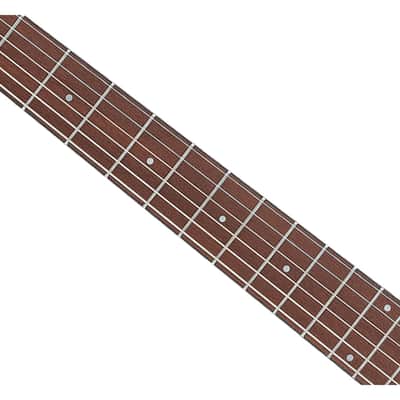

- Fretboard : Nandu Wood fretboard
- Bridge : Nandu Wood bridge
- Inlay : White dot inlay
- Soundhole Rosette : Water decal
- Tuning Machine : Chrome Die-cast tuners
- Number Of Frets : 21
- Bridge Pins : Ibanez Advantage
- Strings Ibanez : IACS6C
- String Gauge : .012/.016/.024/.032/.042/.053
- String Space : 11mm
- Factory Tuning : 1E,2B,3G,4D,5A,6E
- Pickup : Ibanez Undersaddle pickup
- Preamp : Ibanez AEQ-2T preamp w/Onboard tuner
- Output Jack : 1/4" output
- Battery : 9V x1
Neck Dimensions
- Scale : 634mm/25"
- Width : 42mm at NUT
- Width : 54mm at 14F
- Thickness : 21mm at 1F
- Thickness : 22mm at 7F
- Radius : 250mmR
Body Dimensions
- Length : 19 3/8"
- Width : 15 3/8"
- Max Depth : 4 1/4"
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Sides Material |
|
| Finish Style |
|
| Color Family |
|
| String Type |
|
| Fretboard Material |
|
| Top Material |
|
| Back Material |
|
| Right / Left Handed |
|
| Number of Strings |
|
| Offset Body |
|
| Wood Top Style |
|
| Body Shape |
|
| Scale Length |
|
| Pickup |
|
| Number of Frets |
|
