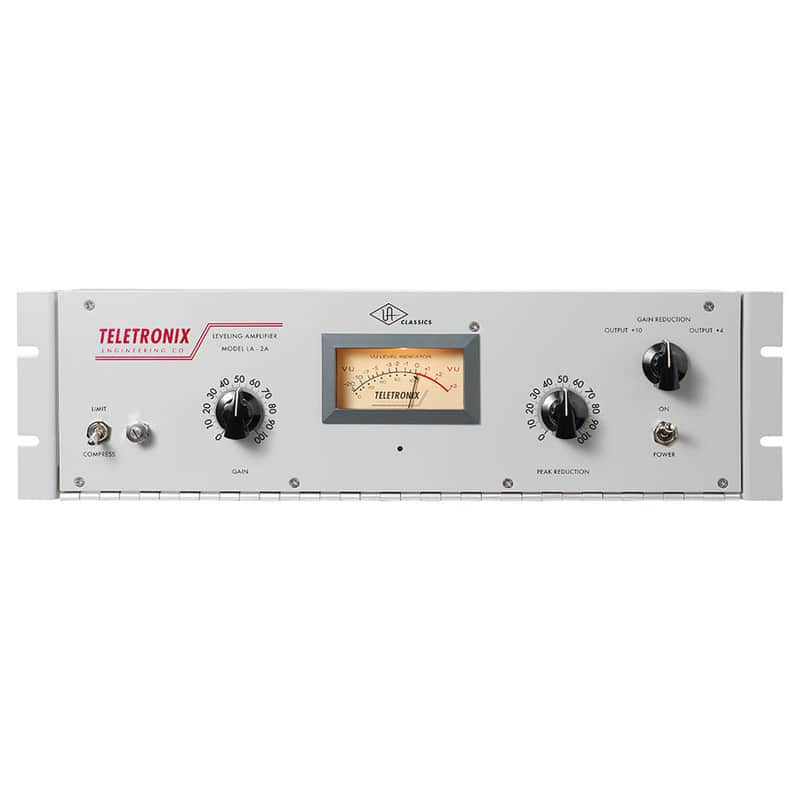

Universal Audio Teletronix LA-2A Leveling AmpTrue to the original design, UA’s famed tube-amplified T4 electro-optical compressor.

For over 50 years the Universal Audio Teletronix LA-2A Leveling Amp has been revered for its smooth, natural, musical compression. With its unique tube-driven electro-optical attenuator system that allows instantaneous gain reduction with no increase in harmonic distortion, the LA-2A massages signals like no other compressor ever made.

Now You Can:

• Dial-in legendary optical tube compression textures for vocals, bass, drums, and more.
• Record your tracks through vintage UA, “handmade in the USA,” circuits.
• Easily add iconic warmth and tube limiting with simple, easy-to-use controls.
• Track and mix with a piece of audio recording history.

The Teletronix Story

Teletronix founder Jim Lawrence first used photocells to control audio gain in the early 1960s. His ingenious optical compression design was a technological breakthrough, far surpassing the stability and transparency of earlier circuits. Universal Audio founder M.T. ”Bill” Putnam later purchased this patented technology, continuing to manufacture the LA-2A for years to come.

The Real Deal

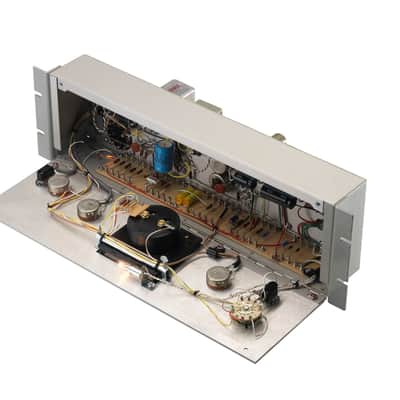

Universal Audio Teletronix LA-2A Leveling Amp reissue provides the performance characteristics of the iconic original. With painstaking care, every new LA-2A unit is point-to-point hand-wired in Scotts Valley, California, with every component carefully evaluated for authenticity. As a result, today’s LA-2A will bring the same legendary compression characteristics of the original to all of your recordings. Demand the original. Accept no copy.

Features:

• True to the original in design, manufacturing, and performance.
• Lag-free, distortion-free optical attenuator system.
• Distortion less than 0.5% THD.
• 0 to 40 dB gain limiting.
• Balanced stereo interconnection.
• Frequency response 1 dB, 30 to 15,000 cps.
• Output level of 10 dBm and 40 dB gain.
• Low noise – less than 70 dB below ±10 dBm output.

Technical Specifications:

• Input Impedance: 50, 150, 250, 600 ohms.
• Output Load Impedance: 50, 150, 250, 600 ohms.

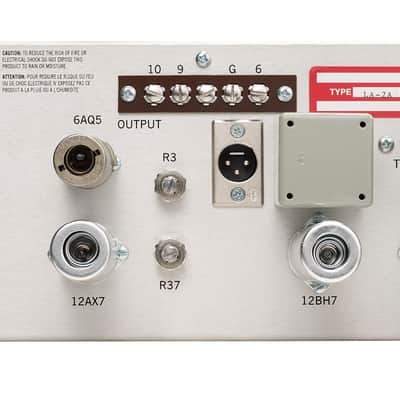

• External Connections: Jones Barrier terminals and XLR connectors.
• Frequency Response: +0/-1 dB 30 Hz to 15kHz.
• Gain: 40 dB ±1dB.
• Input Level: +16 dB maximum.
• Output Level: +10 dB nominal, +16 dB maximum.
• Distortion: Less than 0.5% THD (0.25% typical) at ±10 dBm.
• Noise: 70 dB below +10 dBm output level.
• Attack Time: 10 microseconds.
• Release Time: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release.
• Meter: dB gain reduction and dB output.
• Power Requirements: 35 watts, 120/240 volts, 50/60 Hz.
• Environmental: Maximum operating temperature 160°F.
• Dimensions: 19" Rackmount chassis, 3U.
• Weight: 13 lbs.
