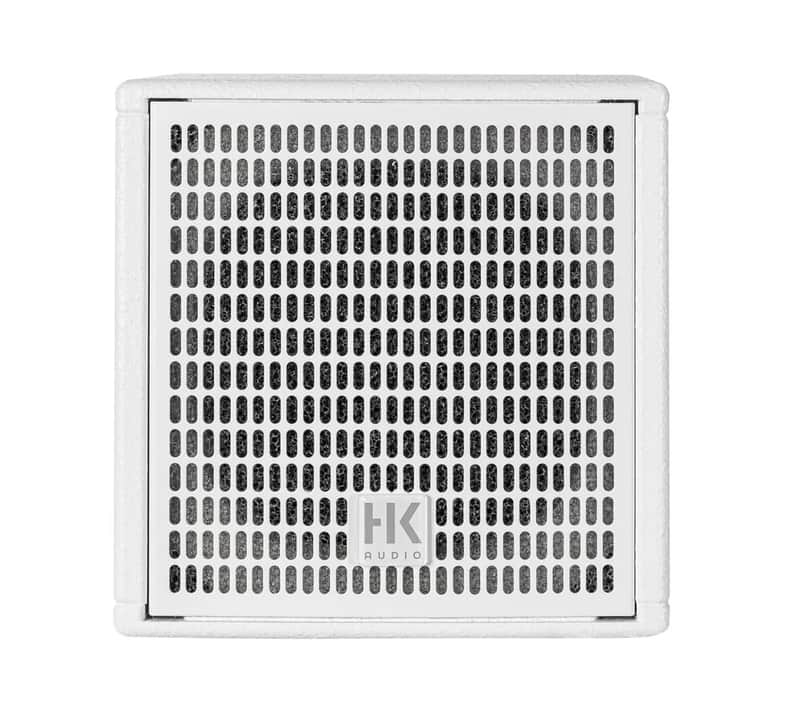

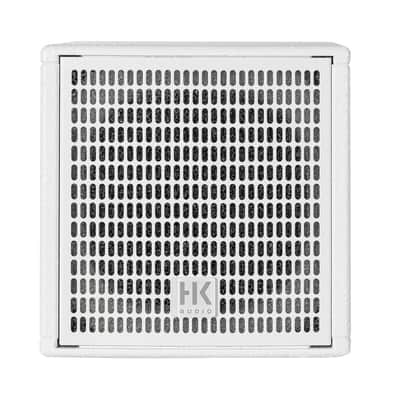

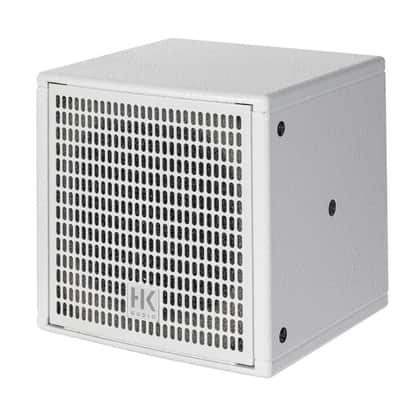

HK Audio FINEO-FO-5-WHT 200-Watt 5-Inch Coaxial Speaker Blk Compact Install 8 ohm

The ultra-compact, cube-shaped FO 5 features an innovative coaxial 5″/1″ transducer with 110° dispersion, in which the silk dome tweeter uses the shape of the woofer cone as a waveguide. This makes it particularly suitable for close listening distances and ideal for use as a delay speaker in larger rooms for front sound reinforcement or nearfill at the edge of the stage in fixed installations. In combination with the S112 (F) subwoofer, it grows to full size and offers a powerful full-range sound reinforcement solution that will please even the most discerning ears. In addition to nearfield monitoring at lecterns, other areas of application include high-quality hospitality or background sound reinforcement as well as unobtrusive placement in exhibitions, for elaborate immersive audio applications with many sources or simply for use by Power Hi-Fi enthusiasts. With its extensive range of accessories, the FO 5 can be quickly and safely installed in all standard applications, but can also handle more specialised requirements with ease.

Technical Data

Characteristics:

• Concept: Passive 2-way mid/high unit.
• Cabinet Principle: Bass reflex.
• Power Handling:
• • RMS: 100 W.
  • Program: 200 W.
  • Peak: 400 W.
• Nominal Impedance: 8 ohms (per EN 60268-5 standard).
• Max SPL:
• • Average: 109 dB (1 m, 10 % THD, 100 Hz - 20 kHz, full space).
  • Peak: 112 dB (1 m, 10 % THD, 2 kHz, full space).
• Sensitivity: 87 dB (1W/1m, 100 Hz - 20 kHz, full space).
• Crossover Frequency: 3.1 kHz.
• Frequency Range:
• • -6 dB: 81 Hz - 20 kHz.
  • -10 dB: 75 Hz - 20 kHz.
• Dispersion Angle: 110° (-6 dB circular).

Certifications:

• Ball Impact Resistance: Certified per DIN 18032-3 (MPA University Stuttgart).
• IP Protection Class: Not specified.

Components:

• Low-/Mid-Frequency Driver: 1x 5" Celestion coaxial cone speaker with ferrite magnet, 1.5" voice coil.
• High-Frequency Driver: 1x 1" Celestion silk dome tweeter with neodymium magnet, 1" voice coil.
• Crossover:
• • High Pass: 18 dB/octave.
  • Low Pass: 12 dB/octave.
• High-Frequency Protection Circuit: Self-healing PTC fuse.
• Horn: Coaxial membrane functions as a waveguide.

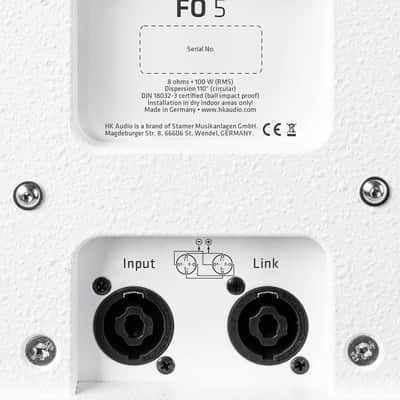

Connections:

• Input: 1 x NL4 Speakon.
• Output/Parallel Output: 1 x NL4 Speakon.
• Pin Assignment: 1+/- (input/parallel output), 2+/- (wired through).

Amping/DSP Presets:

• Supported Brands: Lab.Gruppen IPX, LEA Professional Sharkware.
• Filter Specifications: Available for Biamp Tesira, BSS, Lab.gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Symetrix.

Mechanical Data:

• Mounting Points: 2 x M6 (side), 4 x M4 (rear).
• Cabinet Material: MDF.
• Surface Finish: 1-component acrylic enamel.
• Color Options: Jet black (RAL 9005), signal white (RAL 9003), or special colors (per catalog).
• Front Grille: Steel with anticorrosive coating, backed by acoustic foam.
• Rear Hole Pattern: VESA MIS-D (100 x 100 mm).
• Dimensions (WxHxD): 195 x 195 x 195 mm (7.68" x 7.68" x 7.68").
• Weight: 4.2 kg (9.23 lbs).
