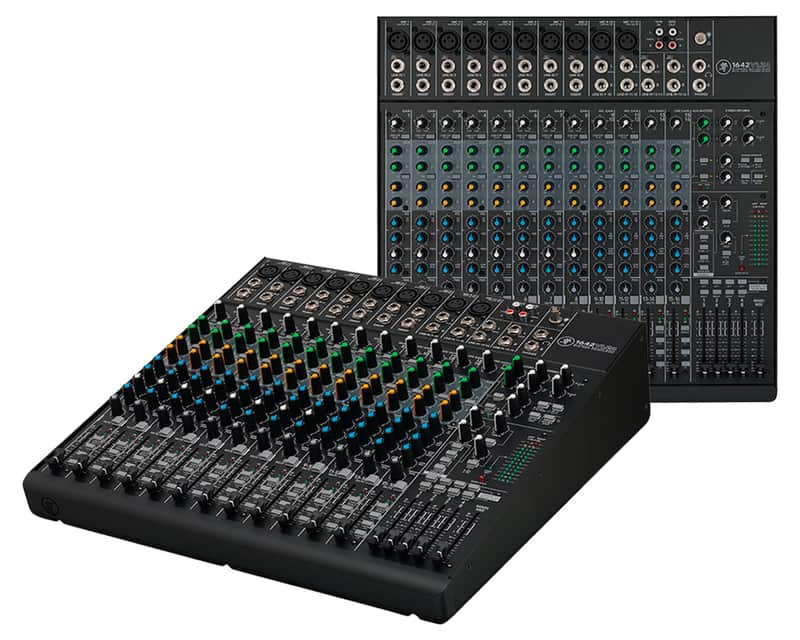

Mackie - 1642VLZ4 - Compact Analog Mixer -16-Channel

VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

Now featuring Mackie's flagship Onyx mic preamps, the professional 1642VLZ4 delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago. Made for routing signal in tons of ways, 1642VLZ4 is a perfect companion for a home studio. Easily route busses and channels and effects for mixdown with incredible VLZ4 sound quality.

Features:

• 10 Boutique-quality Onyx mic preamps with ultra-wide 60dB gain range
• Phantom power for condenser mics
• 3-band EQ (80Hz, 2.5kHz, 12kHz)
• 18 dB/oct 75Hz low-cut filter on mic input channels
• 60mm long-wearing log-taper faders
• High-resolution 12-segment stereo meters
• “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
• Rack-mountable design using optional rack ear kit

Specifications:

• Type: Analog
• Channels: 16
• Faders: 17 x 60mm Throw
• Inputs - Mic Preamps: 10 x XLR
• Phantom Power: 10
• Inputs - Line: 16 x TRS (8 x Mono, 4 x Stereo Pairs)
• Inputs - Other: 2 x RCA (Tape)
• Outputs - Main: 2 x XLR, 2 x TRS (Main), 1 x TRS (Main Mono)
• Outputs - Direct: 8 x TRS
• Outputs - Other: 2 x RCA (Tape), 8 x TRS (Bus), 2 x TRS (Control Room)
• Aux Sends: 2 x Pre/Post, 2 x Post
• Send/Return I/O: 4 x TRS (Send), 8 x TRS (Stereo Return)
• Busses/Groups: 4 x Bus
• Channel Inserts: Yes
• Headphones: 2 x 1/4"
• EQ Bands: 3-band
• Rackmountable: Yes (Rack Kit Sold Separately)
• Height: 5.2"
• Width: 16.6"
• Depth: 16.7"
• Weight: 18.2 lbs.
• Manufacturer Part Number: 2040766-00
