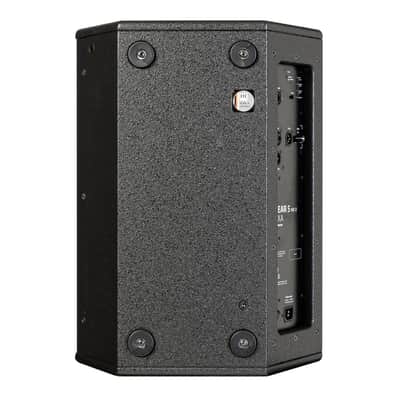

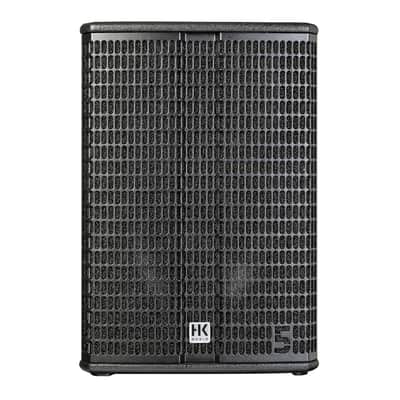

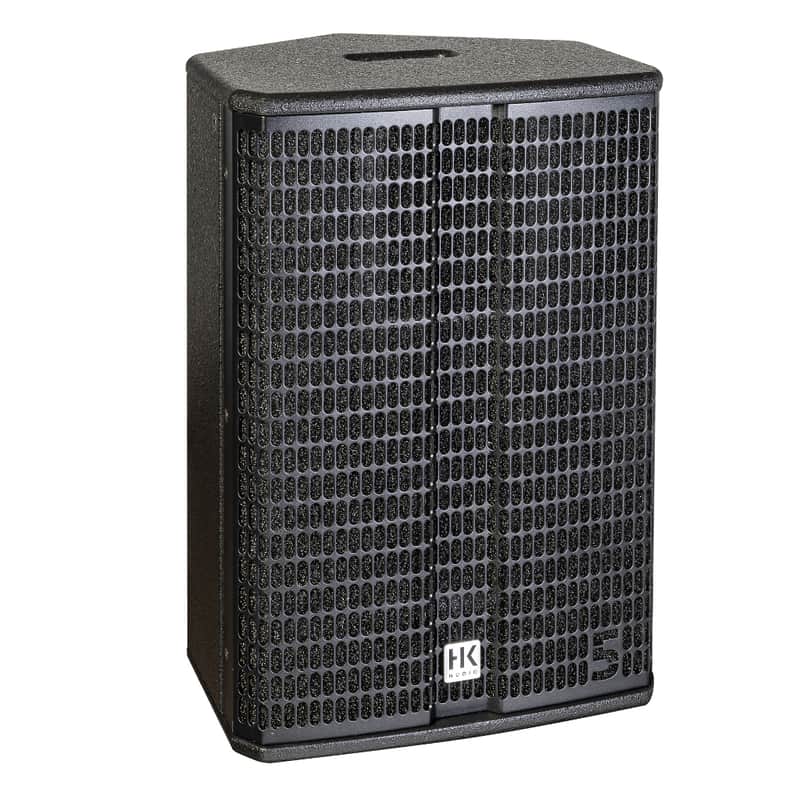

HK Audio LINEAR-5-MK2-110-XA Linear 5 MK II Series 1200-Watt 10-Inch Multi Function Active Speaker

Extremely compact and lightweight multifunctional mid/high unit.

Technical Data

• Max. SPL @ 10% THD: 127 dB half space (70 Hz – 12 kHz averaged).
• Max. SPL Peak @ 10% THD: 135 dB half space.
• Frequency response +/-3 dB: 74 Hz – 12 kHz.
• Frequency response -10 dB: 68 Hz – 19 kHz.
• Power amp output (RMS/Peak): 600 / 1,200 W.
• Amplifier type: Class D – bi-amped.
• Low/mid speaker: 1 x 10", 2" voice coil.
• HF driver: 1", 1.4" voice coil.
• Horn characteristics: 80° x 60° CD horn, rotatable.
• Active x-over frequency: 2.1 kHz FIR X-over with 72 dB/oct.
• Maximum input level: 20 dBu.
• Analog inputs: 1 x XLR combo balanced.
• Analogue Thru: 1 x XLR balanced.
• DSP Out: 1 x XLR balanced.
• Network port: EtherCON RJ45, 1 x In.
• Filter presets: Flat, Monitor, Low Cut, Remote.
• Remote software: DSP CONTROL (Windows, Mac OS).
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, and Mute.
• Sample rate: 48 kHz.
• System latency: Less than 2 ms.
• Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V.
• Power consumption: 1 A / 100–240 V nominal according to EN 62368-1.
• Setup angle: 31°.
• Pole mount: DuoTilt 3°/7°.
• Rigging points: 3x M8 (AP-8).
• Carrying handles: 1 x SingleGrip.
• Housing: Hybrid (birch multiplex/MDF).
• Surface: Black acrylic enamel.
• Front grille: 2 mm metal grille backed with black acoustic foam.
• Dimensions (WxHxD): 36 x 52.5 x 30 cm / 14-1/16 x 20-43/64 x 11-13/16".
• Weight: 14.9 kg / 32.85 lbs.
