Wired bodypack personal monitor delivers improved audio clarity and reduced feedback onstage compared to traditional speaker wedges. Features include LCD screen, MixMode technology, and stereo mode for left or right balance adjustment for two mixes.

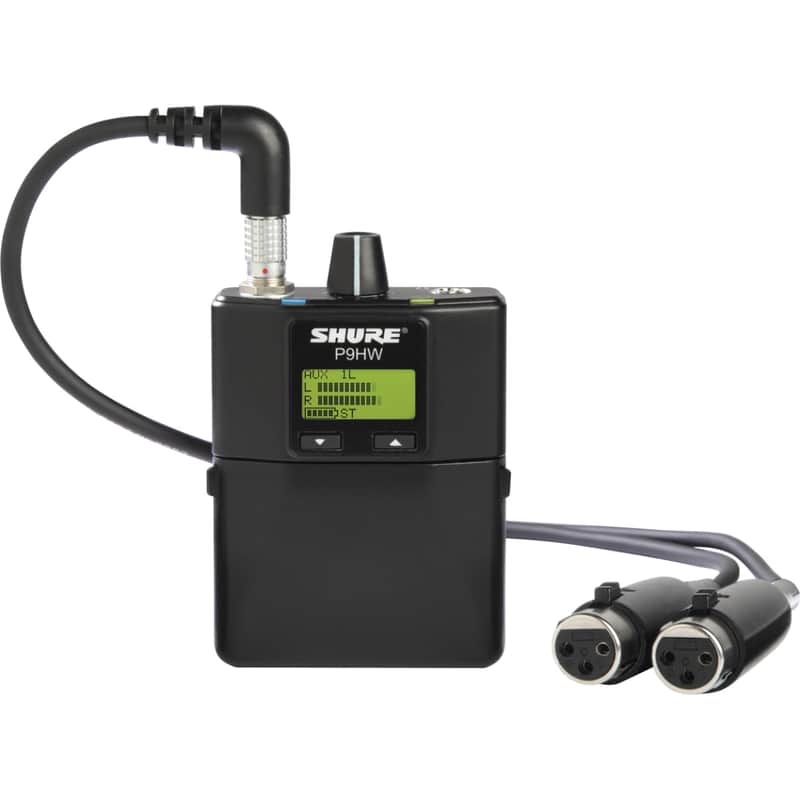

The P9HW is a wired, two-channel stereo personal monitor with individual mix controls. It delivers improved audio clarity and reduced feedback onstage versus traditional speaker wedges. Listen to one or two channels of audio from the mixing console through earphones, using MixMode technology to customize the mono blend or stereo mode to set the left/right balance. A four-band EQ and volume limiting further individualize the sound. Two standard AA batteries provide up to 9 hours of continuous use. The optional SB900 rechargeable battery (sold separately) extends runtime and allows easy in-unit charging. With a compact and rugged aluminum body, the P9HW ensures a long lifetime of use and easily clips onto a belt or guitar strap. Y-splitter cable included for connection to audio sources.

Features

• For Live Stage,Theater and Rehearsals
• Two Channel Stereo
• Runs on Two AA Batteries
• Rugged Aluminum Body
• Includes Belt Clip
• Includes Y-Splitter Cable

Specifications:

Audio Input
- Connector Type: LEMO
- Configuration: Electronically balanced

Impedance
- Line: 45 kOhms
- Aux: 66 kOhms
- Nominal Input Level: Switchable: +4 dBu (line), -10 dBV (aux)

Maximum Input Level
+4 dBu
-10 dBV
(Line): +22 dBu
(Aux): +12.2 dBu

- Phantom Power Protection: Up to 60 VDC

Audio Output
- Connector Type: 1/8" (3.5 mm)

Product Specifications
- Audio Frequency Response: 20 Hz-20 kHz (±3 dB)
- Signal-to-Noise Ratio: 98 dB (typical) A-weighted
- Total Harmonic Distortion (THD): <0.2% @ 1 kHz, typical
- Channel Separation: >55 dB @ 1 kHz
- Operating Temperature: -0.40 to 145°F (-18 to +63 °C)
- Minimum Load Impedance: 9.5 ohms
- Continuous Battery Life: 9 hours using AA batteries
- Dimensions: 3.9 x 2.6 x 0.9" (99 × 66 × 23 mm)
- Net Weight: 6.9 oz (196 g) (with batteries)

Packaging Info
- Package Weight: 1.55 lb
- Box Dimensions (LxWxH): 11.2 x 5.3 x 3.25"
