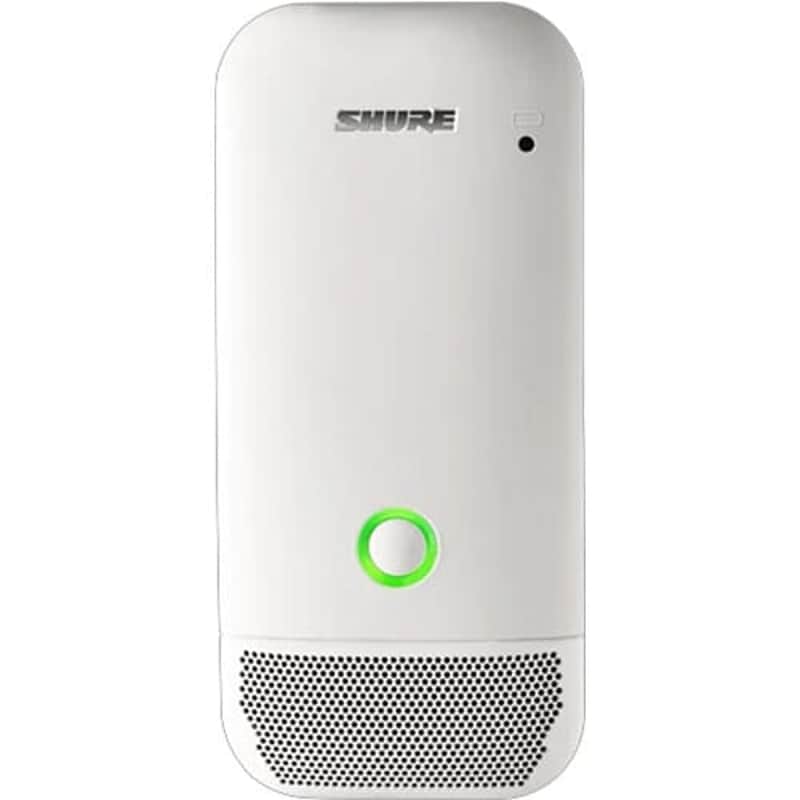

Shure ULXD6W/C=-J50A White Cardioid wireless boundary microphone for ULXD and QLXD. Includes AA Alkaline Batteries

The white Shure ULXD6/O is a digital tabletop transmitter equipped with an omnidirectional boundary mic and compatible with ULX-D receivers. The omnidirectional polar pattern provides 360° pickup, allowing several speakers at a small table to use a single mic. The unit's low profile is ideal for applications such as video-conferencing where minimum visibility is required. A smart choice for situations where wired mics are impractical, this tabletop transmitter enables quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.

With rugged, yet lightweight plastic housing, the ULXD6/O transmitter delivers pristine 24-bit/48 kHz audio quality and RF performance over its entire 330' range. It offers AES 256-bit encryption for secure transmission and advanced rechargeability options, making it suitable for use in large meetings at conference and convention centers.

Features

• For ULX-D Digital Wireless Systems
• Built-In Omnidirectional Boundary Mic
• 1/10/20mW RF Output Power
• Configurable Mute Button with Status LED
• High-Pass Filter Reduces Noise
• Secure AES-256 Encryption
• Networked Intelligent Charging
• 9 Hr with SB900A Rechargeable Battery

Specifications:

- Wireless Technology: Digital UHF
- Max Operating Range: 328.1' / 100 m
- Transmitter Type: Tabletop
- Audio I/O: No
- Microphone Type: Boundary
- Polar Pattern: Omnidirectional
- RF Frequency Band: J50A: 572 to 608 MHz, 614 to 616 MHz
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 3 ms
- Encryption: AES 256
- Modulation: Proprietary

Transmitter
- Transmitter Type: Tabletop
- RF Output Power: 1 / 10 / 20 mW
- Audio I/O: No
- Muting: Programmable Mute Switch
- Auto-Level Control: No
- Gain Range: 0 to 21 dB (3 dB Steps)

Signal Processing
- High-Pass Filter: -12 dB at 150 Hz, 12 dB/Octave Slope

- Sync Method: IR
- Antenna: 1x Internal
- Power Requirements: Battery
- Battery Type
- 2x AA (Included)
- 1x Shure SB900A (Not Included)

Approx. Battery Life
- Med.: 8 Hours (Alkaline)
- Med.: 9 Hours (Lithium Shure SB900A)

- USB/Lightning I/O: 1x USB-A (Charging, Host Connection)
- Display & Indicators: 1x LED (Mute)
- Housing: Plastic
- Dimensions: 2.4 x 1.3 x 4.5" / 62 x 34 x 114 mm
- Weight: 8.5 oz / 241 g (with Batteries)

Microphone
- Microphone Type: Boundary
- Color: White
- Sound Field: Mono
- Polar Pattern: Omnidirectional
