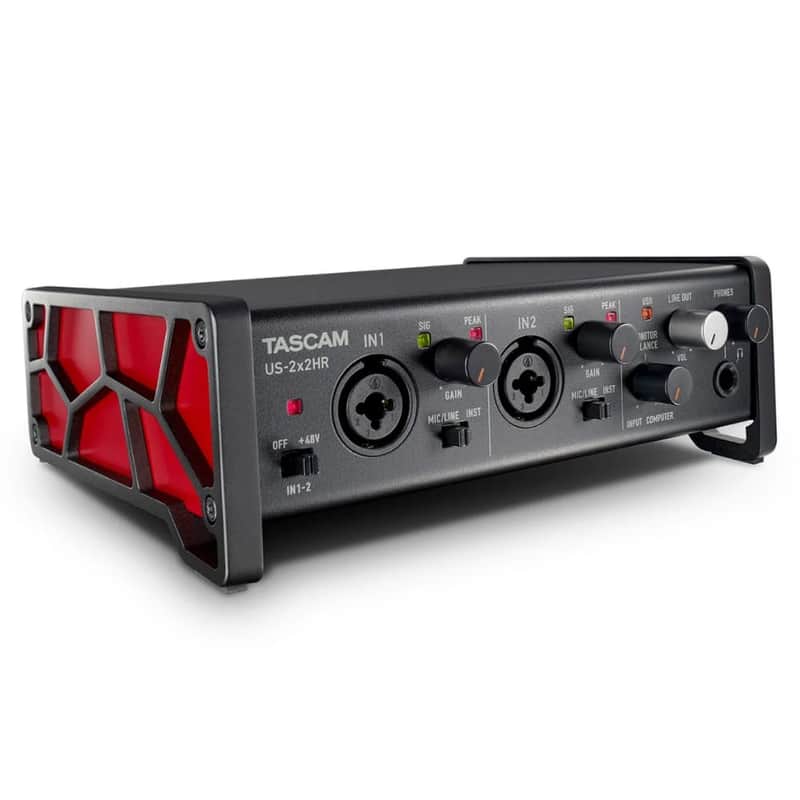

2 combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface applicable for podcasts and live streaming. The new US-2x2HR offers simple and intuitive operation plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly improved audio circuit.\n

Key Features

\n\n

\n
• 2-in/2-out USB audio interface
\n
• Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
\n
• Supports up to 24-bit/192 kHz audio formats
\n
• 2 Combo (XLR) combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
\n
• 2 Combo (TRS) line inputs with guitar input support
\n
• TRS line output 1-2
\n
• Headphone output
\n
• Equipped with MIDI IN/OUT terminals
\n
• USB Type-C connection (USB Type-A to Type-C cable included)
\n
• Powered by USB bus power
\n
• Zero-latency direct monitoring
\n
• Compatible with iPad and other iOS devices
\n
• Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
\n
• OBS support
\n

\n

Technical Specifications

\nSampling frequency\n44.1k/48k/88.2k/96k/176.4k/192k Hz\nQuantization bit rate\n24bit\nMIC IN\nIN 1 / IN 2\nConnector\nXLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED\nInput impedance\n2.2k ohms\nMaximum input level (GAIN:MIN)\n+9dBu (2.183Vrms)\nGain\n56dB\nINST IN\nIN 1 / IN 2\nConnector\n6.3mm(1/4")TS-jack(T-HOT, S-GND), UNBALANCED\n(When set to "INST" at MIC/LINE INST switch)\nInput impedance\n1M ohms or more\nMaximum input level (GAIN:MIN)\n+10dBV(3.162Vrms)\nGain\n56dB\nLINE IN\nIN 1 / IN 2\nConnector\n6.3mm(1/4")TRS-jack(T-HOT, R-COLD, S-GND), BALANCED\n(When set to "MIC/LINE" at MIC/LINE INST switch)\nInput impedance\n10k ohms\nMaximum input level (GAIN:MIN)\n+20dBu(7.746Vrms)\nGain\n56dB\nAnalog audio outputs\nLINE OUT\n1-2\nConnector\n6.3mm(1/4")TRS-jack(T-HOT, R-COLD, S-GND), BALANCED\nOutput impedance\n210 ohms\nNominal output level\n+4dBu (1.228Vrms)\nMaximum output level\n+20dBu (7.746Vrms)\nPHONES\nConnector\n6.3mm(1/4") stereo phone jack\nMaximum output level\n18mW+18mW or more\n(THD+N 0.1% or less, 32ohms loaded)\nMIDI IN /OUT\nConnector\nDin 5-pin\nFormat\nStandard MIDI format\nUSB\nConnector\nUSB Type-C\nFormat\nUSB2.0 HIGH SPEED (480Mbps)\nPower\nWhen connected PC\nUSB bus powered\nAC Adapter (TASCAM PS-P520E, sold separately)\nWhen connected iOS/iPadOS\nAC Adapter (TASCAM PS-P520E, sold separately)\nMIDI IN /OUT\nConnector\nDin 5-pin\nFormat\nStandard MIDI format\nUSB\nConnector\nUSB Type-C\nFormat\nUSB2.0 HIGH SPEED (480Mbps)\nPower\nWhen connected PC\nUSB bus powered\nAC Adapter (TASCAM PS-P520E, sold separately)\nWhen connected iOS/iPadOS\nAC Adapter (TASCAM PS-P520E, sold separately)\nPower consumption\n1.75W\nDimensions\n186(W) - 65(H) - 160(D)mm (including protrusions)\nWeight\n2.43lb (1.1kg)\nOperating temperature\n5 to 35C\nAccessories\nUSB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)
