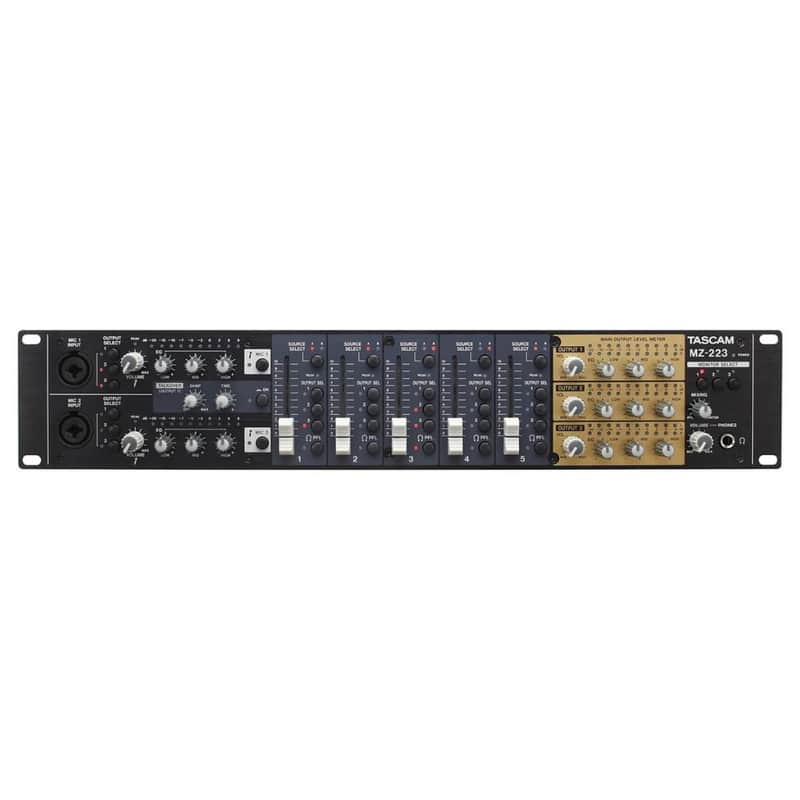

A powerful multi-channel, multi-zone mixer housed in a compact 2U desgn, The TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

Key Features

• The MZ-223 allows multiple audio sources to be mixed, segregated, and routed to 3 independent zones or destinations using familiar volume sliders and assignment buttons
• Input signals can be inserted via 5 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs
• Channels 1 and 2 can be set to accommodate phono-level signals for use with a turntable
• The independent 3-zone outputs each have a combination of balanced professional XLR or RCA unbalanced configurations for long runs or connection to common residential power amplifiers or speakers
• Familiar volume sliders, routing switches/buttons, EQ knobs, and mute buttons for the microphones make the MZ-223 simple and fast to operate and set up

Technical Specifications

MIC 1-2 INPUT (Balanced)
Connectors
XLR 3-31 / 1/4" (6.3mm) TRS combo jack × 2
(1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal input level
VOLUME knob at MAX
-65dBu
VOLUME knob at MIN
-30dBu
Input impedance
33k
LINE INPUTS (Umbalanced)
Connectors
RCA Pin jack × 10 pairs
Nominal input level
-10dBV
Maximum input level
10dBV
Input impedance
22k
Audio outputs
MAIN OUTPUTS (Unbalanced)
Connectors
RCA Pin jack × 3 pairs
Rated output level
-10dBV
Maximum output level
6dBV
Output impedance
200
MAIN OUTPUTS (Balanced)
Connectors
XLR 3-31 × 3 pairs (1: GND, 2: HOT, 3: COLD)
Rated output level
4dBu
Maximum output level
24dBu
Output impedance
200
MONITOR OUT
Connectors
RCA Pin jack × 1 pair
Rated output level
-16 dBV
Maximum output level
0dBV
Output impedance
200
PHONES
Connectors
1/4" (6.3mm) Sstereo phone jack × 1
Maximum output
50mW + 50mW (into 32 load)
Power
AC adapter (TASCAM PS-M1524)
Input voltage
AC 100 - 240V, 50/60Hz
Output voltage
DC 15V
Output current
2.4A
Power consumption
35W
Dimensions (W×H×D)
19.0" × 5.2" × 3.7" / 482 × 88 × 93.2 mm
Weight
5.5 lbs. / 2.5 kg
Accessory
AC adapter (TASCAM PS-M1524), Cord for AC adapter (JAPAN USA/EUROPE) × each1, Rackmount screw kit, Owner's Manual (including warranty)
