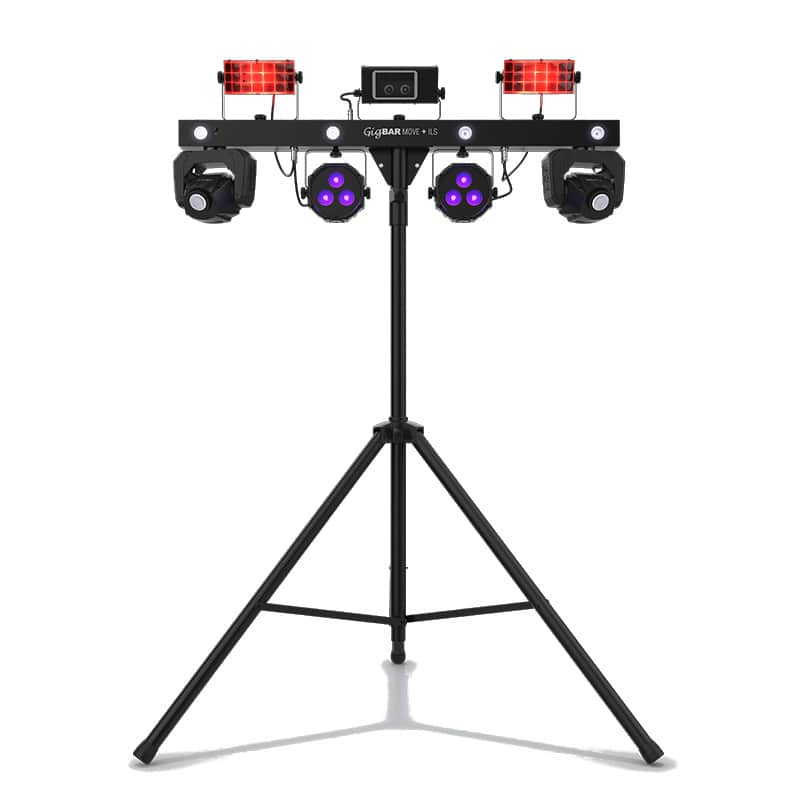

Chauvet DJ GIGBARMOVEPLUSILS 5-in-1 Moving Head/Derby/PAR/Strobe/Laser System with ILS

Chauvet DJ GigBAR Move + ILS Includes:

• GigBar Move Plus ILS
• Power cord
• RF Remote
• Carry bag
• Tripod
• Tripod carry bag
• Footswitch
• User Manual

Chauvet DJ GigBAR Move + ILS Features:

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wired or wirelessly (sold separately)
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all moving head functions directly from the full-color LCD display
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Chauvet DJ GigBAR Move + ILS Specifications:

• DMX Channels: 3, 28, or 50
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/180°
• Colors: 9 + open, split colors, continuous scroll at variable speeds
• Gobos: 9 + open, continuous scroll at variable speeds
• Light Source:
  • PARs: 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
  • Strobe: 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
  • Derby: 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
  • Moving head: 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
  • Laser: 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
• Strobe Rate: 0 to 30 Hz
• Beam Angle:
  • Moving head: 17°
  • PARs: 22°
  • Strobe: 30°
• Field Angle:
  • PARs: 33°
  • Strobe: 62°
  • Coverage Angle:
  • Derby: 131°
  • Laser: 93°
• Fits Tripod Size: 1.5 in (37.4 mm)
• Illuminance:
  • PARs: 1,205 lux @ 2 m (per PAR)
  • Moving head: 5,140 lux @ 2 m (per head)
  • Strobe: 130 lux @ 2 m
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 81 W, 1.1 A @ 120 V, 60 Hz
  • 79 W, 0.6 A @ 230 V, 50 Hz
  • 248 W, 1.8 A @ 230 V, 50 Hz
• Approvals: CE, UKCA, RoHS, FCC, FDA
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100' (30.5 m)
• Footswitch Battery: 9 V alkaline
• Included Controllers: RF remote, wireless footswitch
• Weight (bar only): 31 lbs (14 kg)
• Size: 43" x 5.7" x 17.7" (1100 x 144 x 449 mm)
• Stand Height: 4.8' to 8.3' (1.5 to 2.5 m)
• Cable Length: 10' (3 m)
• Tripod Thickness: 1.37" (35 mm)
