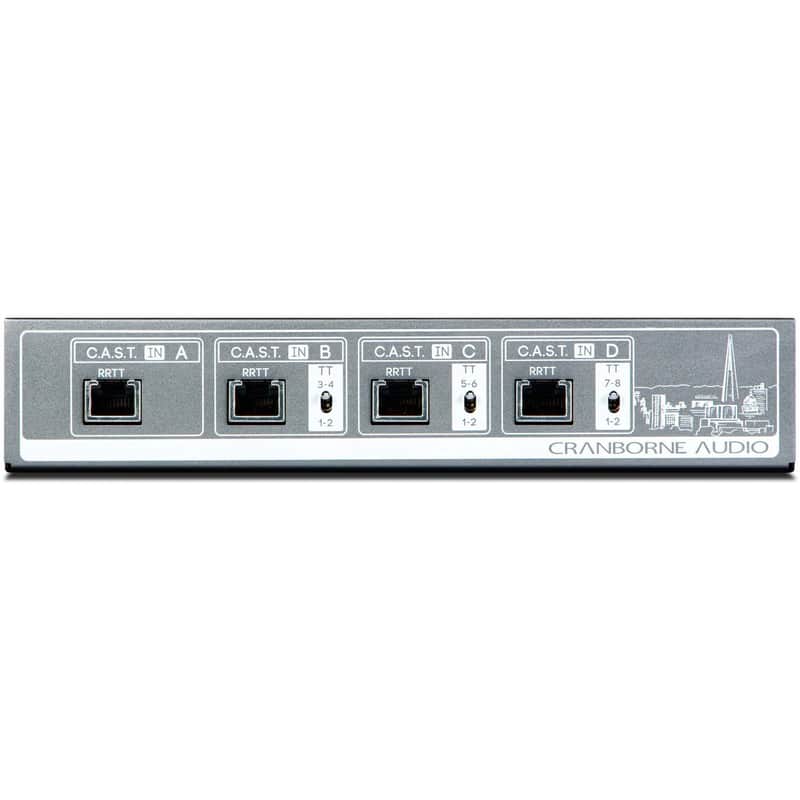

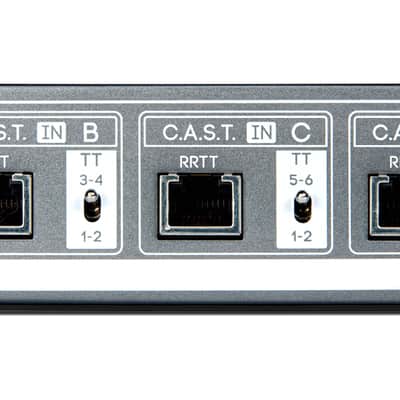

N8 is an advanced audio distribution hub that uses Cranborne Audio’s C.A.S.T. system to transform network cable (Cat 5e, Cat 6, or Cat 7) into 4-channel analogue snakes and breakout boxes that can be routed around the studio or stage. Featuring Input and Output connectors on DB25, N8 converts 8 analogue inputs and 8 analogue outputs to Cranborne Audio’s proprietary C.A.S.T. system and creates ingenious, plug-and-play signal routing with any other C.A.S.T.-enabled product. With 4 dedicated C.A.S.T. ports, N8 allows up to 4 Cranborne Audio breakout boxes to be connected at once for 16 channels of audio routing with any audio interface, mixer, or audio installation. As each C.A.S.T. port is bi-directional, 2 inputs and 2 outputs are sent/received through each C.A.S.T. connector and cable to allow for dual recording and monitoring capabilities. Connect a Cranborne Audio N22H* to an N8 and you can put a performer, vocal mic, and headphones in one room, whilst receiving the vocal mic signal and sending a headphone mix from a completely different room - all with just one Network cable! Or use N8 with 4x N22H’s to send headphone mixer to musicians located around the live room or next door. As C.A.S.T. works at distances up to 100m/330ft, you can be connected anywhere at home or on the road. With dedicated C.A.S.T. output routing switches on the front panel, each C.A.S.T. connection on N8 can send the same stereo signal from inputs 1-2 to all connected C.A.S.T. devices or separat
