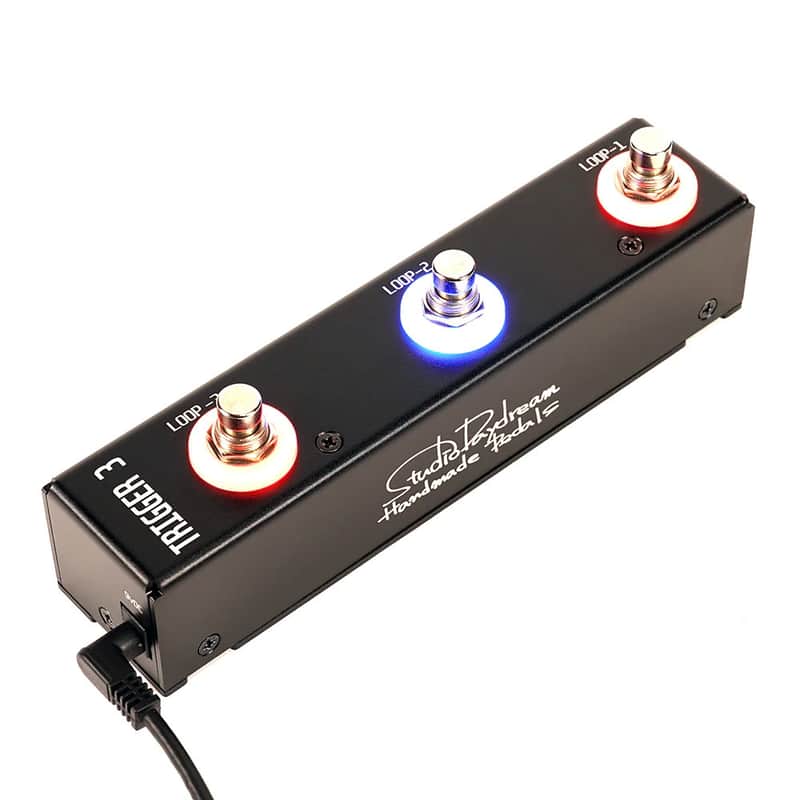

Studio Daydream Triggers V4.0 LED 3-Loop Switcher

A switcher with 3 send and return loops.

Has been slimmed down further with Rev. 4, making it perfect for use on boards with little space.

Featuring true bypass, which does not go through active circuits, the internal switching mechanism uses mechanical relay to keep switching noise at a minimum while using true bypass.

From this version it is possible to choose light emitting mode for the switches and switching modes.

Starting setting mode

While pushing LOOP-3 switch, turn on the power (connect DC cable or turn on attached power supply) to enter setting mode.

When setting mode has started successfully, the LOOP-3 switch will flash red three times, then please release the switch.

Operation in setting mode

LOOP-1 switch :
Select switching mode. The following two modes are available.
Normal Mode (LOOP-1 Red) :
Each loop is switched independently.
Single Mode (LOOP-1 Blue) :
Only one loop is enabled

LOOP-2 switch :
Change switch light emitting mode.
The ON color is shown on LOOP-2, and the bypass color is shown on LOOP-3.
The following three light emitting modes are available.
(ON/Bypass) :
(Blue/Red), (Blue/Off), (Red/Off)

LOOP-3 switch :
Pushing will make blue flash three times, saving the settings and finish setting mode.

Specifications:

• True Bypass
• 3 loops
• Power consumption : DC9V / approx. 190mA
• Power spply : 006P battery or power supply [Center negative DC9V out, 2.1mm pin]
• Dimensions : approx. D1.8” x W7.3" x H2.3” [D45mm x W185mm x
• H57mm] (Including the convex parts like the jacks, the switches, etc.)
