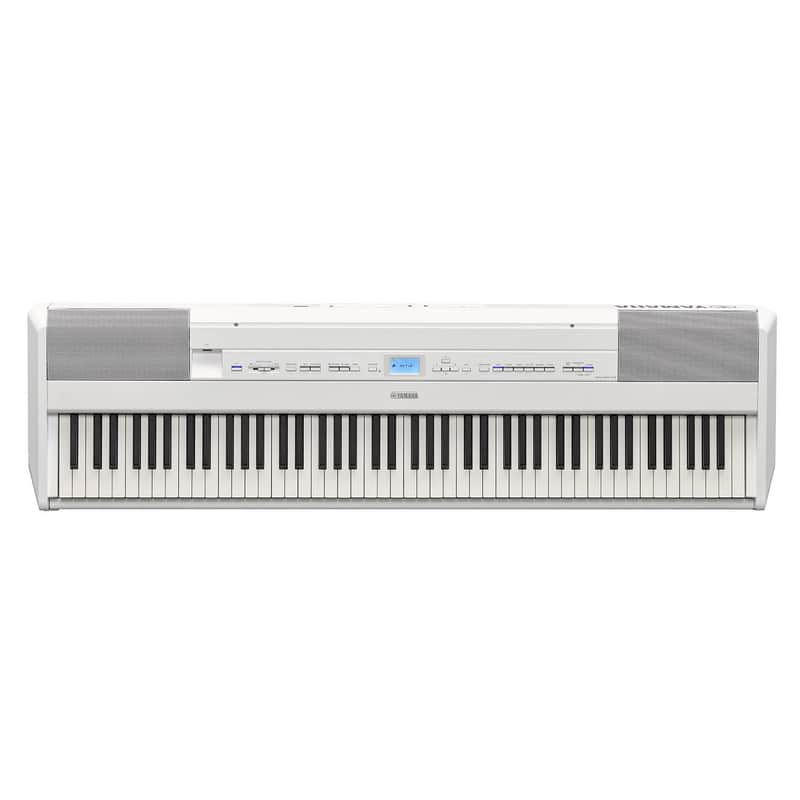

With P-515, enjoy the exquisite beauty of the sought-after tones that the CFX and Bösendorfer Imperial concert grand pianos deliver.

Over 500 Voices means you have a wide selection of sounds to choose from, allowing you to create and perform in any musical genre.

Natural Wood X (NWX) keyboards are created using unrivaled expertise that Yamaha has acquired through more than a century of crafting acoustic pianos. This expertise combines with cutting-edge digital technology for an authentic piano playing experience that only Yamaha can provide.

The elegant, yet compact and portable design makes the P-515 an attractive addition to your music-making space at home, and a reliable, eye-catching instrument to bring to the stage.

Technical Specifications

Size/Weight
Dimensions
Width
1336mm (52-5/8" )
Height
145mm (14-13/16" )
Depth
376mm (5-11/16")
Weight
22.0kg (48 lb, 8 oz)
Number of Keys
88
Type
NWX (Natural Wood X) keyboard: wooden keys (white only), synthetic ebony and ivory keytops, escapement
Touch Sensitivity
Hard2/Hard1/Medium/Soft1/Soft2/Fixed
Display
Full Dots LCD
Size
128 x 64 dots
Panel
English
Voices
Piano Sound
Yamaha CFX, Bösendorfer Imperial, CFX Binaural Sampling
Binaural Sampling
Yes (CFX Grand Voice only)
Key-off Samples
Yes
Smooth Release
Yes
Virtual Resonance Modeling (VRM)
Yes
Polyphony
256
Preset
40 Voices + 18 Drum/SFX Kits + 480 XG Voices
Effects
Reverb
6
Chorus
3
Intelligent Acoustic Control (IAC)
Yes
Stereophonic Optimizer
Yes
Dual/Layers
Yes
Split
Yes
Duo
Yes
Metronome
Yes
Tempo Range
5 - 500
Transpose
-12 - 0 - +12
Tuning
414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
Rhythm
40
Storage and Connectivity
Internal Memory
Total maximum size approx. 1.4 MB
External Drives
USB Flash Memory (optional)
Connectivity
DC IN: 16V
Headphones: Standard stereo phone jack (x 2)
Sustain Pedal: Yes
Pedal Unit: Yes
MIDI: In/Out
AUX IN: Stereo mini jack
AUX OUT: [L/L+R][R]
USB TO DEVICE: Yes
USB TO HOST: Yes
Bluetooth
Audio: Yes
MIDI: Yes
Amplifiers
(15 W + 5 W) x 2
Speakers
(Oval (12 cm x 6 cm) + 2.5 cm (dome)) x 2
Power Supply
PA-300C or an equivalent recommended by Yamaha
Power Consumption
15 W
Auto Power Off Function
Yes
Included Accessories
Music Rest
Yes
Pedal/Footswitch
FC4A
Songs (Audio)
Recording Time
80 minutes/Song
Compatible Data Format
Recording: WAV (44.1 kHz, 16 bit, Stereo)
Playback: WAV (44.1 kHz, 16 bit, Stereo)
Songs (MIDI)
Number of Preset Songs
21 Voice Demo Songs + 50 Classics
Recording
Number of Songs: 250
Data Capacity
Approx. 500 KB/Song
Format
Playback: SMF (Format 0, Format 1)
Recording: SMF (Format 0)
