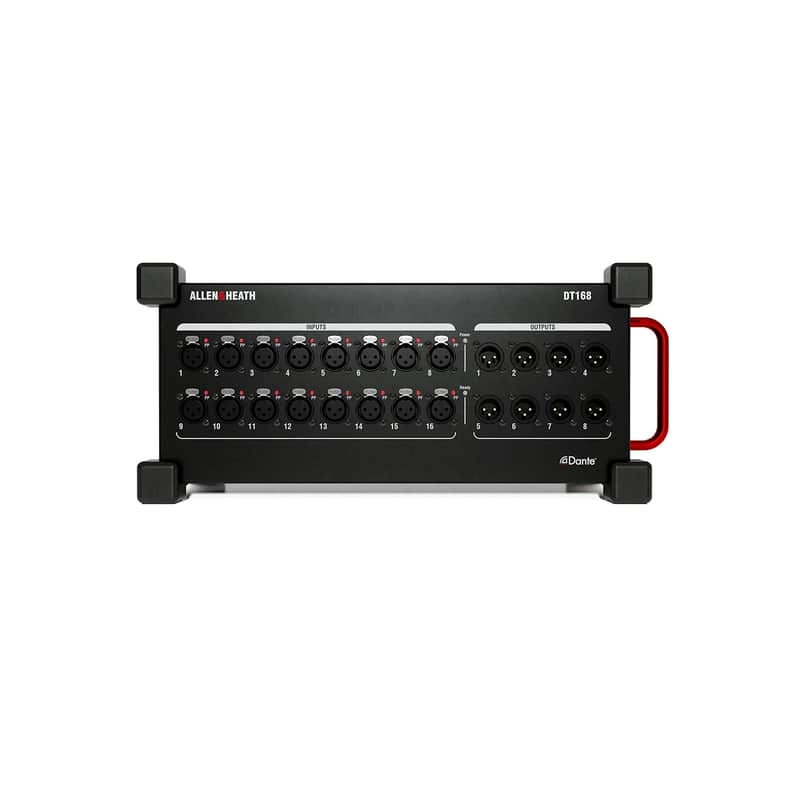

The DT168 provides 16 microphone preamps and 8 line outputs in a convenient stagebox form factor. Ideal for portable applications thanks to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any SQ, Avantis or dLive Dante network.\n\nDT168 offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.\n\nUp to 16 units can be added to an SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.\n

Key Features

\n\n

\n
• Dante audio expander, 96kHz / 48kHz
\n
• Portable stagebox design
\n
• 16 mic preamps on XLR with Phantom Power status LEDs
\n
• 8 XLR Line Outs
\n
• Primary and Secondary Dante ports with locking EtherCon
\n
• Redundant or Switched mode
\n
• Direct preamp control from dLive, Avantis and SQ
\n
• Optional 19-inch rack mount kit available
\n
• Rubber bumpers and carry handle
\n
• AES67 compatible
\n
• Dante Domain Manager ready
\n

\n

Technical Specifications

\nMic/Line XLR Inputs\nBalanced, +48V Phantom Power\nMic/Line Preamp\nFully recallable\nInput Sensitivity\n-60 to +15dBu\nAnalogue Gain\n+5 to +60dB, 1dB steps\nPad\n-20dB Active PAD\nMaximum Input Level\n+30dBu (PAD in)\nInput Impedance\n>4k OHM (Pad out), >10k OHM (Pad in)\nMic/Line Channel noise\n22-22kHz, Direct Out @ unbalanced out\nMic EIN\n-127dB with 150 OHM source\nUnity gain (Pad in)\n-90dBu\nLow gain (5dB, Pad out)\n-96dBu\nMid gain (30dB, Pad out)\n-90dBu\nMic/Line Channel THD+N\n22-22kHz, Direct Out @ unbalanced out\nUnity gain (Pad in)\n0.003% -88dBu @ 1kHz, 0dBu output\nLow gain (5dB, Pad out)\n0.002% -93dBu @ 1kHz, 0dBu output\nMid gain (30dB, Pad out)\n0.003% -88dBu @ 1kHz, 0dBu output\nAnalogue XLR Outputs\nBalanced, Relay protected\nOutput Impedance\n<75 OHM\nNominal Output\n+4dBu = 0dB meter reading\nMaximum Output Level\n+22dBu\nResidual Output Noise\n-92dBu (muted, 20-20kHz)\nSample rate\n48kHz or 96kHz\nBit Depth\n24 Bit\nGain, Pad, 48v Control\nAllen & Heath dlive or SQ system\nOperating Temperature\n0 deg C to 40 deg C\n(32 deg F to 104 deg F)\nMains Power\n100-240V, 50/60 Hz, 40W max\nDimensions and Weight Width x Depth x Height x Weight\n410mm x 190mm x 185mm x 4.6kg\n(16.1†x 7.5†x 7.3†x 10.1lbs)
