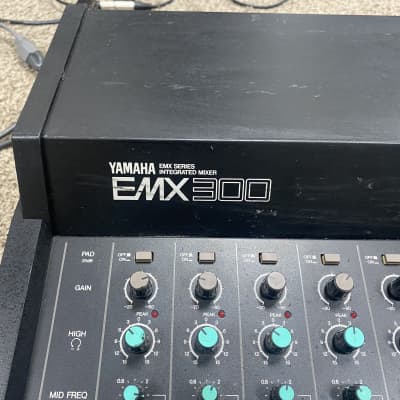

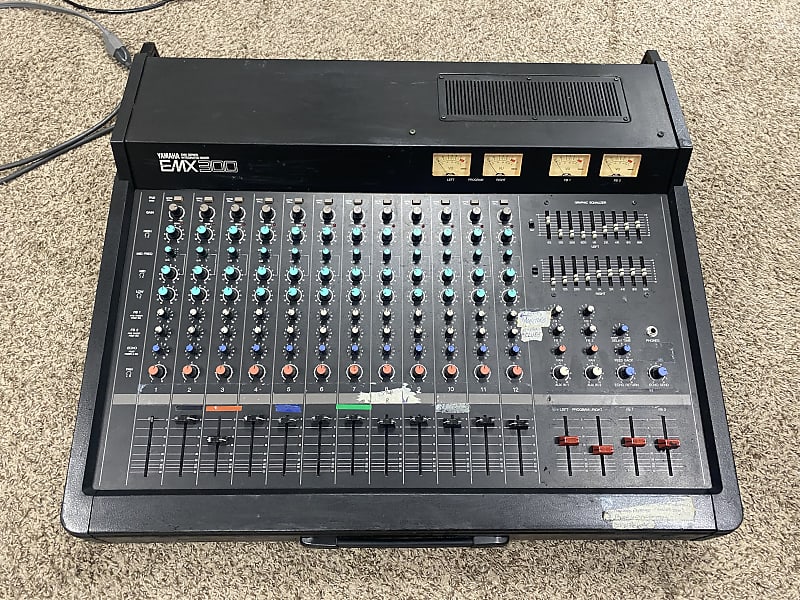

Yamaha EMX300 12 Channel/3 Buss 250W Stereo Powered Mixer 1980's

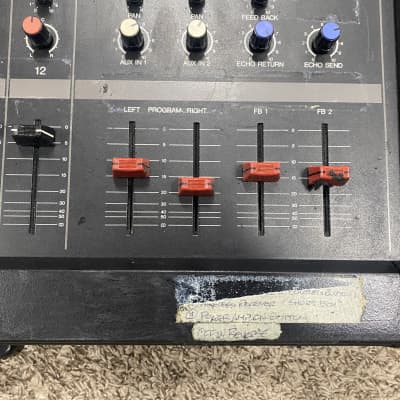

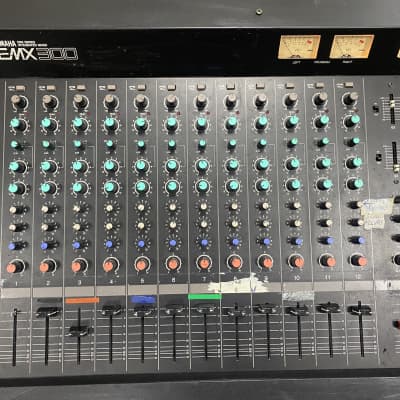

Unit seems to be in good working condition, although I have not tested every last input or output (like the power amp in). The built in power amp works well and so do the Delay and echo. One fader cap is missing. See photos for overall cosmetic condition. OFFERS WELCOME!!!

• 250W per speaker into 4Ω (170W per speaker into 8Ω)
• Hi-Z (TRS 10kΩ) and Low-Z (XLR 1kΩ) inputs for each channel
• 3-band semi-parametric EQ (8kHz high shelf, 350Hz-5kHZ mid peak, and 100Hz low shelf all +/-15dB)

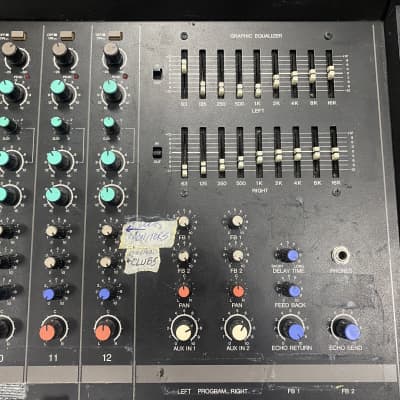

• Switchable 9-band master graphic EQ (63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz) independent to Left and Right channels
• FB1 and FB2 effect send (pre-fader, post EQ)
• Echo effect send (post fader and EQ)

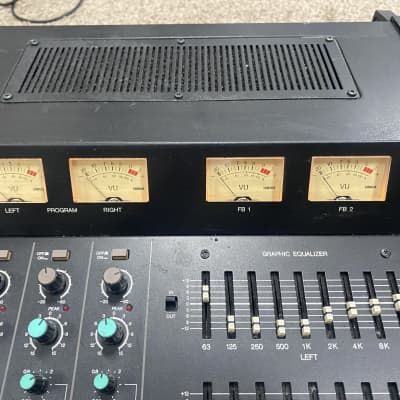

• L and R program output VU meters w/ backlight
• FB1 and FB2 send VU meters

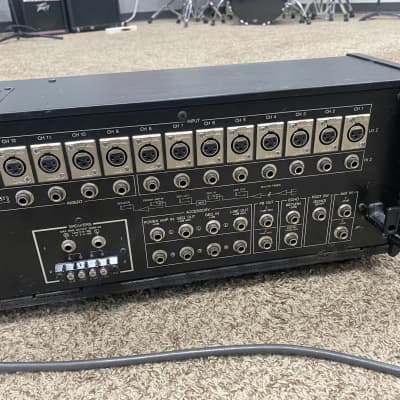

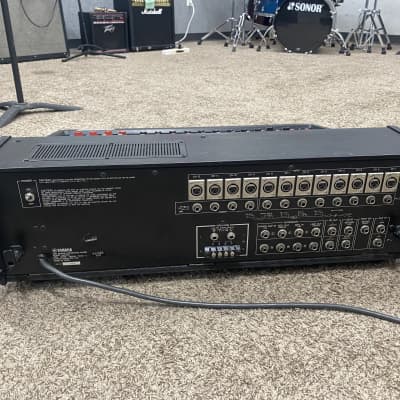

• I/O Complement:
• (12) Lo-Z XLR inputs
• (8) Hi-Z TRS inputs (unbalanced)
• (4) TRS channel inserts
• (2) TRS Aux In (-20dB)
• (1) Echo On/Off TS footswitch jack
• TRS echo send and return jacks
• FB1 and FB2 TRS output jacks (+4dB)
• L and R TRS line out
• L and R Graphic EQ in
• L and R Graphic EQ out
• L and R Power Amp in

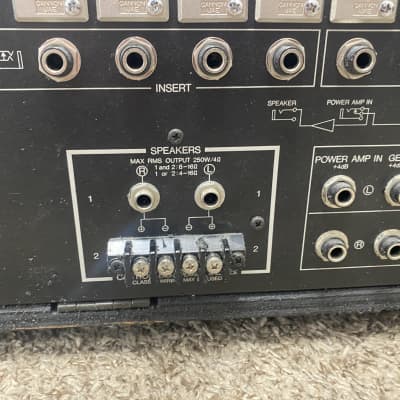

• L and R speaker outputs
• L and R raw wire speaker terminals
• 31" x 27" x 10" dimensions
• 77lbs
