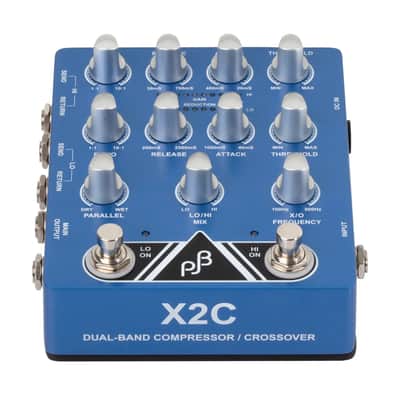

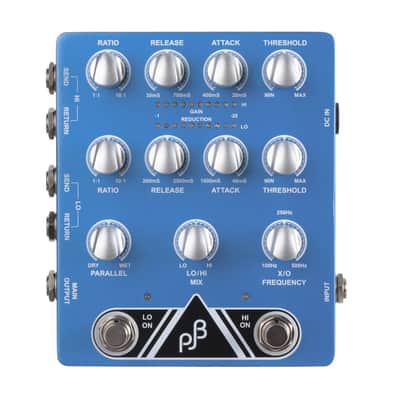

PJB X2C PedalMultifunctional Dual Band Compressor

Dual Compressor with Dual effects loop Crossover for performance and recording

Phil Jones Bass latest pedal innovation is the X2C Dual Compressor with Dual Effects Loop for performance and recording. The X2C incorporates advanced compressor circuit technology and provides comprehensive tone control with a dual crossover feature which divides the signal into frequency bands ranging from 100Hz to 500Hz, ensuring exceptional clarity and dynamics in tone refinement.

With insert jacks on each band, the X2C unlocks limitless creativity, enabling players to use various FX pedals for custom tone sculpting. Additionally, it functions as an electronic crossover, ideal for driving high-performance, 2-way bass rigs.

PJB’s Dual-Band compression design is more flexible than standard single-band compressors and provides a more natural and transparent sound. It also provides greater control over shaping and managing dynamics where standard compressors affect the entire frequency spectrum of an audio signal.

PJB’s dual compressor enables the player to shape specific frequency ranges of an audio signal which allows for compressing the low frequencies while preserving the high frequencies, or vice-versa. Treating the low-end with a dedicated band also allows for heavy compression without affecting the midrange frequencies, which carry the attack of the sound.

Effects can be plugged into the insert jacks on the X2C and controlled separately. As an example, the lows can be adjusted separately for an overdrive pedal while the highs can be controlled for a chorus.

Dividing the audio spectrum into fundamental frequencies and harmonics is also effective in the enrichment of slapping techniques. The low frequencies can be compressed without changing the dynamics of the “slapâ€. By controlling the low frequencies and focusing the attack on the slap the amplifier will sound louder while avoiding overloading of the amp or speakers. The low band can be compressed without the harmonics being affected. In addition, the send jacks can go to different amplifiers/speakers for a bi-amplification set up.

Compact and potent, the X2C embodies studio-grade excellence, setting a new standard for dynamic processing in an uncompromising, portable pedal.

Model X2C

input impedance 220KΩ

maximum input level 2V

maximum output level 2V

gain width -16dB to +16dB

noise -85dBu(Level at Max)

frequency response 10-25KHz

Type of compressor VCA compression

threshold 1:1 – 10:1

attack-release HIGH attack (400mS-20mS), release (30mS-700mS)

LO attack (1000mS-40mS), release (200mS-2500mS)

crossover type 2D RC divider 100Hz-500Hz

power supply DC9V adapter center negative 1000mA or more recommended

power consumption Max 680mA

size 120(W) x 40(H) x 144(D)mm (excluding protrusions)

weight 550g
