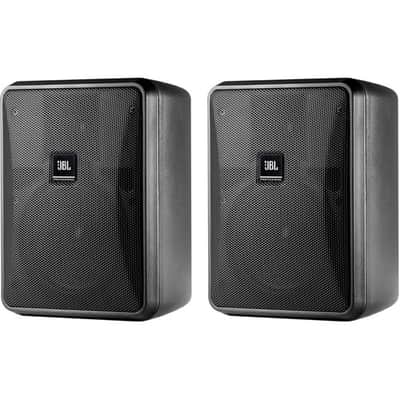

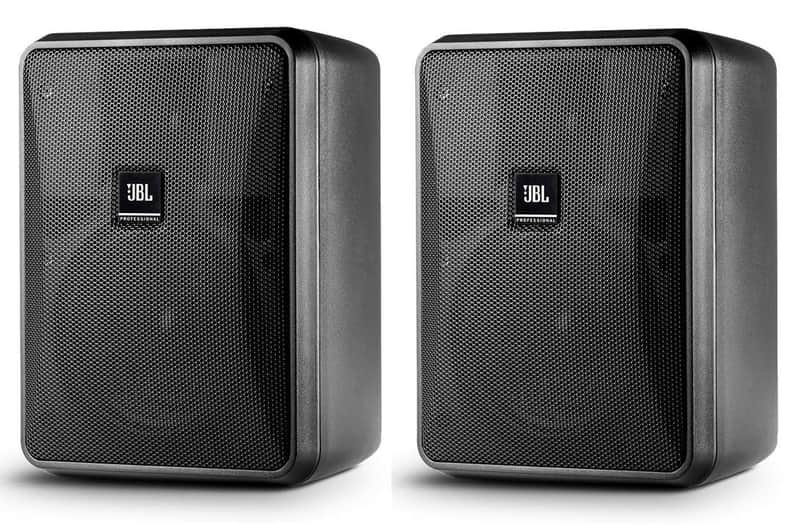

JBL CONTROL 25-1L | Low Impedance 8 Ohm Background Speaker Black Pair

The Control 25-1L is a two-way 5-1/4" speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Key Features

• 5-1/4" woofer with woven fiberglass cone
• 3/4" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100 degrees x 100 degrees coverage
• 100 Watt power handling (200 Watt program)
• High fidelity sound character with broad frequency response of 60 Hz - 20 kHz.

Technical Specifications

Frequency Range (-10 dB)
60 Hz to 20 kHz
Frequency Response (+/-3 dB)
85Hz - 17 kHz
Power Rating
200 W Continuous Program (2 hrs)
Maximum Input Voltage
25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL
110 dB ave. Continuous Pink Noise (116 dB peak)
Sensitivity
90 dB, 1W/1m (ave. 100 Hz - 10 kHz)
Coverage Angle
100 degrees x 100 degrees
Directivity Factor (Q)
6.04 (averaged 1kHz - 16kHz)
Directivity Index (DI)
7.6dB (averaged 1kHz - 16kHz)
Nominal Impedance
8 ohms
Crossover Type
2nd order low-pass, 3rd order high-pass
Recommended Protective High-Pass
60 Hz high-pass (24 dB/oct)
Low Frequency Driver
135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Driver
19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
Enclosure Material
High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille
Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
Installation
InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Environmental
IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.
Termination
Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating
ROHS-compliant
Colors
Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D)
243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight
3.0 kg (6.7 lbs)
Shipping Weight
7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)
Included Accessories
InvisiBall wall-mounting system, 6 mm x 100 mm hex key
Optional Accessories
MTC-25UB-1 - Yolk-type U-bracket (&-WH)
