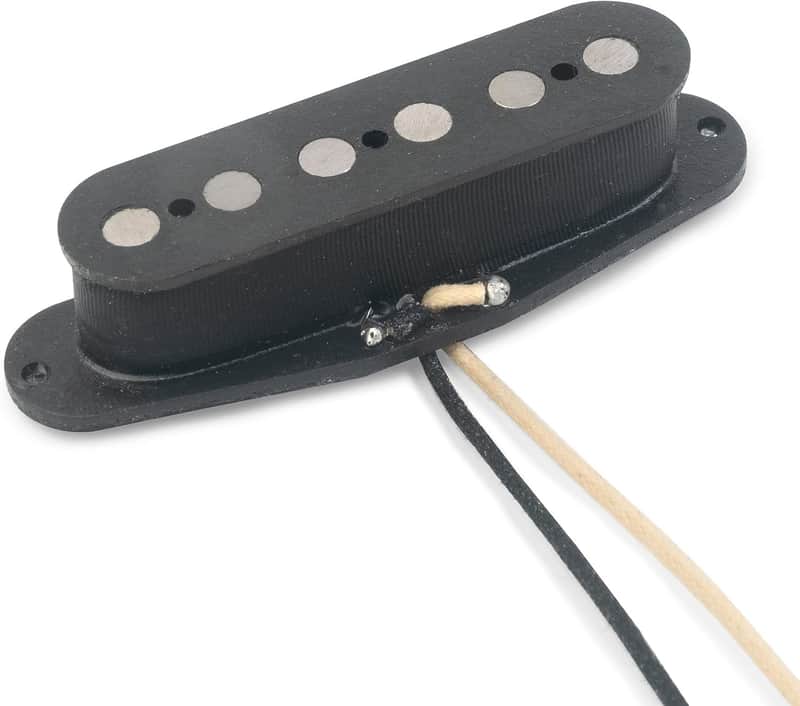

StewMac Fat Pole Single-coil Pickup, Middle Position, Black Exposed Coil

StewMac Fat Pole Single-coil Pickups

Want a fatter sound and single-coil clarity? These fat pole pickups deliver huge tone with rich harmonics all in a standard Strat-size single-coil pickup.

Single-coil bite with more punchSingle-coils have a wonderful sound that is bright and clear, but sometimes it's just too harsh. That's where these fat pole pickups shine. The large polepieces capture more of the string vibration, smoothing out the tone, giving the guitar a fuller, more even response across the strings.

The large Alnico 5 magnets round out the treble and bass frequencies for a bolder, more vibrant tone. And they pack a massive mid-range punch! It's just right for beautiful cleans and overdriven sounds that don't get muddy.

They're custom-wound for each position for a balanced tone. The middle-position pickups are reverse wound, reverse polarity, for hum cancellation at the #2 and #4 switch positions.

Specifications

Medium output single-coil pickup

Polepiece spread: 2.062" (54.4mm)

Poly-coated Formvar 42 AWG coil wire

Potted to suppress noise

Alnico 5 magnets

Push-back cloth-insulated lead wires


Neck Position

Output: 5.6K range

Polarity: South

Winding: Standard


Middle Position

Output: 6.4K range

Polarity: North

Winding: Reverse (RWRP)


Bridge Position

Output: 8K range

Polarity: South

Winding: Standard

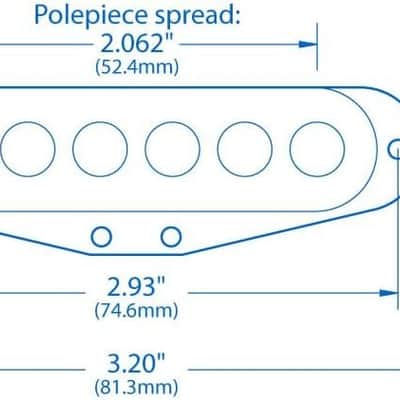

Dimensions

Length including mounting tabs: 3.20" (81.3mm)

Mounting screw spacing: 2.93" (74.6mm)

Width: 0.70" (17.8mm) not including bottom flatwork


Mounting screws, compression tubing, and wiring diagrams are included.
