Audio Technica AT-MX341a Automatic Smart Mic Mixer, AC Power, New Guaranteed

 If you win this listing, you will have in your hands a Beautiful piece of engineering and craftsmanship, as Audio Technica does so well.

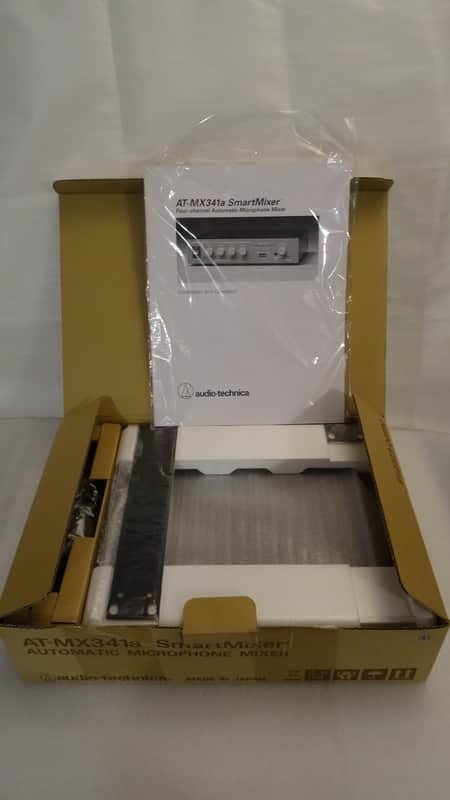

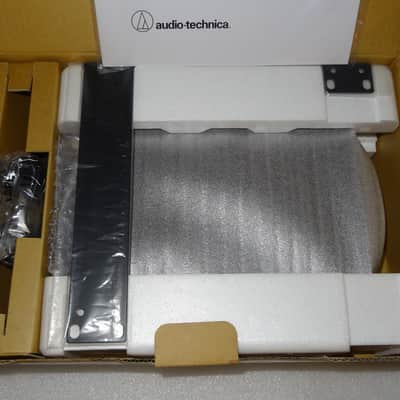

 This listing is for an Audio Technica AT-MX341a  4 channel Automatic Smart Mic Mixer. It is brand new, factory packed. It includes 19" rack mount brackets, printed operations manual and AC power supply.

  Multiple units can be daisy chained together, I have 3 available, this listing is for 1.

    I purchased it to have as a backup but didn't use it. It's time to start clearing out all my un-need equipment and hope someone else has a need for it. I have used Audio Technica equipment for many many years and have always been very happy with the sound quality, features and reliability. There are Specifications and Features listed for you below. This is a Professional unit with Professional sound and build quality.  If you would like to review my 100% positive feedback from my long history with eBay my id is tjk545. Please check out my other listings. Thank you, Tim

 Audio Technica AT-MX341A

The AT-MX341a automatic mixer is ideal for meetings, seminars, teleconferencing, worship services, radio and TV broadcasting and A/V applications. All switching is under microprocessor control with proprietary algorithms for instant, seamless operation. An individual priority pre-select switch for each mic/line channel allows choice of one-channel-at-a-time operation, all channels active, or any mix of moderator override. The last microphone on stays on so that ambient sound is never muted. Plus, any number of SmartMixers can be linked to create a system for large multi-mic installations. The priority control system extends throughout the entire chain.

Features

• Four Mic/Line inputs with individual priority pre-select switch for each channel
• Balanced inputs and output are individually switchable between mic and line-level
• Single threshold setting for all channels
• Individual gain controls for each channel
• Switchable manual mode overrides automatic functions
• Master output level control
• TTL logic output signals available to control speaker or camera switching, tally lights, etc.
  12V phantom power individually selectable for each channel
• Off attenuation for each input adjustable to -20 dB
• Output level meter with Peak and RMS modes
• Mounts in a single 19" half-rack space
• Includes rack mount adapters

SPECIFICATIONS Input ImpedanceMic: 4,000 ohms
Line: 30,000 ohmsOutput ImpedanceLine: 200 ohms
Mic: 320 ohmsMaximum Input LevelMic: -20 dBV
Line: +30 dBVMaximum Output LevelLine: +14 dBm (600 ohms)
Mic: -40 dBm (600 ohms)Nominal Output Level(0VU)
Line: +4 dBm (600 ohms), +4.4 dBV (open circuit)
Mic: -46 dBm (600 ohms), -44 dBV (open circuit)Maximum Gain>=70 dBFrequency Response60 Hz to 30 kHz at -3 dB pointsDynamic Range75 dB ±10 dB, dependent upon gain control settingsEquivalent Input Noise-120 dBV (150 ohms) at maximum gainInput Attenuation10 dBMic/Line Input Pads50 dBMicrophone Phantom Power+12V DCControl Voltage Out+4V DCPower Supply12V AC or 15-18V DC, either polarity; 150 mA, minimumOperating Temperature32° to 104° F (0° to 40° C)Dimensions8.25" (210 mm) W x 9.38" (327 mm) D x 1.75"
(44 mm) H (including feet, knobs and connectors)Weight3 lbs. 7 oz (1.6 kg)Accessories IncludedAC adapter, AT8325/1.0 Link CableOptional AccessoryAT8628 Double Rackmount Joining Plate

SKU: AT-MX341A
