Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers we set out to develop a modern guitar speaker capable of handling much more power and overdrive. To achieve this we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

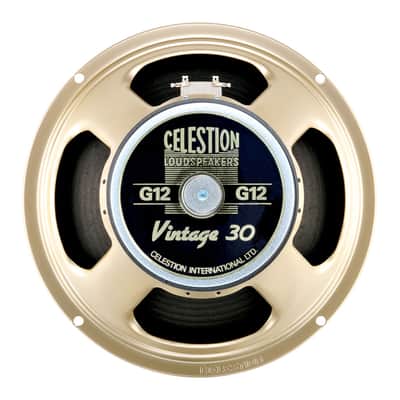

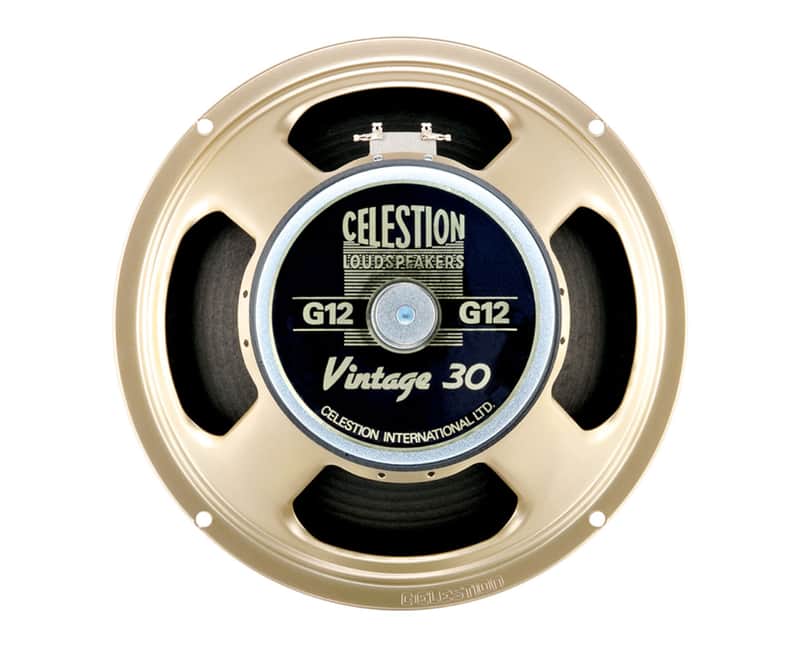

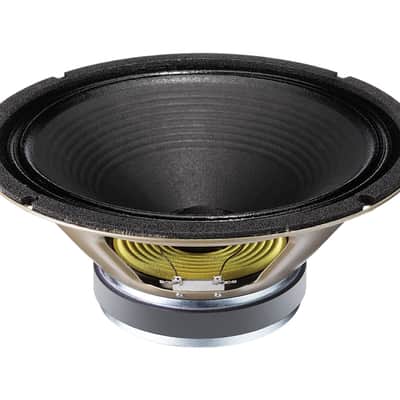

Our most revealing speaker the Vintage 30 features enormously detailed and complex overtones a warm low-end a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand-wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash Steve Stevens and Peter Frampton.

Features

• Nominal diameter : 305mm / 12in
• Power rating : 60W
• Rated impedance : 8O or 16O
• Sensitivity : 100dB
• Chassis type : Pressed steel
• Magnet type : Ceramic
• Voice coil diameter : 1.75in / 44mm
• Voice coil material : Round copper
• Frequency range : 70-5000Hz
• Resonance frequency, Fs : 75Hz
• DC resistance, Re : 7.3O or 12.9O

Mounting Information

• Cut-out diameter : 283mm / 11.1in
• Diameter : 309mm / 12.2in
• Magnet structure diameter : 156mm / 6.1in
• Mounting hole dimensions : 7.9mm / 0.31in Ø
• Mounting hole PCD : 297mm / 11.7in
• Number of mounting holes : 4
• Chassis depth (inc gasket) : 97mm / 3.79in
• Magnet depth : 38mm / 1.51in
• Overall depth : 135mm / 5.3in
