Thanks for shopping with Upper Room Music LLC and URGuitars.com. We are and authorized J. Rockett dealer and you will receive full factory warranty with this product.

The Archer Select is truly the most versatile K style overdrive yet. Featuring the ability to switch between 7 diodes ranging from lowest to highest output using the clipping knob and left footswitch players can create endless combinations of K style tone from boosts to stacked drives and beyond

Featuring the diodes of the Archer, iKon, Jeff Mod Archer and 4 additional diodes including LED the Archer Select will provide endless tonal combinations

In addition to the overdrive section, a D.I. Speaker Simulator based on a British 4X12 cabinet is built in to monitor the OD sound via direct or have the option for direct recordings. The ground switch is added only for this section for a silent setup.

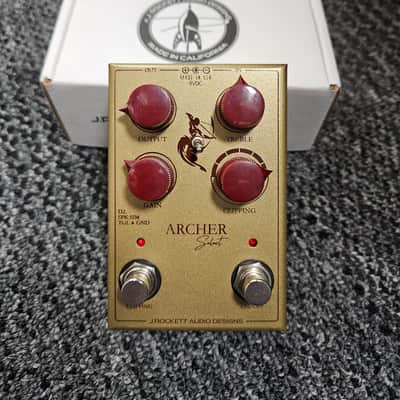

Controls

Output: Controls overall volume output

Gain: Controls the amount of gain

DI Output and Speaker Simulation: Provides a direct output with speaker simulation for monitoring or recording

Clipping Switch: Engages your selected clipping diode. When off it defaults to the stock diode

Treble: Controls the high end

Ground Switch: Ground lift for D.I.

Clipping Switch: Allows for 6 additional clipping diode options operated by the “Clipping” foot switch

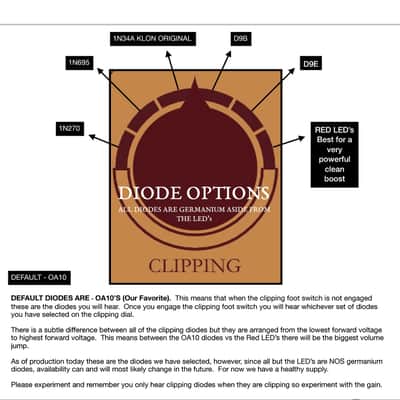

Clipping Order: OA10 (Right footswitch default), 1N270, 1N695, 1N34A, D9B, D9E, Red LED

Size & Power

4.25″ x 2.75 x 1.25″

9 volt Negative tip adapter and a 5.5mm x 2.1mm jack.

28mV Current Draw

Inputs & Outputs

Input

Output

1/4″ DI Output
