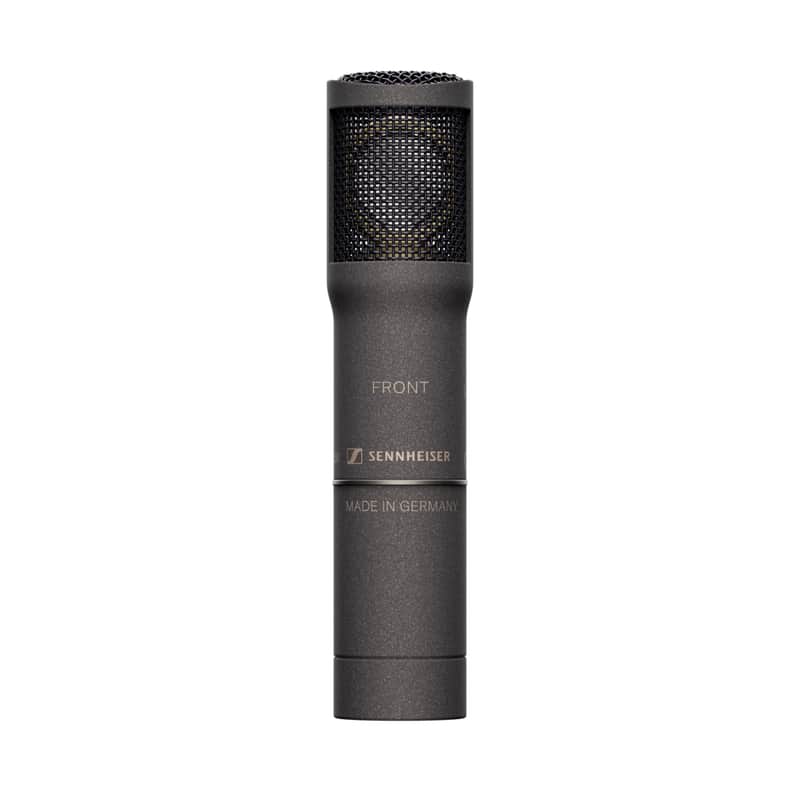

Sennheiser MKH 8030 Condenser Microphone

The MKH 8030 figure-8 microphone allows recording professionals to capture pristine sound over an extended frequency range in nearly any environment. It is ideal for M-S, double M-S, and Blumlein stereo recording options or wherever the highest attenuation of neighboring sound sources is required. This could be a PA system whose sound needs to be eliminated or an adjacent instrument that must not be picked up. Plus, the sound signature of the MKH 8030 has been carefully engineered to blend in harmoniously with the sound of the existing MKH 8000 series microphones.

Like all Sennheiser MKH 8000 series microphones, the MKH 8030 features a symmetrical, acoustically open, push-pull transducer. This remarkable design keeps the sound flow as unrestricted and undistorted as possible, providing a precise polar pattern with minimal off-axis coloration. In combination with a low-tension diaphragm, this design delivers remarkable sensitivity and wide frequency response, so you can capture sound as authentically as possible.

FEATURES:

• Extended bass response
• Extended treble range
• High efficiency and low self-noise
• Clear, consistent sound with no off-axis coloration
• Low non-linear distortion

INCLUDES:

• MKH 8030 Microphone
• MZW 8030 Foam Windshield
• MZQ 8000 Mic clamp
• MZX 8000 XLR Module
• Rycote Back-to-Back clip

SPECIFICATIONS

Pick-Up Pattern: Figure-of-Eight

Frequency Response: 30 - 50,000 Hz

Sensitivity: -31 dBV/Pa (28 mV/Pa)

Max. SPL: 139 dB

Equivalent Noise Level:

• 13 dB(A)
• 21 dB (CCIR)

Phantom Powering: 48 V ±4 V (P48, IEC 61938)

Current Consumption: 3.3 mA

Diameter: approx. 19 mm, max 21 mm

Length: approx. 59 mm

Length with MZX 8000: approx. 93 mm

Weight: approx. 38 g

Weight with MZX 8000: approx. 70
