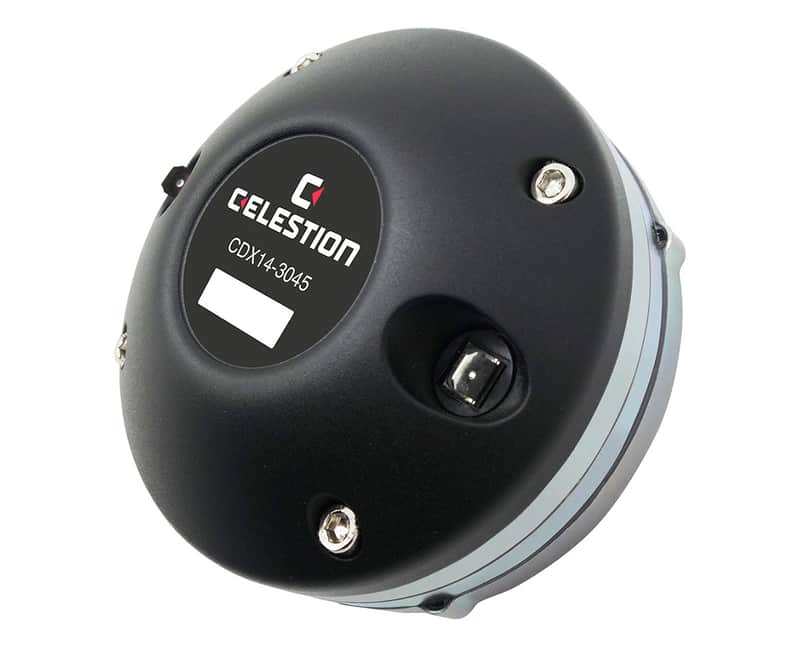

Celestion CDX14-3045 1.4" Exit HF Driver - 8 ohm - Open Box

1.4-inch exit neodymium magnet compression driver

Features

• Single piece titanium diaphragm and surround
• Enhanced surround shape for greater linearity
• High temperature polymer clamp ring minimises distortion
• Power rating : 120W
• Continuous power rating : 240W
• Rated impedance : 8O
• Sensitivity : 108dB
• Frequency range : 500-20,000Hz
• Recommended min. crossover (12dB/oct) : 800Hz
• Magnet type : Neodymium
• Voice coil diameter : 75mm / 3in
• Voice coil material : Edgewound copper clad aluminium
• Diaphragm material : Titanium
• Surround material : Titanium

Mounting Information

• Width : 117mm / 4.6in
• Depth : 59mm / 2.3in
• Fitting : Bolt (4 x M6 holes on 102mm/4in PCD)
• Throat exit : 35mm / 1.4in
• Power rating : Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
• Continuous power rating : Defined as 3dB greater than the AES rating.
• Sensitivity : Measured on axis at 1W, 1m, using typical horn, in 2p anechoic environment.
