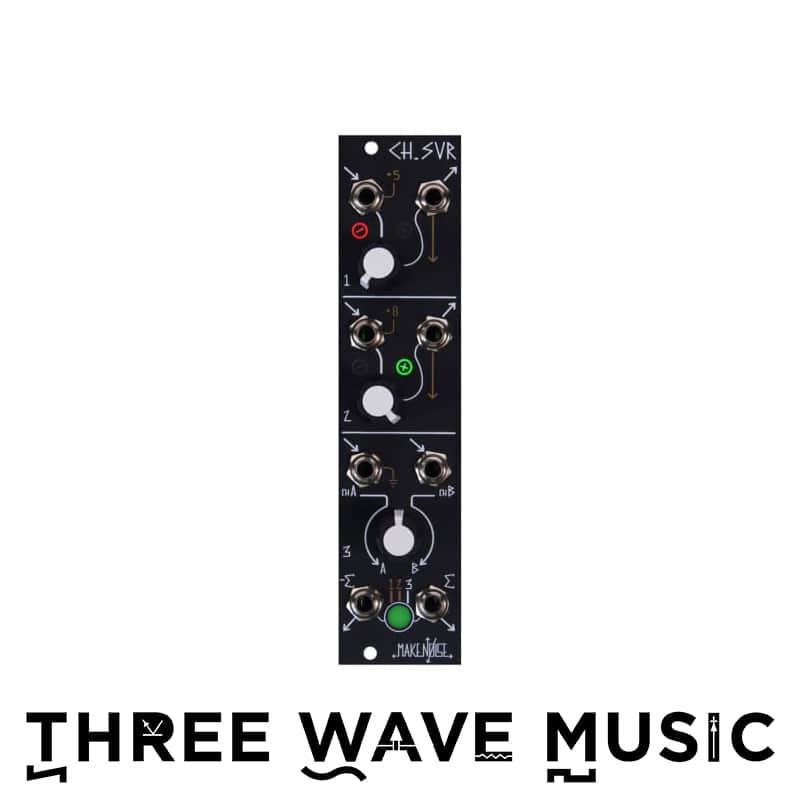

Make Noise Ch.Svr - Channel Saver [Three Wave Music]

The Ch.Svr music synthesizer module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

• Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
• Generate DC offsets when Channel 1 or 2 is unpatched
• Crossfade between two signals, or attenuate one signal, using Channel 3
• SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
• Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
• Anywhere you need more subtle modulation, Ch.Svr is there for you… now all your eurorack slivers may have subtle and intentional modulation they deserve!

• Width: 6hp
• Max Depth
• (incl. power cable): 30mm
• Power:
• 20mA @+12V
• 10mA @-12V
