OMG! THEY’RE BACK! The Bigsby B7 is available now, but in very limited quantities...

This 2 pc Setup combo includes a Bigsby B7, a Vibramate V7-335E for Epiphone and other Imported guitars OR A V&335g for most USA made guitars w/ Semi-Hollow ES335/Dot and Sheraton guitars.

FOR A PROPER FIT YOU MUST MEASURE YOUR GUITAR

FROM CENTER OF STOP TAILPIECE TO END OF GUITAR.

A Figure close to 8" will be a Vibramate V7335e, 8.5" will be a Vibramate V7335g Mount.

Once you got a measured figure - tell us in inches so we send proper a sized mount. Fair enough?

Now you can install a Bigsby B7 Vibrato on your arch top hollow body guitar without drilling any holes! The Vibramate V7-335 Model Mounting Kit is designed for a Bigsby B7 Original Vibrato and will fit most Standard USA and imported ES-335 Sized Arch Top guitars with Stop Tailpiece and Tunematic bridge.

Do your part please and measure from center of stoptail to end of guitar - the e version is 8” whereas the g version is 8.5”. Then tell us your Guitar Make/Model and what measurement # you came up with in inches so we can send you the right mount. OK?

Please ask to add a string spoiler for only $32.50 more. YES, you'll thank me for turning tedious Bigsby string changes from 20 minutes to a 5 minute breeze!!

The Bigsby B7 and Vibramate V7-335 Installs in Minutes with No Drilling! For ArchTop ES type Semi hollow Guitars with a Stop Tailpiece and Tune-A-Matic Bridge. If there seems to be a little bit of room after the kit is assembled at the end of your guitar, have no fear, Vibramate has three different spacers available that are about $15.00

The kit installs in minutes with the included hardware and eliminates the need for drilling holes in your instrument.

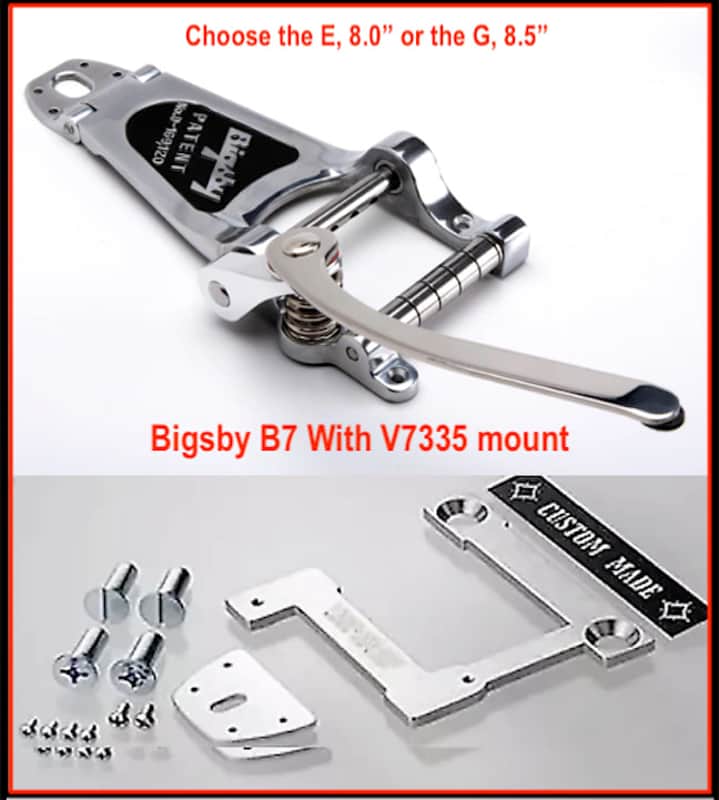

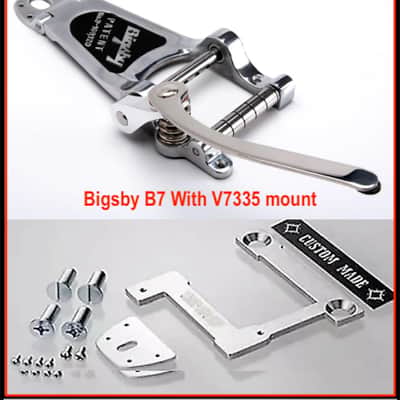

Vibramate V7-335 Kits include the Vibramate V7 mounting plate with felt-pads on the bottom for a soft touch to the top of your guitar. Also include custom made sign.

The Vibramate V7-335 kit includes the strap Plate for mounting the Hinge-Plate of the Bigsby B7 to the Strap Pin hole at the lower end of your guitar.

Vibramate automatically positions the Bigsby Vibrato in the proper orientation and makes a very clean finished appearance with great performance.

The Vibramate Quick Mount Kit includes both English and Metric threaded mounting hardware for either most Import model guitars.

Bigsby B7 Specifications

Model Name: B-7
Series: Original Kalamazoo Line
Manufacturing Method: Sand Cast
Manufacturing Material: Aluminum
Approximate weight: 354 grams/12.5 oz.
Overall Length: 8 ¾" /222.3 mm
Overall Width: 3 ⅝" /92.1 mm
Arm adjusts with ⅛" Allen wrench and 5/16" socket wrench
Designed for use on arch top electric guitars

Guitars shown are not included, or for sale!
Parts only are for sale in this listing.

I'm an expert on guitars and tremolo bar/bridges/parts and this my fun, part time job. You should receive all your ordered items in 3 to 10 business days or quicker
(I am a sales rep and can be on tour for 5 days). If you need something next day or in 2 days, I won't be able to help you. If you want a custom order for a special part, tremolo, pickup(s) or used/rare guitar(s), we will find what you need, justask for a quote and I'll be glad to comply.
