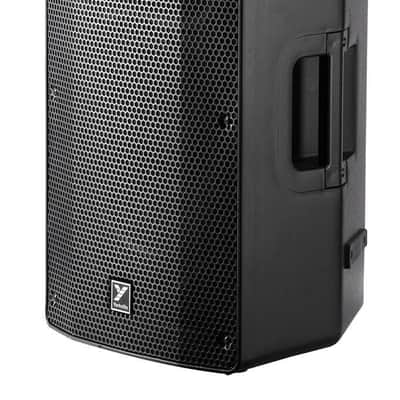

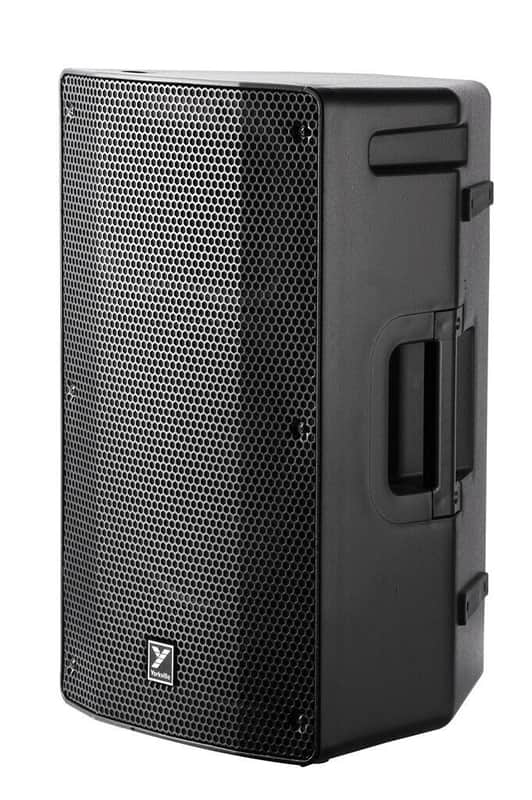

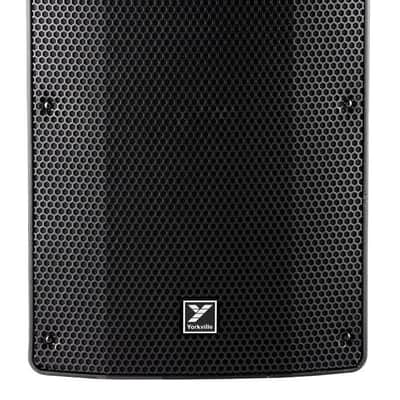

Yorkville Sound YXL12 12" 1200W 2-Way Passive Cabinet PA Speaker / Monitor Wedge

Yorkville YXL12 12" 1200 Watts 2-Way PA / Monitor Passive Cabinet Speaker

The YXL cabinets use a single driver and 90 x 40 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Features

• 600 Watts (Program)
• 8 Ohms
• 12-inch woofer with 2-inch voice coil
• 1-inch compression driver
• 90° x 40° HF dispersion
• Polypropylene cabinet construction

Specifications System Type

• Passive Loudspeaker

Active or Passive

• Passive

Power Rating (Watts)

• 600 Watts Program

Sensitivity (dB @1Watt/1m)

• 98dB

Max SPL (dB)

• 125dB Continuous

Frequency Response (Hz +/- 3dB)

• 47 - 16k (Hz +/-3dB)

Dispersion (°H x °V)

• 90 x 40

Crossover Frequency (Hz)

• 1.6kHz

HF Horn

• Integrated into Baffle

LF Driver(s)

• 12-inch (2-inch voice coil)

Feet

• Rubber

Bar Handles

• 1 x Side / 1 x Back

Flying Hardware

• 2 (Top), 1 (Pull Back)

Optional Flying Hardware

• Yes

Enclosure Materials

• Polypropylene, Metal grille

Baffle Material

• Polypropylene

Grille

• Powder Coated Steel with Grille Cloth

Other Details

• Rubber feet on bottom and side with the monitor Wedge

Dimensions (DWH xbackW, inches)

• 11 x 13.25 x 20.5

Dimensions (DWH xbackW, cm)

• 28 x 33.5 x 52

Weight (lbs/kg)

• 35.5 / 16.1
