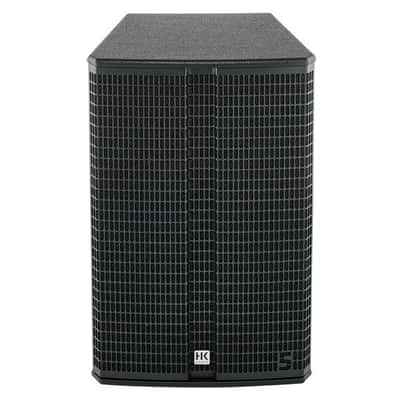

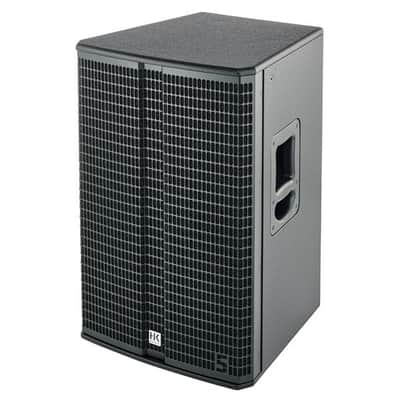

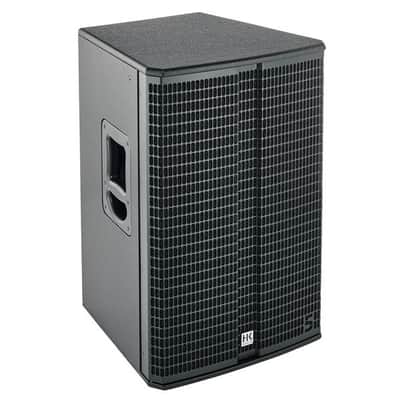

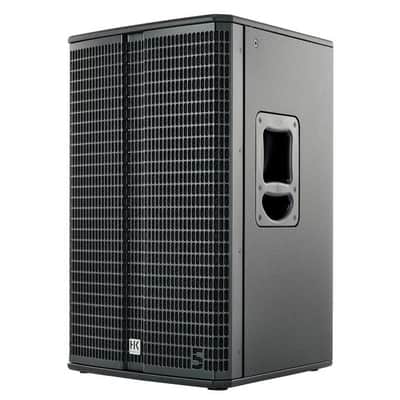

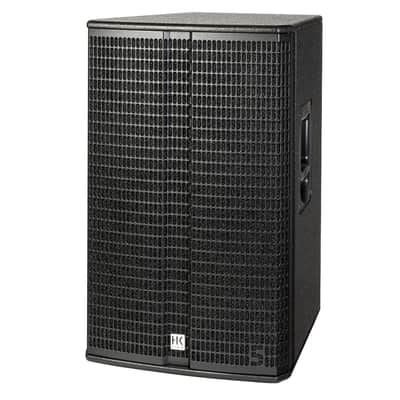

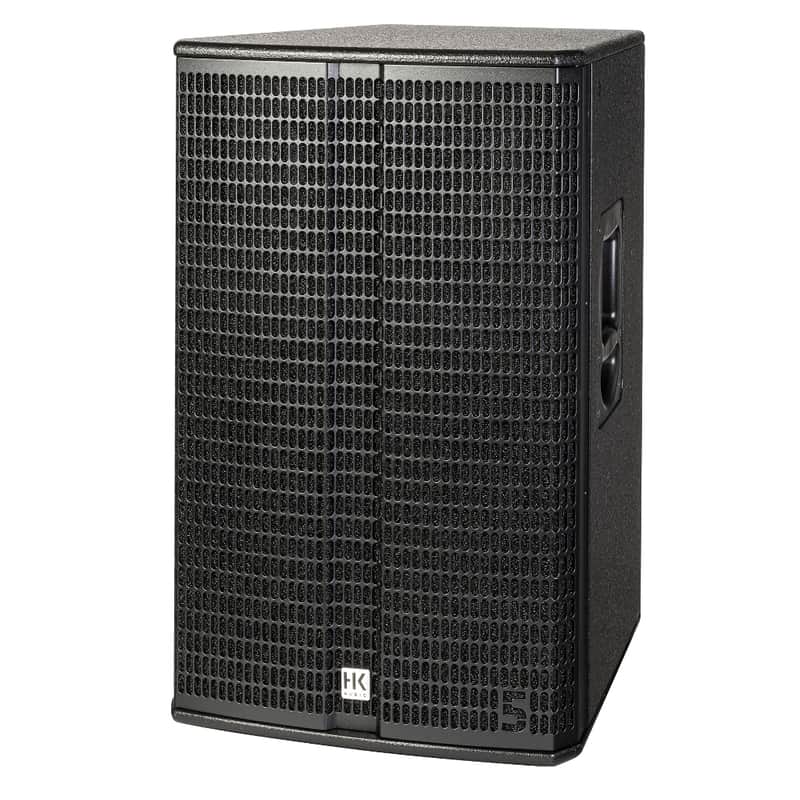

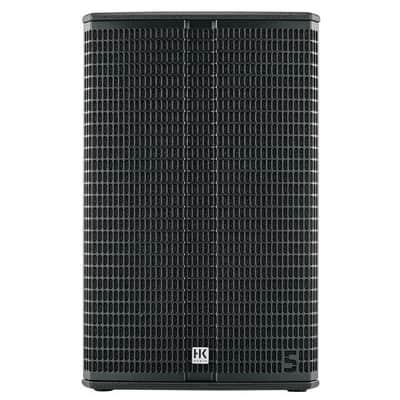

HK Audio LINEAR 5 MK II 115 FA | 1200W 15" 2-Way Powered PA Speaker. New with Full Warranty!

The LINEAR 5 MK II FA models are powerful full-range mid/high units with a transparent, full sound. Due to the longer horns, they achieve impressive throw distances. As a stereo system, the FA models provide the necessary extra low-end and punch. A special filter adapted to the characteristics of the LINEAR 5 MK II subwoofers, which can be selected via a preset, makes it possible to use the LINEAR 5 MK II FA models as system mid/high units with high usable output in various systems in no time at all. The horn dispersion facilitates horizontal and vertical clustering. With optional TB-45N or TB-45NQ tilt brackets attached to the MultiGrips, the FA models can be rigged easily and safely.

SPECS

Max. SPL @ 10 % THD: 130 dB half space (70 Hz – 12 kHz averaged)

Max. SPL Peak @ 10 % THD138 dB half space

Frequency response +/-3 dB: 57 Hz – 12 kHz

Frequency response -10 dB: 54 Hz – 19 kHz

Power amp output (RMS/Peak): 600 / 1,200W

Amplifier type: Class D – bi-amped

Low/mid speaker: 1 x 15", 3" voice coil

HF driver: 1", 1.7" voice coil

Horn characteristics: 60° x 40° CD horn, rotatable

Active x-over frequency: 1.6 kHz FIR X-over with 72 dB/oct.

Maximum input level: 20 dBu

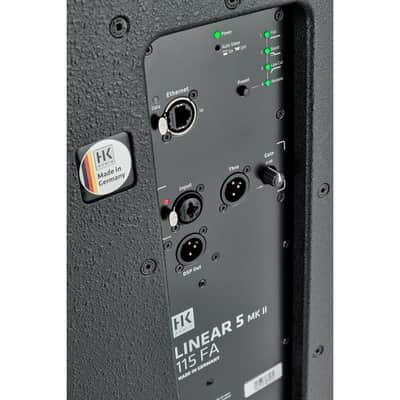

Analogue inputs1: x XLR combo balanced

Analogue Thru: 1 x XLR balanced

DSP Out: 1 x XLR balanced

Network port: EtherCON RJ45, 1 x In

Filter presets: Flat, Boost, Low Cut, Remote

Remote softwareDSP CONTROL (Windows, Mac OS)

DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Sample rate: 48 kHz

System latency: Less than 2 ms

Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V

Power consumption: 1 A / 100–240 V nominal according to EN 62368-1

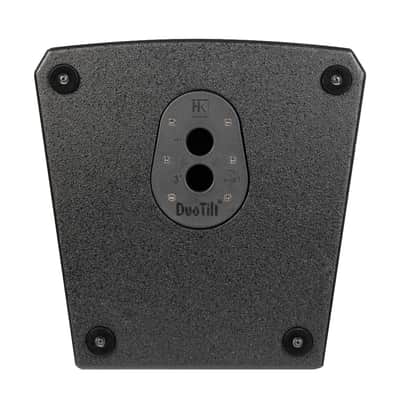

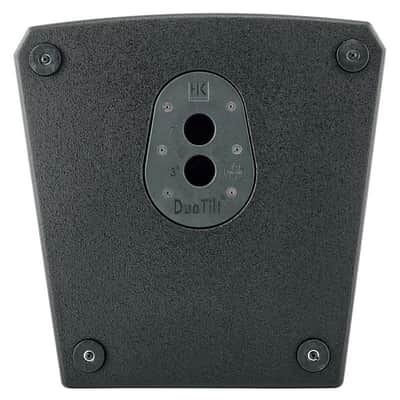

Pole mount: DuoTilt 3°/7°

Rigging points: 3x M8 (AP-8)

Carrying handles: 2 x MultiGrip

Housing: Hybrid (birch multiplex/MDF)

Surface: Black acrylic enamel

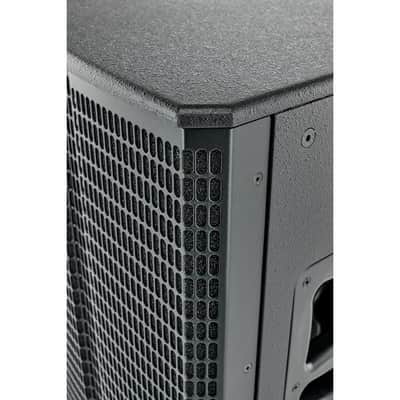

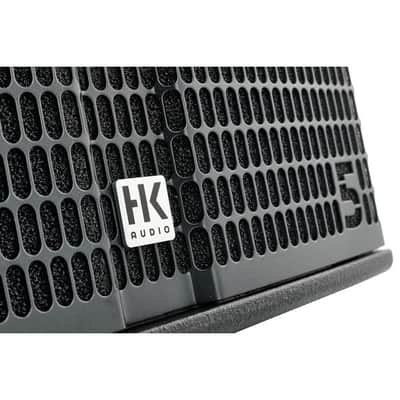

Front grille: 2 mm metal grille backed with black acoustic foam

Dimensions (WxHxD): 44.8 x 70.7 x 44.75 cm 17-2/3 x 27-4/5 x 17-2/3"

Weight: 30.2 kg / 66.47 lbs
