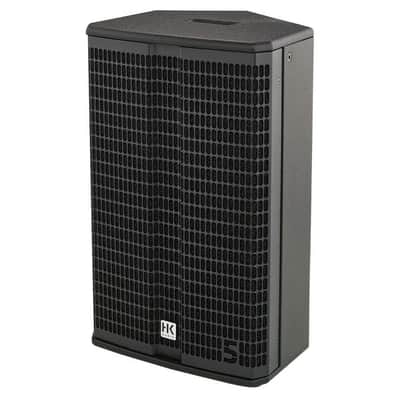

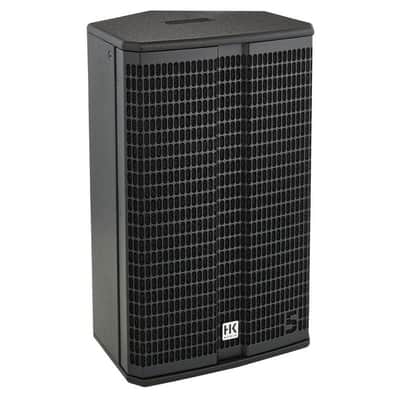

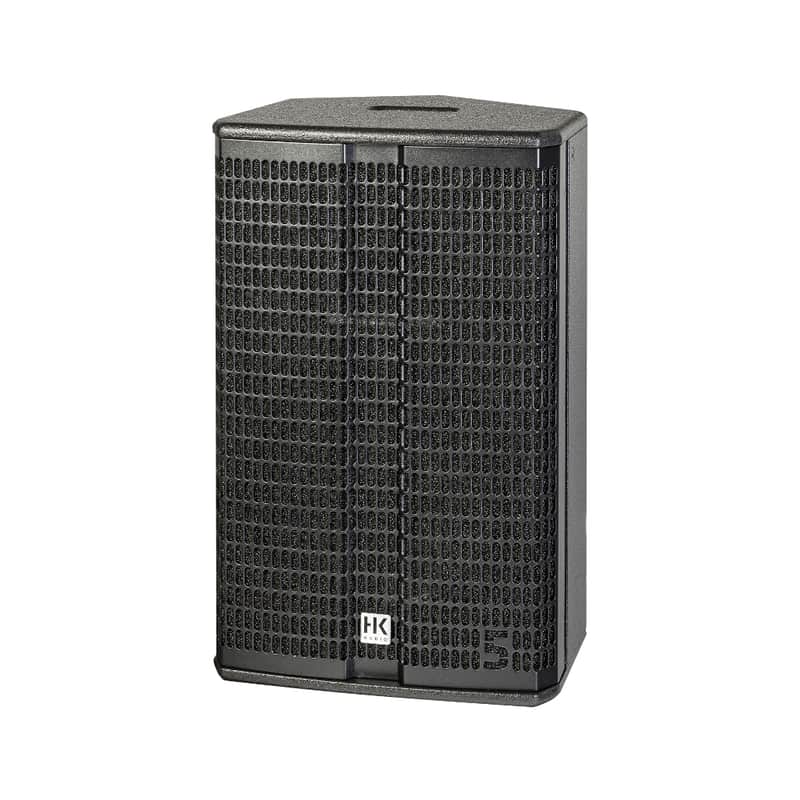

HK Audio Linear 5 MKII 112 XA | 12" 2-Way Powered PA Speaker. New with Full Warranty!

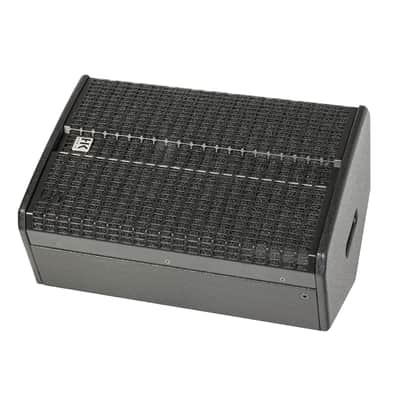

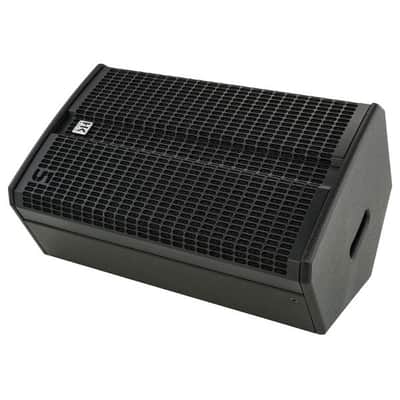

The LINEAR 5 MK II XA models are compact, flexible, multifunctional mid/high units with impressive range and crystal clear, assertive sound. Due to the multifunctional enclosure shape with slanted monitor edge, they can be operated as low-feedback stage monitors or as powerful mid/high system units in conjunction with the subwoofers. The rotatable horns ensure optimal dispersion even when used on their side – although rotating the horn is not strictly necessary with the 110 XA and 112 XA due to the narrow dispersion angles. Even on small and narrow stages, precise sound coverage is possible without any problems.

SPECS
Max. SPL @ 10 % THD: 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10 % THD: 136 dB half space
Frequency response +/-3 dB: 73 Hz – 12 kHz
Frequency response -10 dB: 67 Hz – 19 kHz
Power amp output (RMS/Peak): 600 / 1,200 W
Amplifier type: Class D – bi-amped
Low/mid speaker: 1 x 12", 2.5" voice coil
HF driver: 1", 1.7" voice coil
Horn characteristics: 80° x 60° CD horn, rotatable
Active x-over frequency: 1.9 kHz FIR X-over with 72 dB/oct.
Maximum input level: 20 dBu
Analogue inputs: 1 x XLR combo balanced
Analogue Thru: 1 x XLR balanced
DSP Out: 1 x XLR balanced
Network port: EtherCON RJ45, 1 x In
Filter presets: Flat, Monitor, Low Cut, Remote
Remote software: DSP CONTROL (Windows, Mac OS)
DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate: 48 kHz
System latency: Less than 2 ms
Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V
Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
Setup angle: 31°

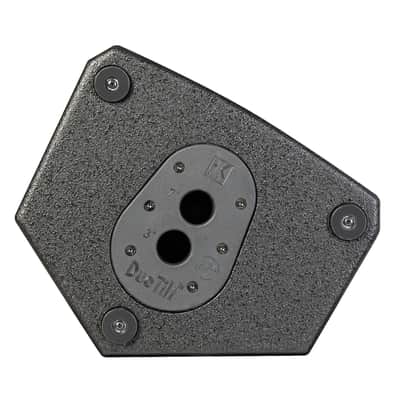

Pole mount: DuoTilt 3°/7°
Rigging points: 3x M8 (AP-8)

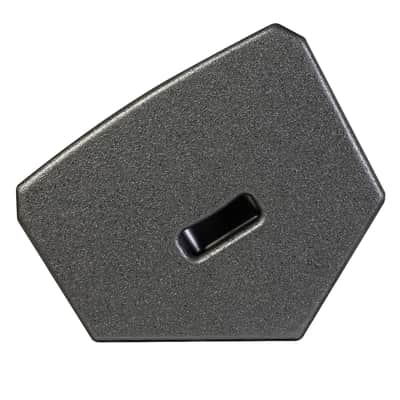

Carrying handles: 2 x SingleGrip
Housing: Hybrid (birch multiplex/MDF)
Surface: Black acrylic enamel

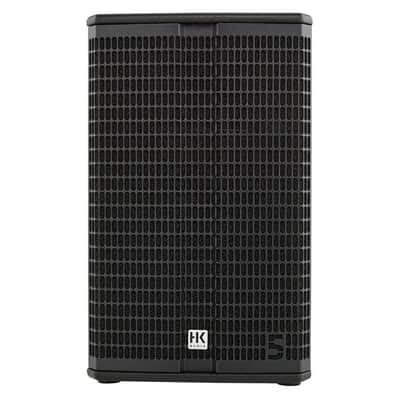

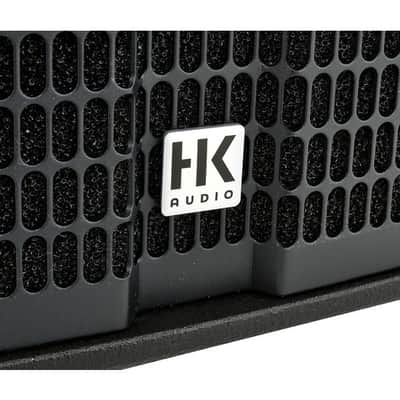

Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 36 x 59 x 30.5 cm 14-1/16 x 23-15/64 x 12-1/32"
Weight: 17.6 kg / 38.80 lbs
