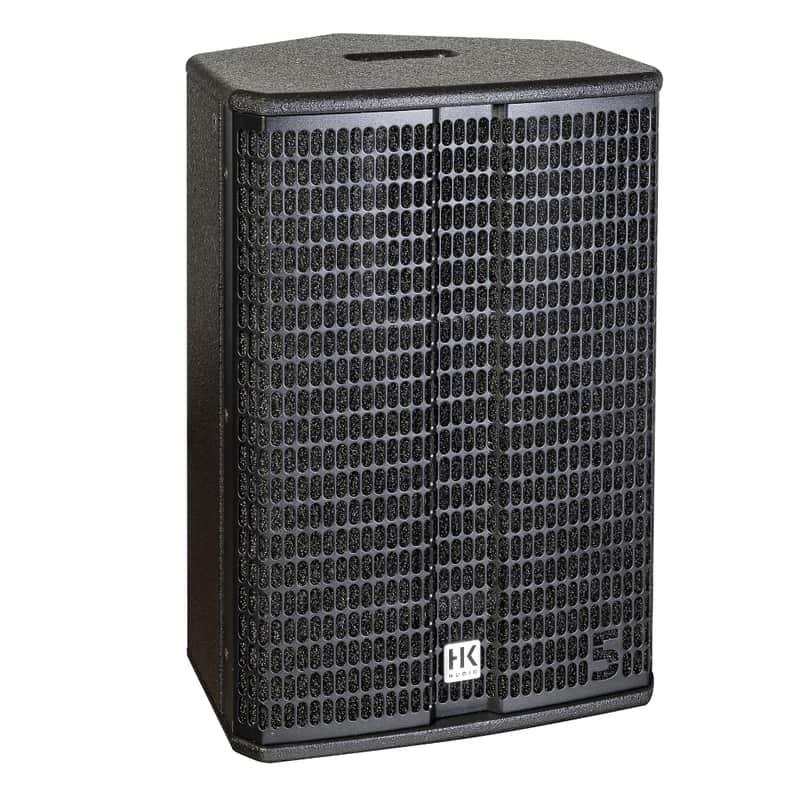

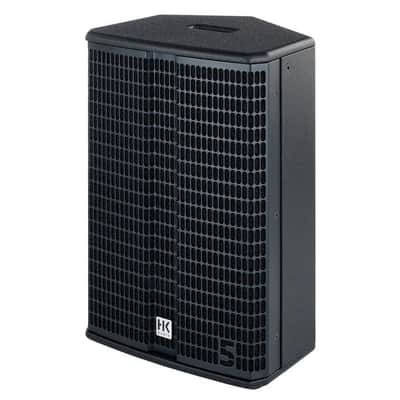

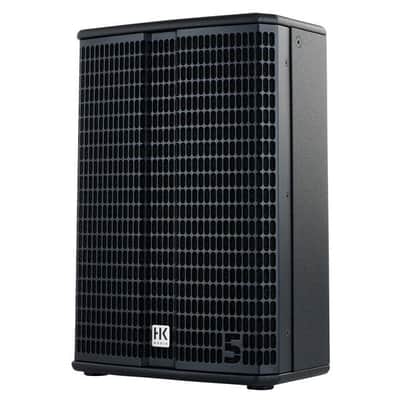

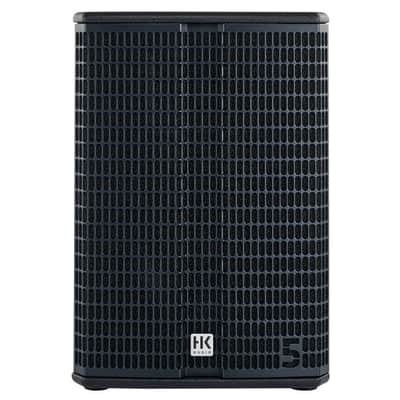

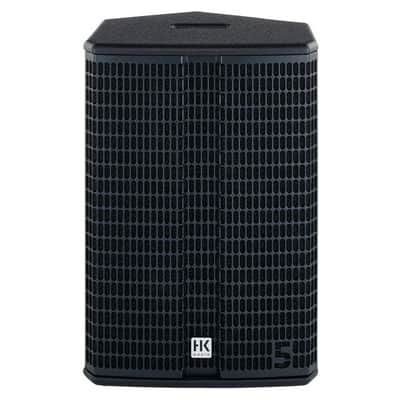

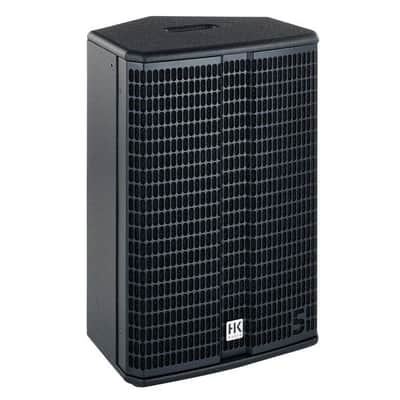

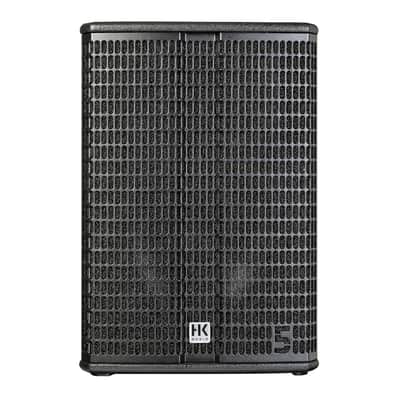

HK Audio Linear 5 MkII 110 XA | 10" 2-way 1200W Powered PA Speaker. New with Full Warranty!

The LINEAR 5 MK II XA models are compact, flexible, multifunctional mid/high units with impressive range and crystal clear, assertive sound. Due to the multifunctional enclosure shape with slanted monitor edge, they can be operated as low-feedback stage monitors or as powerful mid/high system units in conjunction with the subwoofers. The rotatable horns ensure optimal dispersion even when used on their side – although rotating the horn is not strictly necessary with the 110 XA and 112 XA due to the narrow dispersion angles. Even on small and narrow stages, precise sound coverage is possible without any problems.

SPECS

Max. SPL @ 10 % THD: 127 dB half space (70 Hz – 12 kHz averaged)

Max. SPL Peak @ 10 % THD: 135 dB half space

Frequency response +/-3 dB: 74 Hz – 12 kHz

Frequency response -10 dB: 68 Hz – 19 kHz

Power amp output (RMS/Peak): 600 / 1,200 W

Amplifier type: Class D – bi-amped

Low/mid speaker: 1 x 10", 2" voice coil

HF driver: 1", 1.4" voice coil

Horn characteristics: 80° x 60° CD horn, rotatable

Active x-over frequency: 2.1 kHz FIR X-over with 72 dB/oct.

Maximum input level: 20 dBu

Analogue inputs: 1 x XLR combo balanced

Analogue Thru: 1 x XLR balanced

DSP Out: 1 x XLR balanced

Network port: EtherCON RJ45, 1 x In

Filter presets: Flat, Monitor, Low Cut, Remote

Remote software: DSP CONTROL (Windows, Mac OS)

DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Sample rate: 48 kHz

System latency: Less than 2 ms

Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V

Power consumption: 1 A / 100–240 V nominal according to EN 62368-1

Setup angle: 31°

Pole mount: DuoTilt 3°/7°

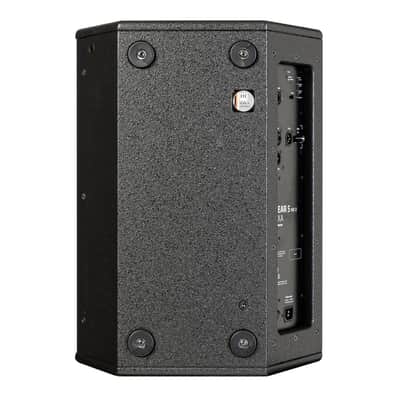

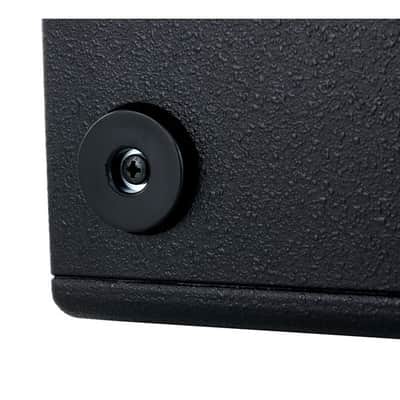

Rigging points: 3x M8 (AP-8)

Carrying handles: 1 x SingleGrip

Housing: Hybrid (birch multiplex/MDF)

Surface: Black acrylic enamel

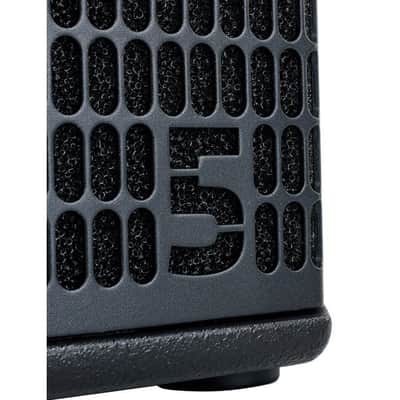

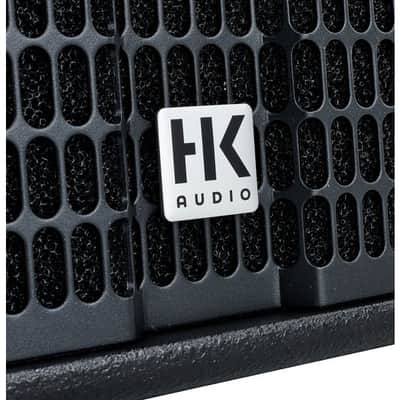

Front grille: 2 mm metal grille backed with black acoustic foam

Dimensions (WxHxD): 36 x 52.5 x 30 cm 14-1/16 x 20-43/64 x 11-13/16"

Weight: 14.9 kg / 32.85 lbs
