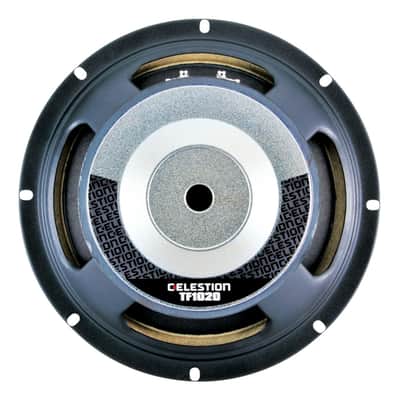

Celestion TF1020 10" Low Frequency Speaker - 8 ohm
This seller has not set a shipping cost for Portugal. Please contact them to ask about shipping.
Price€93.05
Incl. VAT
+ Shipping
Only 1 left
Grab it before it's gone
Listed:over a month ago
Views:61
Saves:1
Brooklyn, NY, United States
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
10" Replacement Speaker (8-ohm)
Features
- Nominal diameter : 254mm / 10in
- Power rating : 150W
- Continuous power rating : 300W
- EIA power rating : 250W
- Rated impedance : 8O
- Sensitivity : 97dB
- Frequency range : 60-5500Hz
- Chassis type : Pressed steel
- Magnet type : Ferrite
- Voice coil diameter : 50mm / 2in
- Voice coil material : Round copper
- Former material : Polyimide
- Cone material : Kevlar loaded paper
- Surround material : Cloth-sealed
- Suspension : Single
- Gap height (Hg) : 8mm / 0.31in
- VC winding height (Hvc) : 12mm / 0.47in
- Additional impedances : 4O
Parameters
- Sd : 346.36cm2 / 53.69in2
- Fs : 69.40Hz
- Mms : 31.10g / 1.10oz
- Qms : 2.454
- Qes : 0.372
- Qts : 0.323
- Re : 5.45O
- Vas : 28.75l / 1.02ft3
- BI : 14.10Tm
- Cms : 0.17mm/N
- Le (at 1kHz) : 0.60mH
- Xmax : 4mm / 0.16in
Mounting Information
- Overall diameter : 256mm / 10.08in
- Overall depth : 110mm / 4.3in
- Cut-out diameter : 229mm / 9.02in
- Mounting hole dimensions : 8x6mm / 0.31x0.24in
- Number of mounting holes : 4
- Mounting hole PCD : 245mm / 9.65in
- Power rating : Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power is calculated on minimum impedance. Loudspeaker tested in free air.
- Continuous power rating : Defined as 3dB greater than the AES rating.
- Sensitivity : Measured on axis at 1W, 1m in 2p anechoic environment.
- Parameters : Measured after unit subjected to pre-conditioning signal.
- Xmax : 0.5(Hvc-Hg) + 0.25Hg
