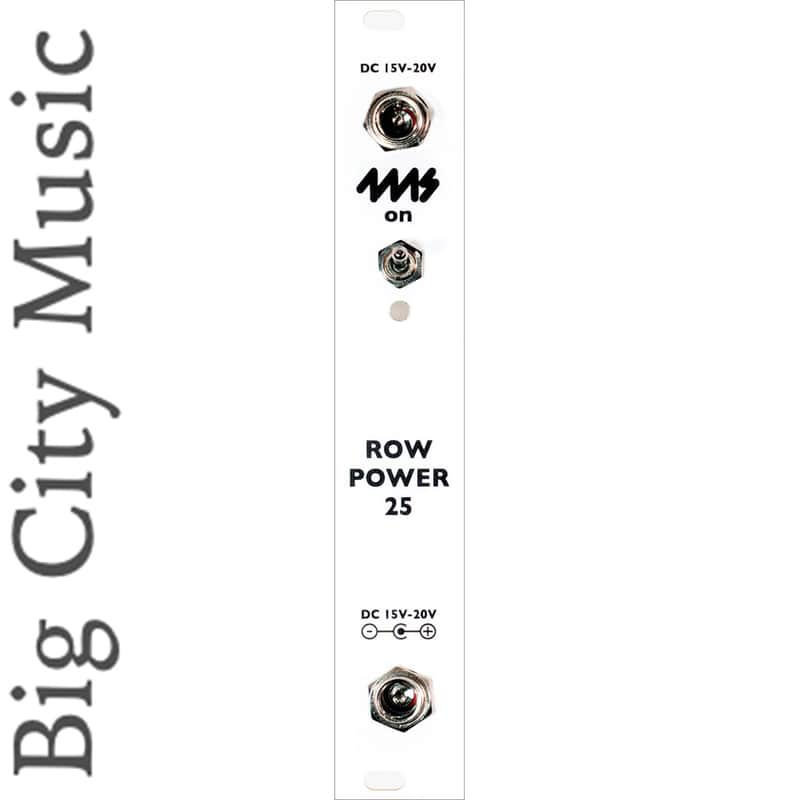

The Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15V - 20V DC; we recommend our 90W power brick) and supplies power to modules via flying bus cables, direct connection, and/or bus boards.

The Row Power 25 provides 25W of power for any eurorack modules (typically 4-10 modules*):

  • +12V @ 1.4A maximum, 1.0A recommended
  • -12V @ 0.8A maximum, 0.5A recommended
  • +5V @ 1.0A maximum, 0.8A recommended

*number of modules can vary depending on each module's power consumption.

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be daisy-chained to Pods. Each Row Power and Pod will be independently regulated and protected for ultra-low cross-talk between rows.

Basic Features:

  • Two power jacks for daisy-chaining multiple Row Powers and Pods: a common laptop-style power brick could power 3-5 rows (typical)
  • On/off switch cuts power without interrupting the daisy-chain
  • LED light indicates module is on
  • Row Power 25 typically will provide enough power for 4-10 modules (this can vary, based on each module's power consumption)
  • Row Power 25 is efficient, so it won't heat up your system.
  • Skiff-friendly: only 25.6mm (1.01") with power connector installed.
  • Includes set of easily soldered holes for custom distribution systems (by soldering wires or MTA156 connectors)

Specs

Electrical and Mechanical Specifications:

  • Module Size:
    • 4 HP Eurorack format module
  • Power Output:
    • +12V @ 1.4A maximum, 1.0A recommended
    • -12V @ 0.8A maximum, 0.5A recommended
    • +5V @ 1.0A maximum, 0.8A recommended
  • Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Maximum power output can be expected under normal operating conditions. Recommended power output is guaranteed under extreme temperature and limited airflow conditions.

Included with the Row Power 25:

  • (2) M3 Knurlie screws

Required (not included):

  • 15V - 20V DC power brick or barrel jumper cable to daisy-chain from a powered Pod or Row Power
  • Flying-bus cables, Bus Stick or other distribution system (for connecting Row Power 25 to multiple modules)

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Row Power 25 [RP25]
