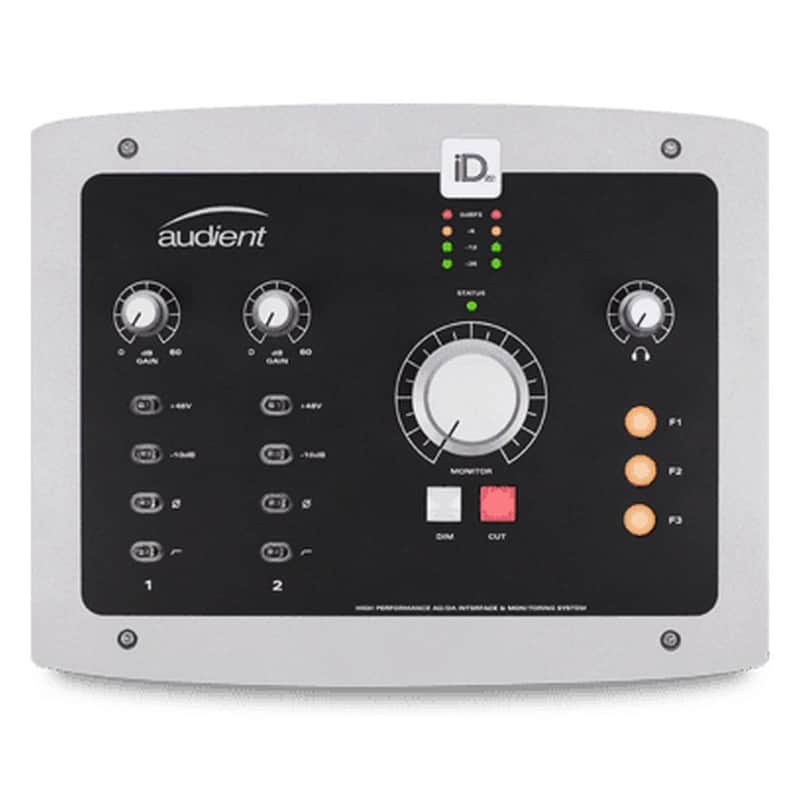

Audient iD22 | 2 Channel USB2 Interface Monitoring System
Free Shipping
from Santa Fe Springs, CA
Our users rate Reverb
2 Channel USB2 Interface Monitoring System
iD22 delivers the audio performance of a large format console in a compact and elegant desktop package. Providing a pair of Audient console mic pres, class-leading Burr Brown converter technology, console style monitor control, JFET D.I, ADAT expandability, user defined function keys, balanced inserts and more, iD22 will become the hub of your studio in no time.
Key Features
- 10-in, 14-out Desktop Interface
- 2 x Class-A Audient Console Mic Preamplifiers
- High Performance Burr Brown AD/DA Converters
- Fully Balanced Inserts
- ADAT Input & Output for Expandability
- 1 x Discrete JFET Instrument Input
- Low Latency DSP Mixer
- Main and Alternative Speaker outputs
- Independent Class-AB Headphone Output
- User Defined Function Keys
- Full Monitor Control Functionality (software controlled)
- USB2.0 Compliant
- 24bit/96khz
- All-Metal Enclosure
Technical Specifications
MICROPHONE PREAMPLIFIER
MIC GAIN
-10 to +60 dB (-10dB Pad)
LINE GAIN
-20 to +40 dB (-10dB Pad)
PHANTOM POWER
48v +/-4v @ 10mA/Channel
MIC EIN
<-125dBu
CMRR
>80dB @ 1kHz
MAXIMUM INPUT LEVEL
+22dBu (+32dBu with Pad)
INPUT IMPEDANCE (Mic)
>3k Balanced
INPUT IMPEDANCE (Line)
>10k Balanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to 100kHz
CROSSTALK
<-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz)
0.0015% (-96dBu)
SNR
96dB
HPF
-3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4†JACK
TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I (Channel 1)
D.I GAIN
-16 to +54 dB (-10dB Pad)
MAXIMUM INPUT LEVEL
+16dBu (typical), +22dBu
INPUT IMPEDANCE
1Meg? Unbalanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz)
<0.03% (-70dBu)
SNR
93dB
1/4†JACK
TIP (Hot) & SLEEVE (Shield)
Dimensions
Height
181mm
Width
227mm
Weight
1 lb
