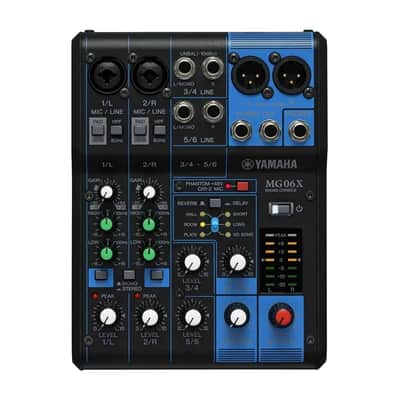

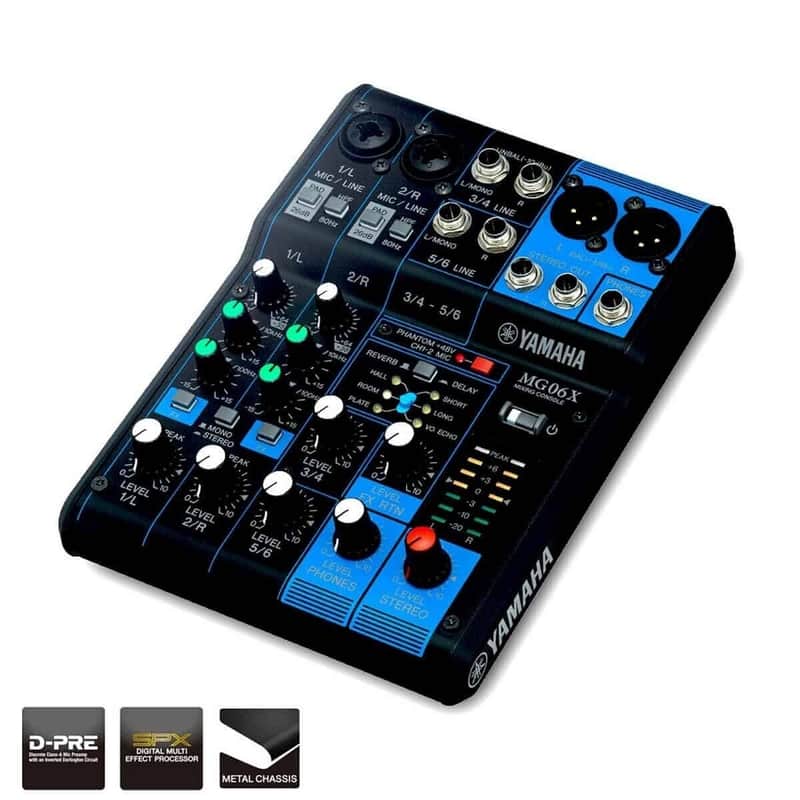

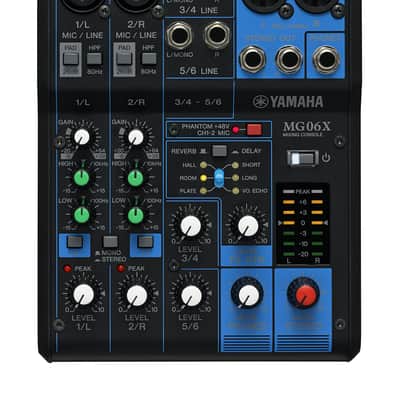

The third generation of the acclaimed MG Series, these compact mixing consoles focus on delivering high quality sound for a diverse range of mixing environments. With the same mic preamps as our high-end professional mixers, the MG Series provides serious sound with the reliability and performance this series is renowned for.

Key Features

• 6-Channel Mixing Console
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• “D-PRE†mic preamps with an inverted Darlington circuit
• High-grade effects: SPX with 6 programs

Technical Specs

Mixing capability On-board processors     SPX algorithm: 6 programs
I/O   Phantom power     +48 V
Input Channels    Mono[MIC/LINE]    2
Stereo[LINE]      2
Output Channels   STEREO OUT  2
PHONES      1
Bus   Stereo: 1
Input Channel Function  PAD   26 dB (Mono)
HPF   80 Hz, 12 dB/oct (Mono)
EQ HIGH     (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW      (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED    LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
