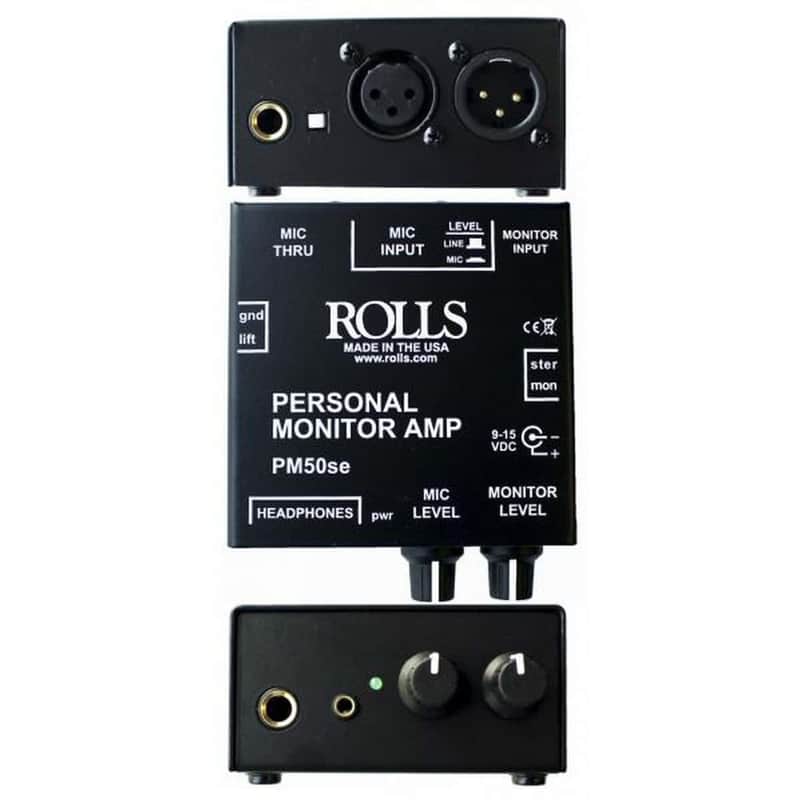

The PM50se mixes a stereo or mono line-level Monitor signal with a microphone or line level XLR signal to a set of headphones. It has a monitor level control, mic/XLR level control, mic/line pass through XLR jack, two headphone output jacks, and a stereo or mono TRS or TS 1/4†monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, podcast, recording or many other applications. The power adapter is included.

Key Features

• Mic or Line Level XLR input

• XLR Mic or Line Pass Thru

• Ground Lift on XLR Thru

• Mono or Stereo 1/4†Monitor Input

• 1/4†and 1/8†Phone Outputs

Technical Specifications

Inputs
-20 dB max XLR 1K balanced, 20 dB monitor
Outputs
1/4â€, and 1/8†(3.5mm) 8 ohm or greater
Gain
20 dB 1/4â€, 50 dB XLR
Frequency Response
3Hz to 100kHz
S/N Ratio
90 dB
Size
3†X 2.5†X 1.25â€
Weight
1 lb (.45 kg)
Current drain 60ma nominal no load 15vdc
