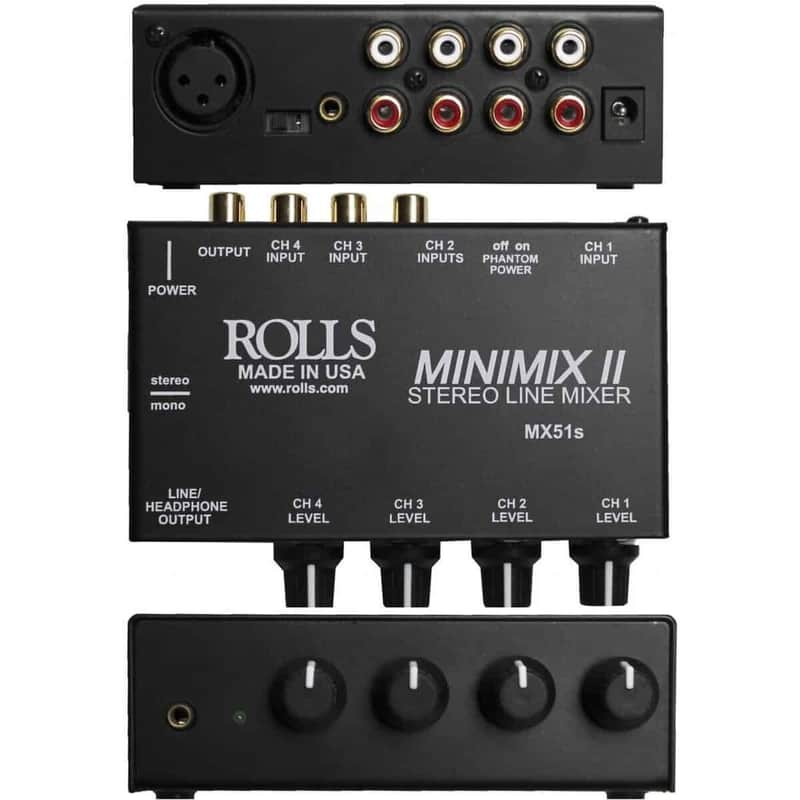

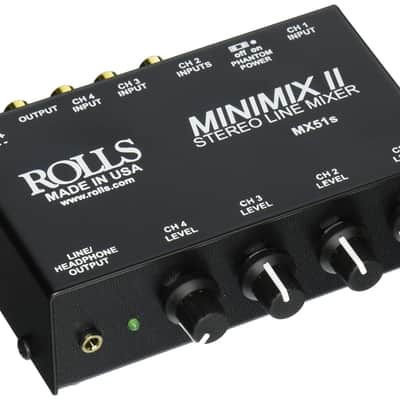

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27s 15V adapter.

Key Features

• For mixing a microphone XLR input with up to three RCA input signals

• XLR phantom power available.

• Four channels total

• Line / Headphone output level

• ROLLS PS27 AC adapter included

• Stereo RCA Line-Level Output

Technical Specifications

Power
ROLLS PS27s adapter
CH 1 Gain
32 dB XLR jack (highest gain)
Phantom Power
for CH 1 microphone XLR
Ch2 Gain
26 dB 1/8" and RCA
Ch 3 and 4 Gain
26 dB each RCA
Output
1/8" stereo and stereo RCA
S/N Ratio
>90 dB
THD
<.008%
IMD(SMPTE)
<.008%
Input Impedance
10K Ohms unbalanced each jack
Size
3" x 5" x 1.25" (8 x 13 x 3.2 cm)
Weight
1 lbs. (.45 Kg)
