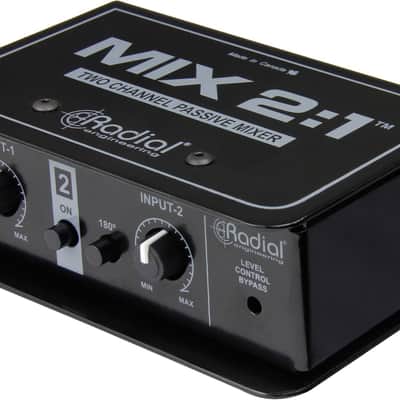

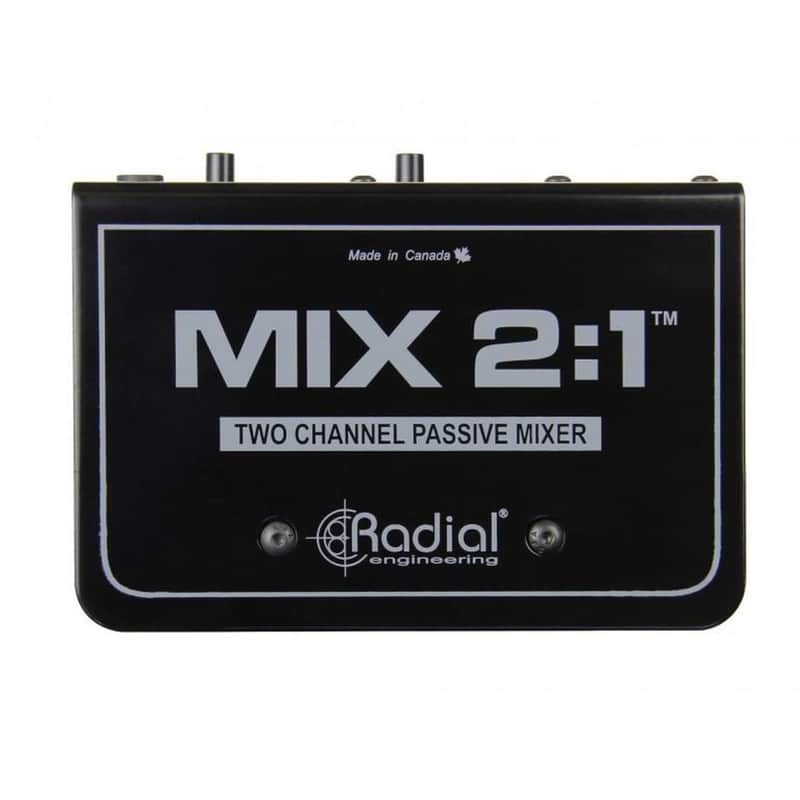

Radial MIX 2:1 2-Channel Summing Mixer
This seller has not set a shipping cost for Hungary. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The MIX 2:1 is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono, or to mix any two signals together and balance their relative input levels.
Key Features
- Mix two channels to a single mono output
- Individual level controls can be bypassed when not in use
- Balanced 1/4 TRS and XLR inputs
- Completely passive, no need for power
Technical Specifications
Audio circuit type
Passive mixer
Frequency response
20Hz to 20kHz
Dynamic range
>133dB
Total harmonic distortion
>0.005% @ 0dBu
Intermodulation Distortion
>0.002% @ 0dBu
Phase Deviation
0 deg @ 20Hz, 0 deg @ 1kHz, +2 deg @10kHz
Input Impedance
8 k OHM
Output Impedance
1 k OHM
Common Mode Rejection Ratio
>80dB
Noise
-113dBu
Maximum Input
>+ 20dBu
Features
180 deg polarity reverse, Ground lift, Level Control
Input Connectors
1/4", XLR
Output Connectors
XLR
Construction
14-gauge steel chassis and outer shell
Size (L x W x D)
5" x 3.25" x 1.85" (12.7 x 8.3 x 4.7cm)
Weight
1.48lb (0.67kg)
Shipping size (L x W x D)
6.25" x 4.12" x 3" (15.9 x 10.5 x 7.6cm)
Shipping weight
1.77lb (0.8kg)
Power
Passive, no power required
Conditions
For use in dry locations only between 5 deg C and 40 deg C
Warranty
Radial 3-year, transferable
